KASINTON JSD50ASV Digital Infrared Temperature Sensor 0~500℃ Range 4-20mA IP65 Plastic Body Stainless Steel Probe OEM/ODM
- Overview
- Related Products

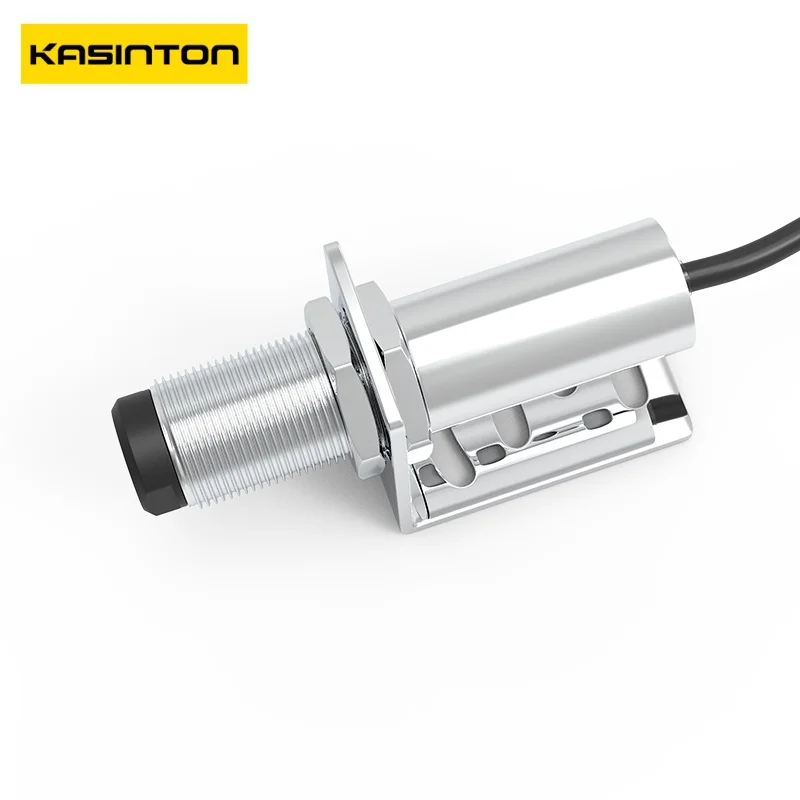

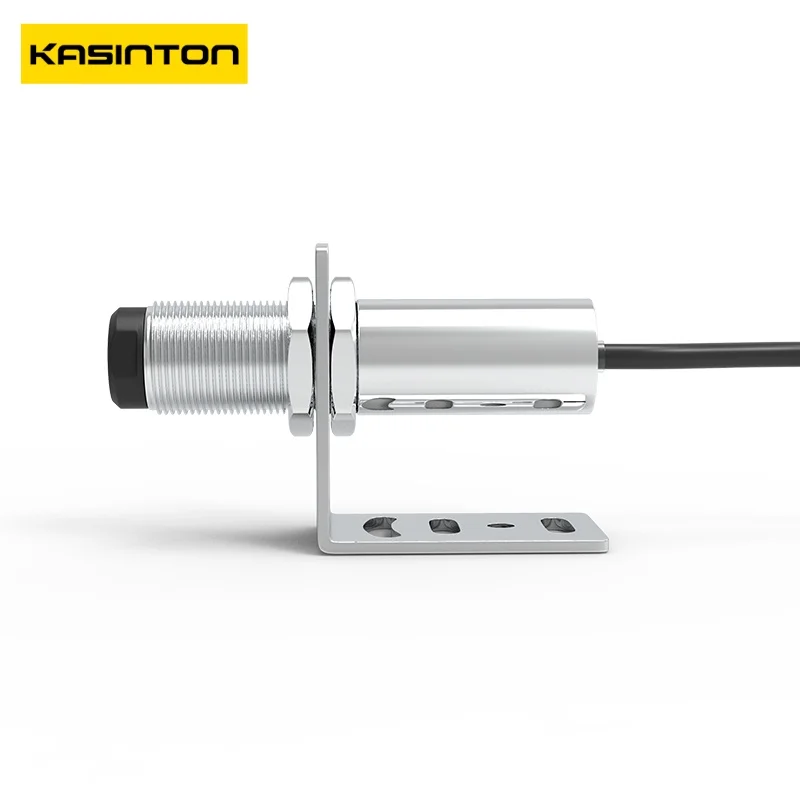

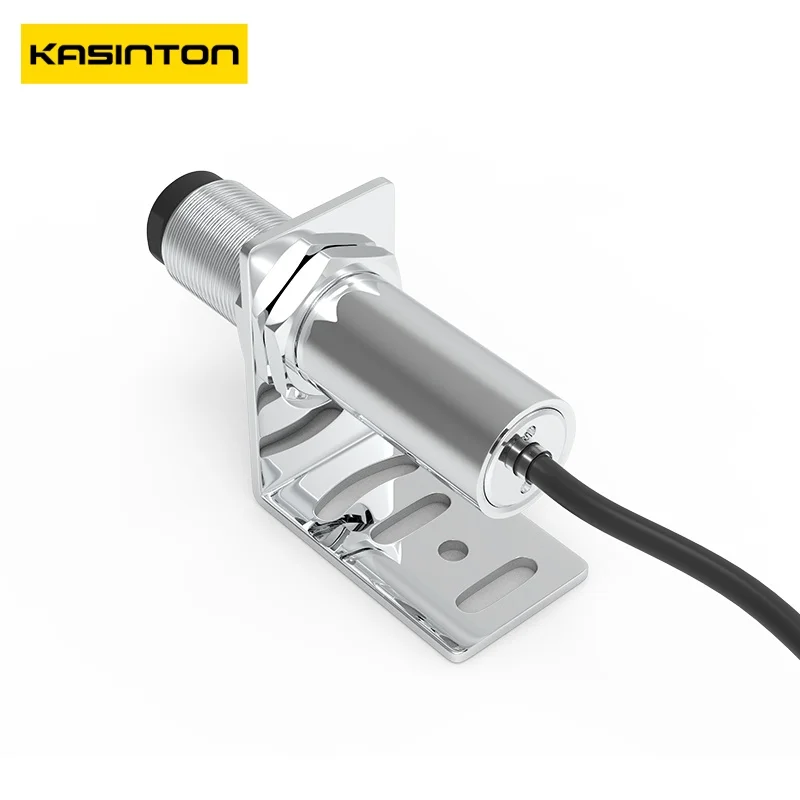

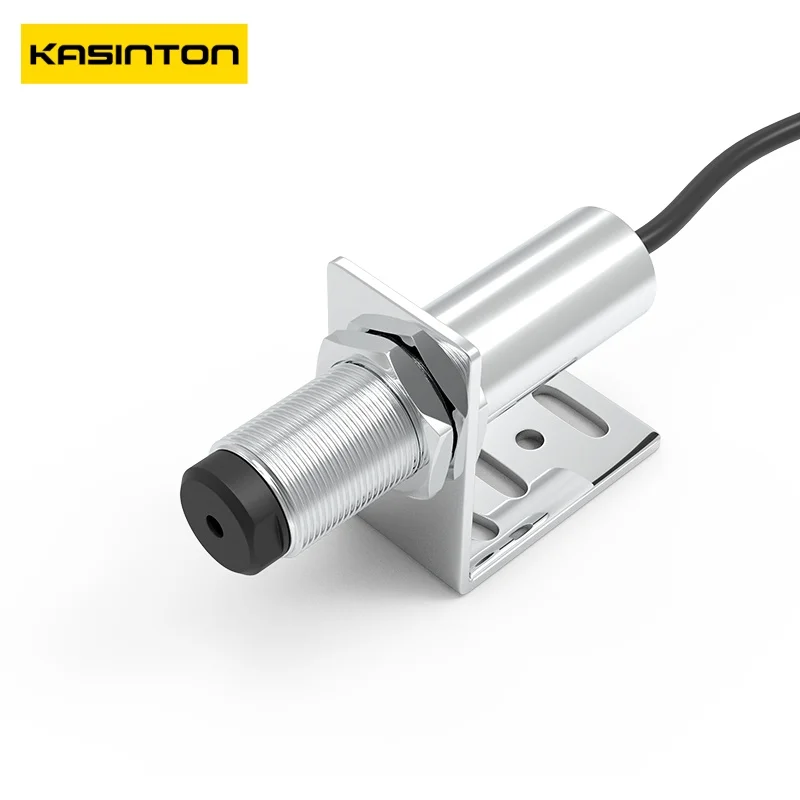

KASINTON JSD50ASV Digital Infrared Temperature Sensor
0℃ ~ 500℃ Range | 4-20mA Output | IP65 | Plastic Body | Stainless Steel Probe | OEM & ODM Supported
The KASINTON JSD50ASV is a high-performance digital infrared temperature sensor designed for precise, non-contact temperature measurement across a wide range of 0℃ to 500℃. Its stainless steel probe and IP65-rated plastic body make it the ideal solution for industrial applications, including manufacturing, process control, and equipment monitoring.
With a 4-20mA output, this sensor integrates seamlessly into automated systems and PLC controls for continuous temperature monitoring. The durable plastic housing offers excellent protection against dust and water, while the stainless steel probe ensures accurate and reliable measurements even in harsh environments.
🌟 Key Features:
Temperature range: 0℃ ~ 500℃
Non-contact infrared measurement for safe and efficient temperature readings
4-20mA output for easy connection with control systems and data loggers
IP65 protection — dustproof and water-resistant for industrial use
Plastic body and stainless steel probe for durability and precision
OEM & ODM customization available for specific needs, including branding and technical specifications
The JSD50ASV is a versatile, highly reliable solution for temperature measurement, offering the flexibility and precision required in demanding industrial environments.
Protection class |
IP65 (NEMA-4) |
Ambient temperature |
0-60°C |
Storage temperature |
-20-80°C |
Relative humidity |
10 -95% (non-condensing) |
Material |
stainless steel |
Cable length |
1.5m or customized |
Spectral range |
8-14 µm |
Temperature range |
-20~600℃ |
Optical resolution |
8:1 |
Response time |
150 ms |
Temperature measurement accuracy |
± 1%or ± 1 ℃ |
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
