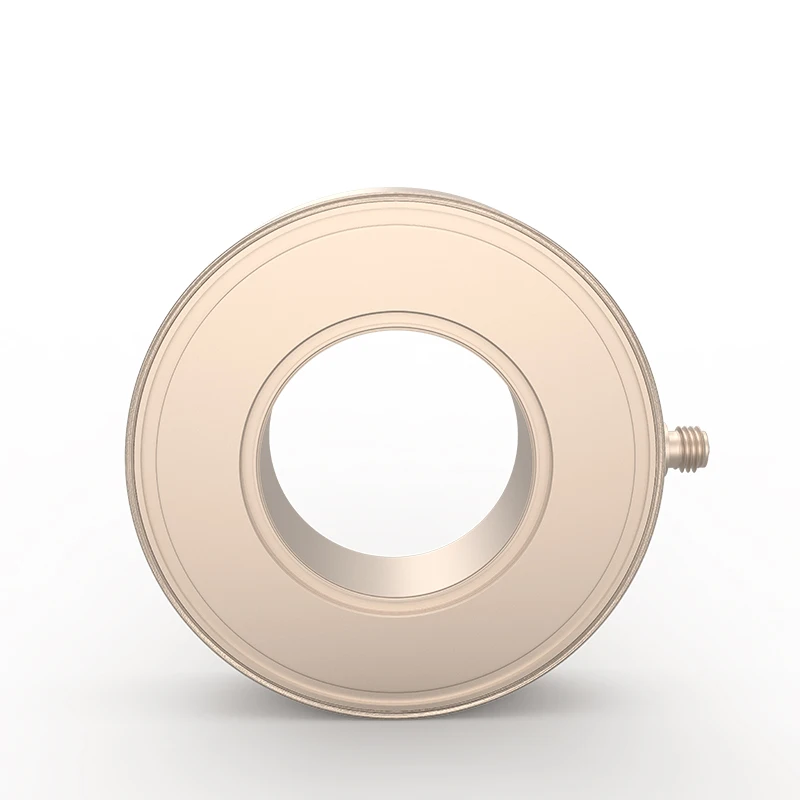

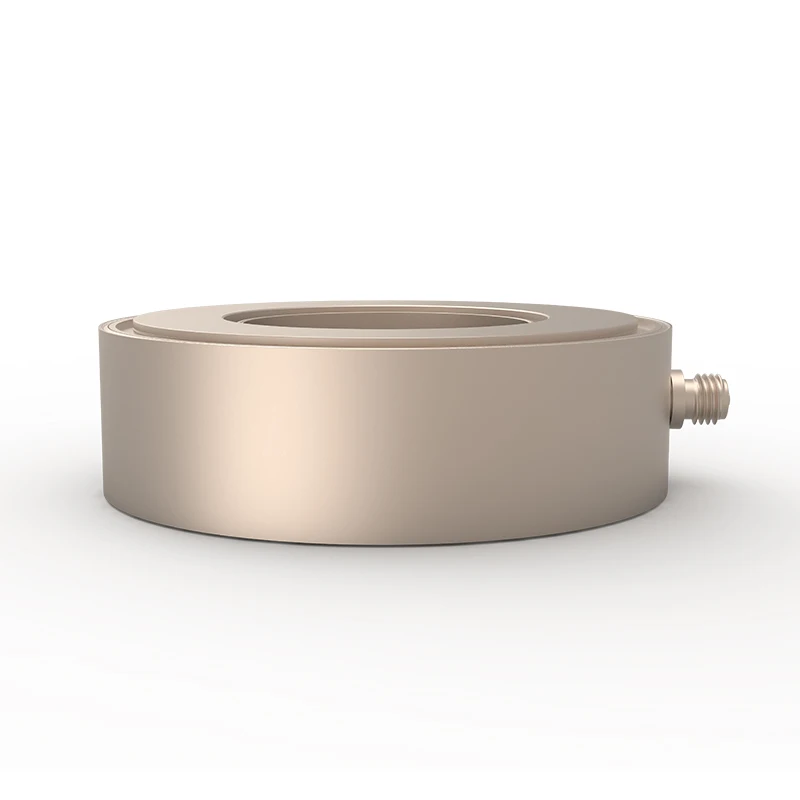

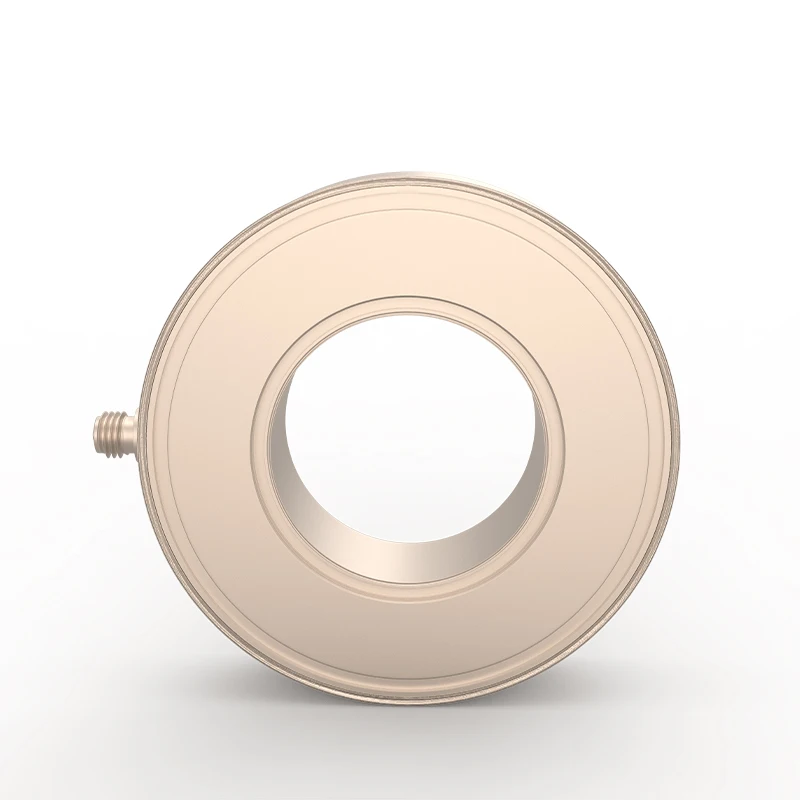

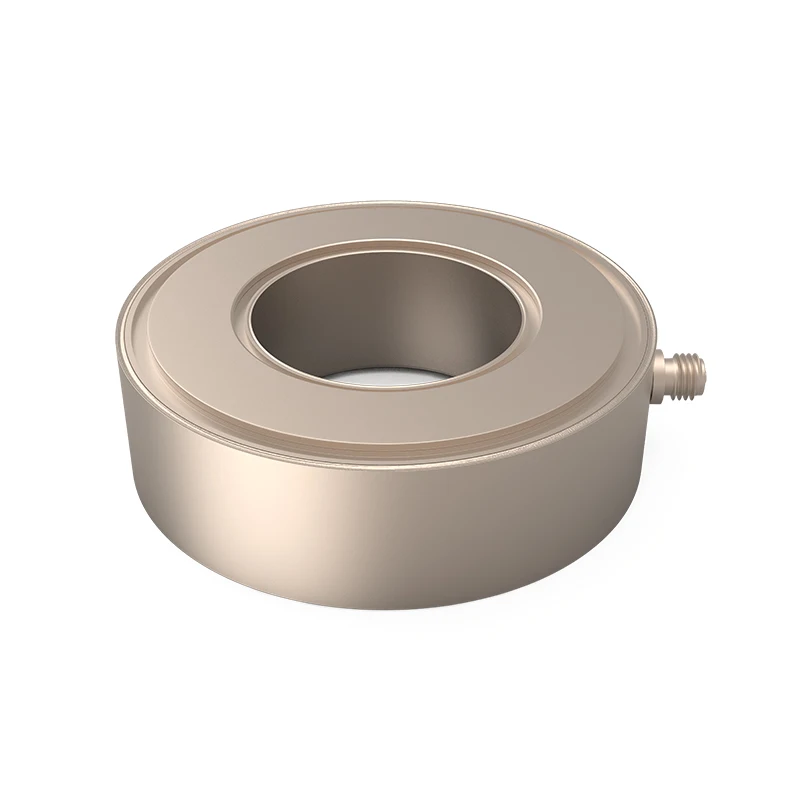

Product Name: JSDCL600L Single Direction Piezoelectric Force Sensor
Alternate Name: Circular One-Way PE Voltage Signal Sensor
Product Type: Force Sensors & Load Cells
Description:
The JSDCL600L is a uniaxial piezoelectric force sensor designed for accurate single-direction force measurement. It features a circular design and outputs a PE (charge-based) voltage signal, making it ideal for dynamic applications that require fast response and high sensitivity.
Key Features:
Single Direction Measurement: Specifically designed for uniaxial force detection
PE Voltage Signal Output: Compatible with charge amplifiers for dynamic force analysis
Fast Response & High Precision: Ideal for capturing transient or impact forces
Circular Compact Structure: Facilitates easy installation in constrained spaces
Durable Construction: Reliable performance in industrial environments
Application Areas:
Impact testing and transient force analysis
Press force monitoring in automated equipment
Research and development in material science
Dynamic load measurement in machinery and structures
Static parameters |
||
Charge sensitivity (20±5°C) |
～2pC/ N |
|
Measuring range |
0~600kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～150pF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant frequency |
＞15kHz |
|
Operating Voltage |
+18~28VDC |
|
Operating current |
||
Operating temperature range |
||
Physical Parameters |
||
Weight |
750g |
|
Housing Material |
High strength stainless steel |
|
Mounting |
Through hole φ40.5 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 socket |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL600L |
|
IEPE voltage output type |
JSDCL600LE |
|
