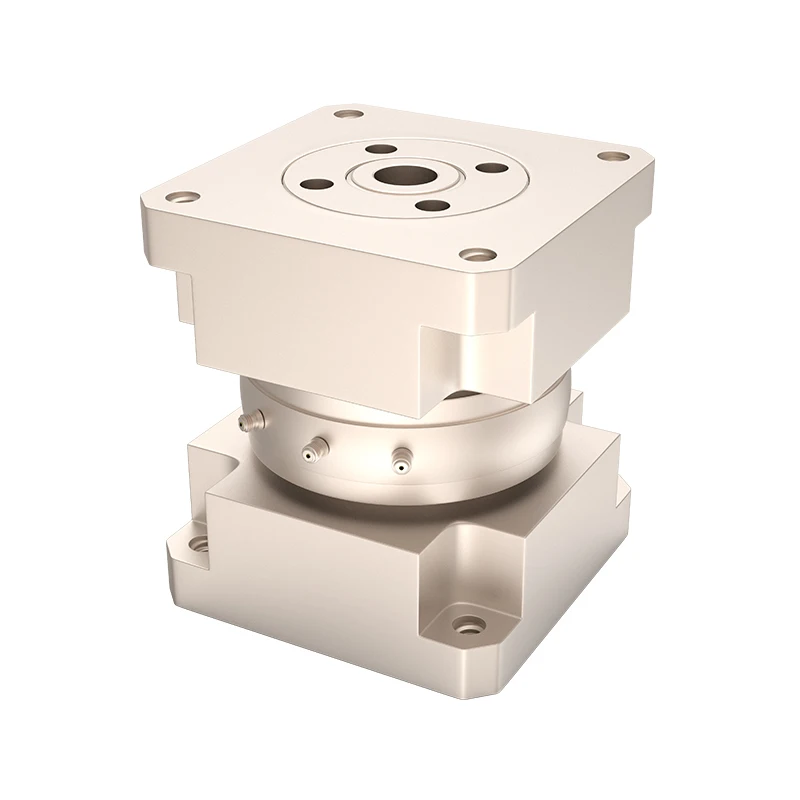

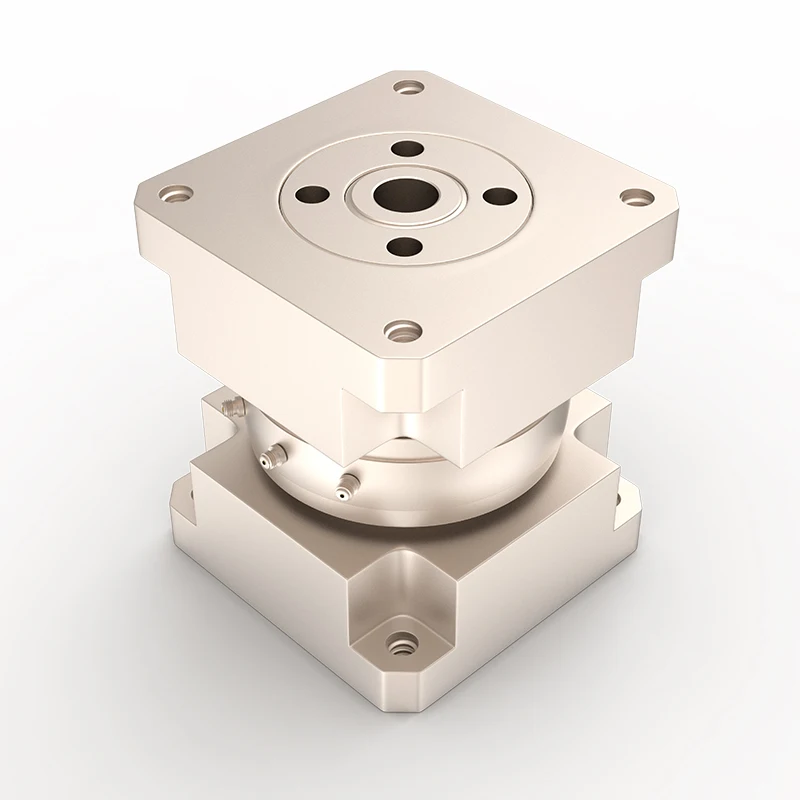

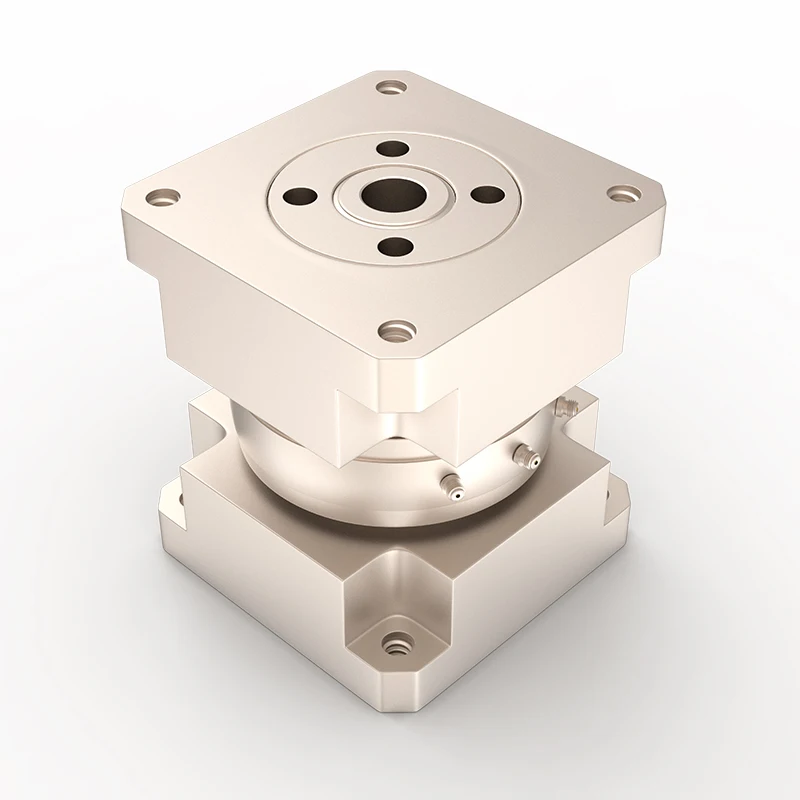

JSDCL3040L Three-Axis Force and Vibration Sensor / Three-Dimensional Pressure Sensor
Product Type: Force Sensors & Load Cells
Product Overview:
The JSDCL3040L is a high-precision three-axis force and vibration sensor capable of simultaneously measuring forces and vibrations along the X, Y, and Z axes. It is ideal for industrial and research applications that require detailed monitoring of multi-directional forces.
Key Features:
Three-Dimensional Force Measurement: Captures real-time force and vibration data on all three axes for a complete understanding of applied loads
High Sensitivity and Accuracy: Suitable for detecting subtle force changes, ensuring reliable and precise results
Durable Construction: Engineered to perform reliably in demanding environments and over long durations
Compact Design: Easily integrates into systems with limited space without compromising performance
Application Areas:
Robotics Control and Feedback: Provides real-time force feedback to improve robotic precision and interaction
Automated Equipment Monitoring: Monitors force dynamics during automated operations, enhancing system stability and safety
Multi-Axis Structural Testing: Suitable for testing components and materials under complex, multi-directional load conditions
Medical Device Testing: Enables accurate detection of small forces for use in medical device development and calibration
Static parameters |
||||
Charge sensitivity (20±5°C) |
Z direction |
～4pC/N |
||
X direction |
～7.5pC/N |
|||
Y direction |
～7.5pC/N |
|||
Measuring range |
Z direction |
±40kN |
||
X direction |
±20kN |
|||
Y direction |
±20kN |
|||
Overload capacity |
120 ％ |
|||
Linearity |
≤1%F·S |
|||
Hysteresis |
≤1%F·S |
|||
Repeatability |
≤1%F·S |
|||
Capacitance |
～60PF |
|||
Insulation resistance |
＞1013Ω |
|||
Dynamic parameters |
||||
Resonant Frequency |
＞15kHz |
|||
Operating temperature range |
-54～+120 ℃ |
|||
Physical Parameters |
||||
Weight |
～3150 g |
|||
Product size (mm) |
80×80×90 |
|||
Casing Material |
High strength stainless steel |
|||
Mounting |
8-M10(60*60) |
|||
Sensitive Material |
Quartz |
|||
Output Method |
3-L5 |
|||
Accessory |
||||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|||
The sensor can be used as a PE charge or IEPE voltage signal output |
||||
PE charge output type |
JSDCL3040L |
|||
IEPE voltage output type |
JSDCL3040LE |
|||
