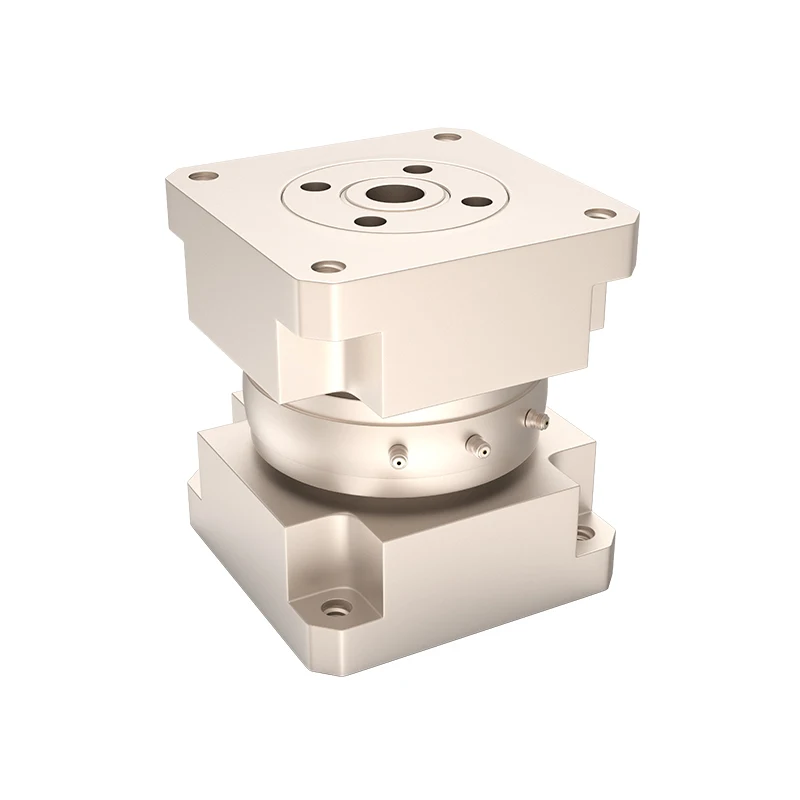

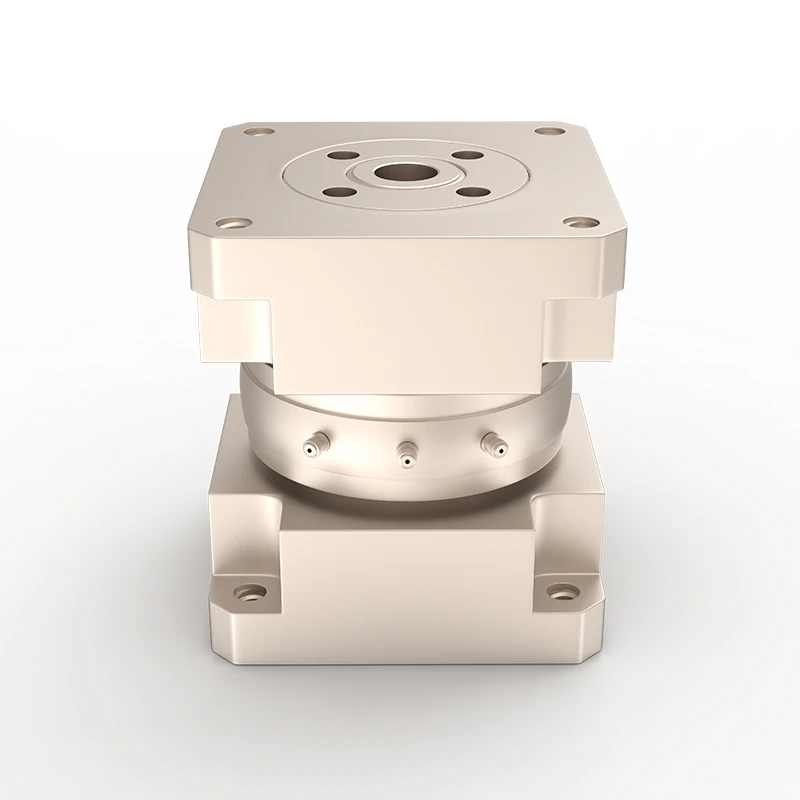

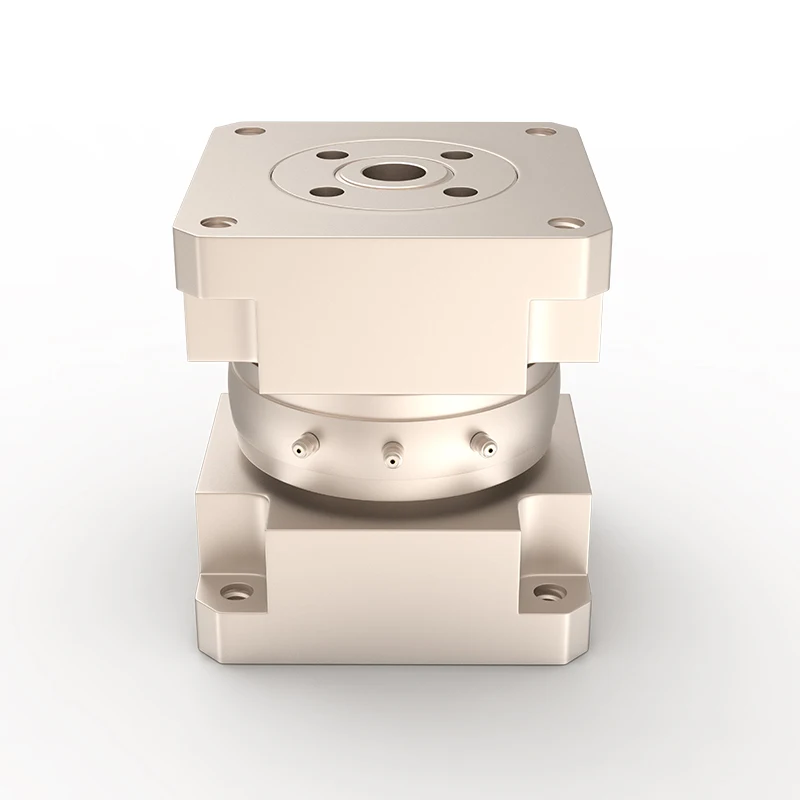

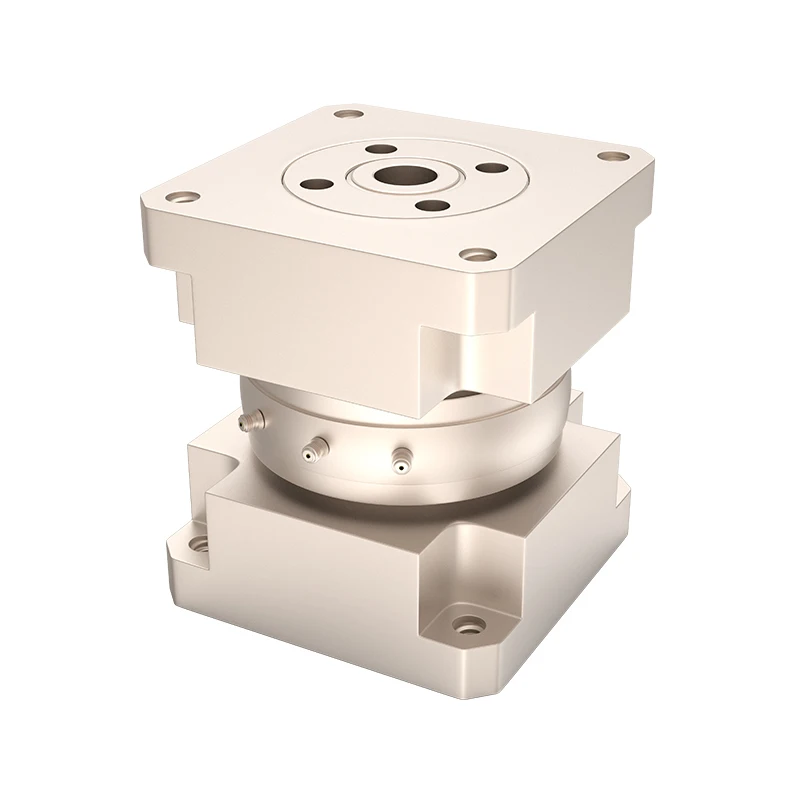

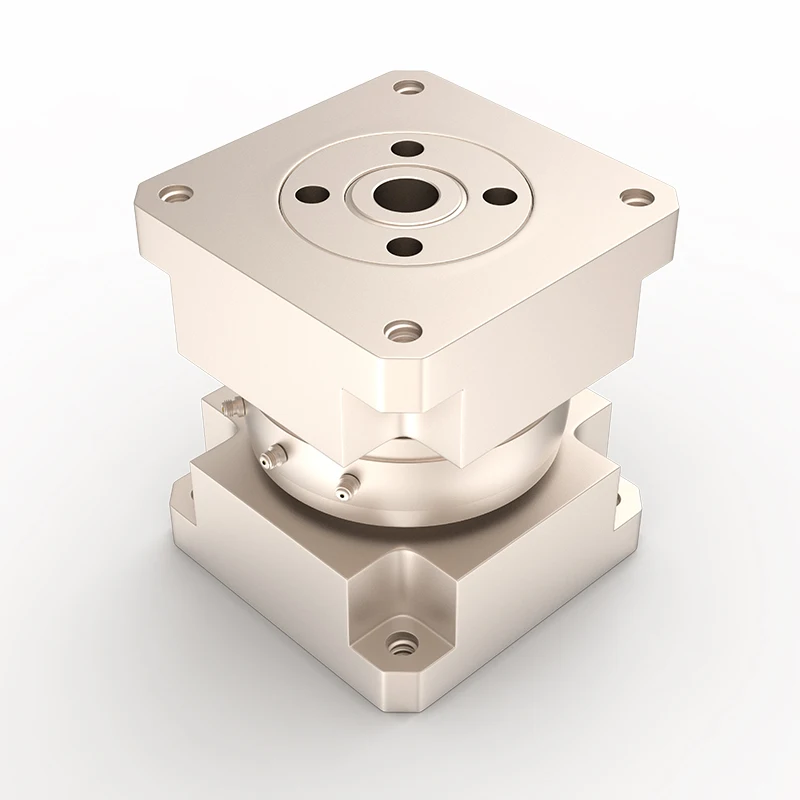

Product Name: JSDCL3040L Three-Axis Force and Vibration Sensor
Alternate Name: Three-Dimensional Pressure Sensor
Product Type: Force Sensors & Load Cells
Description:
The JSDCL3040L is a precision-engineered three-axis force and vibration sensor designed for simultaneous measurement of forces and vibrations along the X, Y, and Z axes. Its compact and robust design makes it suitable for a wide range of applications, including robotics, automation systems, structural testing, and scientific research.
Key Features:
High-precision measurement in three dimensions
Real-time force and vibration feedback
Compact structure with durable construction
Easy integration into testing and monitoring systems
Typical Applications:
Robotic force feedback and control
Industrial automation and quality monitoring
Multidirectional structural load testing
Sensitive force detection in medical and research equipment

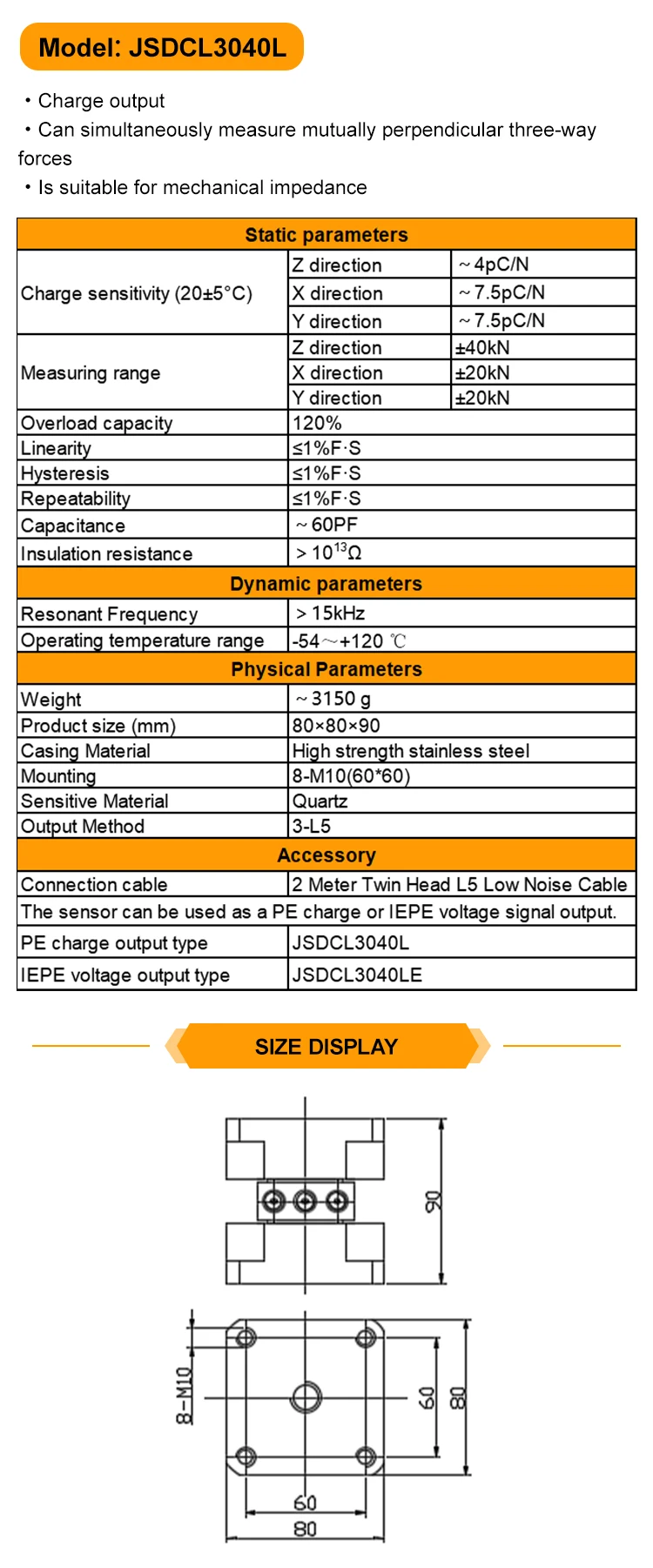

Static parameters |
||||
Charge sensitivity (20±5°C) |
Z direction |
～4pC/N |
||
X direction |
～7.5pC/N |
|||
Y direction |
～7.5pC/N |
|||
Measuring range |
Z direction |
±40kN |
||
X direction |
±20kN |
|||
Y direction |
±20kN |
|||
Overload capacity |
120 ％ |
|||
Linearity |
≤1%F·S |
|||
Hysteresis |
≤1%F·S |
|||
Repeatability |
≤1%F·S |
|||
Capacitance |
～60PF |
|||
Insulation resistance |
＞1013Ω |
|||
Dynamic parameters |
||||
Resonant Frequency |
＞15kHz |
|||
Operating temperature range |
-54～+120 ℃ |
|||
Physical Parameters |
||||
Weight |
～3150 g |
|||
Product size (mm) |
80×80×90 |
|||
Casing Material |
High strength stainless steel |
|||
Mounting |
8-M10(60*60) |
|||
Sensitive Material |
Quartz |
|||
Output Method |
3-L5 |
|||
Accessory |
||||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|||
The sensor can be used as a PE charge or IEPE voltage signal output |
||||
PE charge output type |
JSDCL3040L |
|||
IEPE voltage output type |
JSDCL3040LE |
|||
