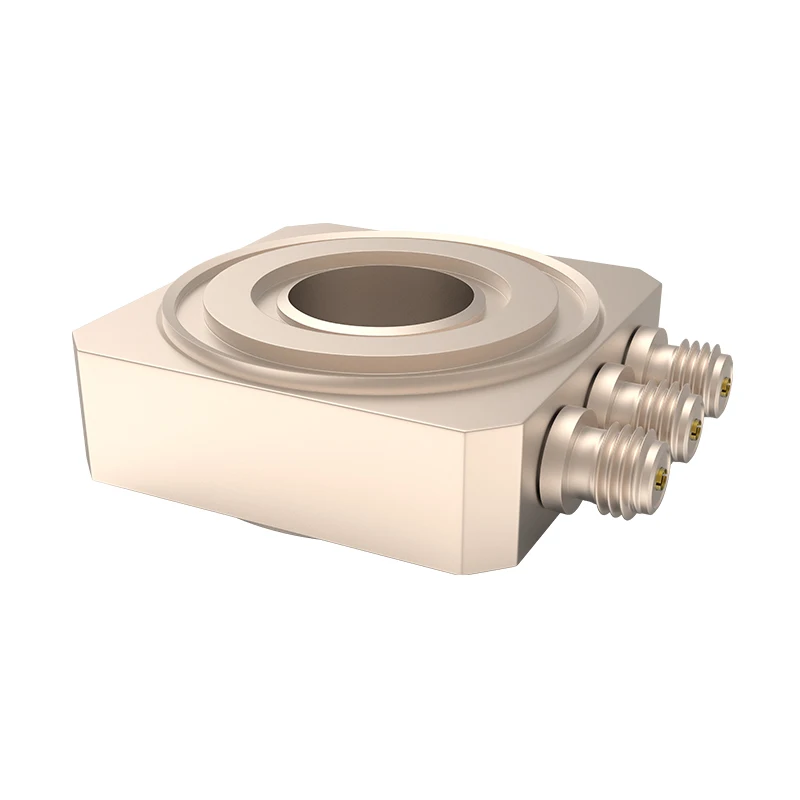

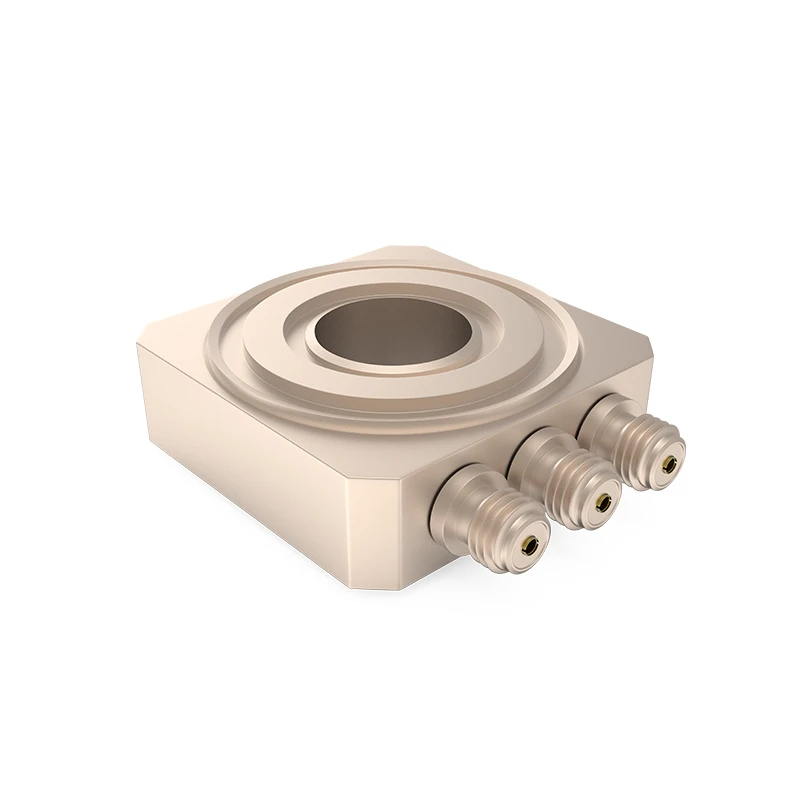

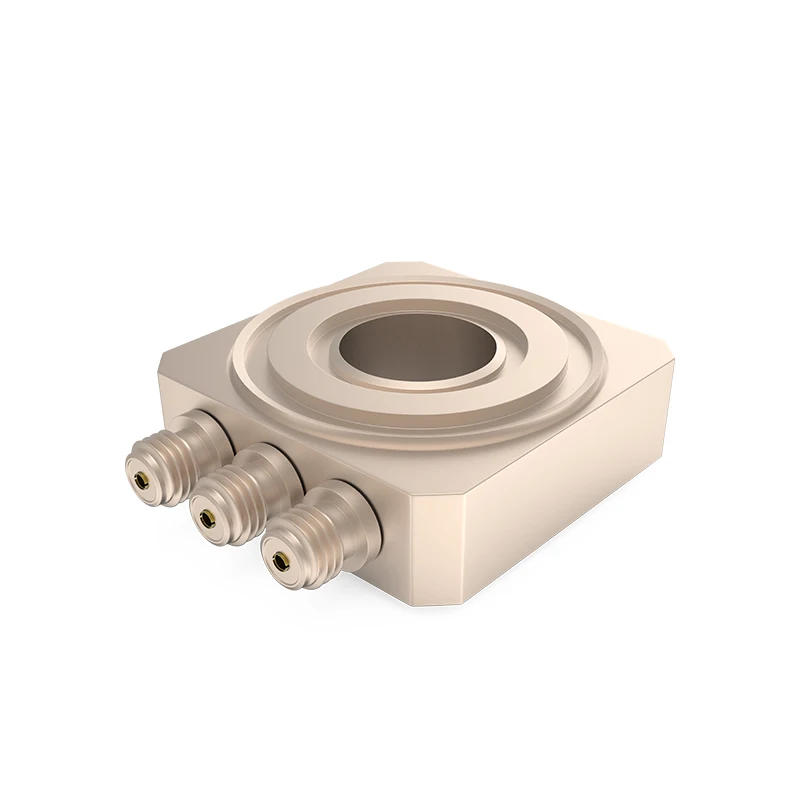

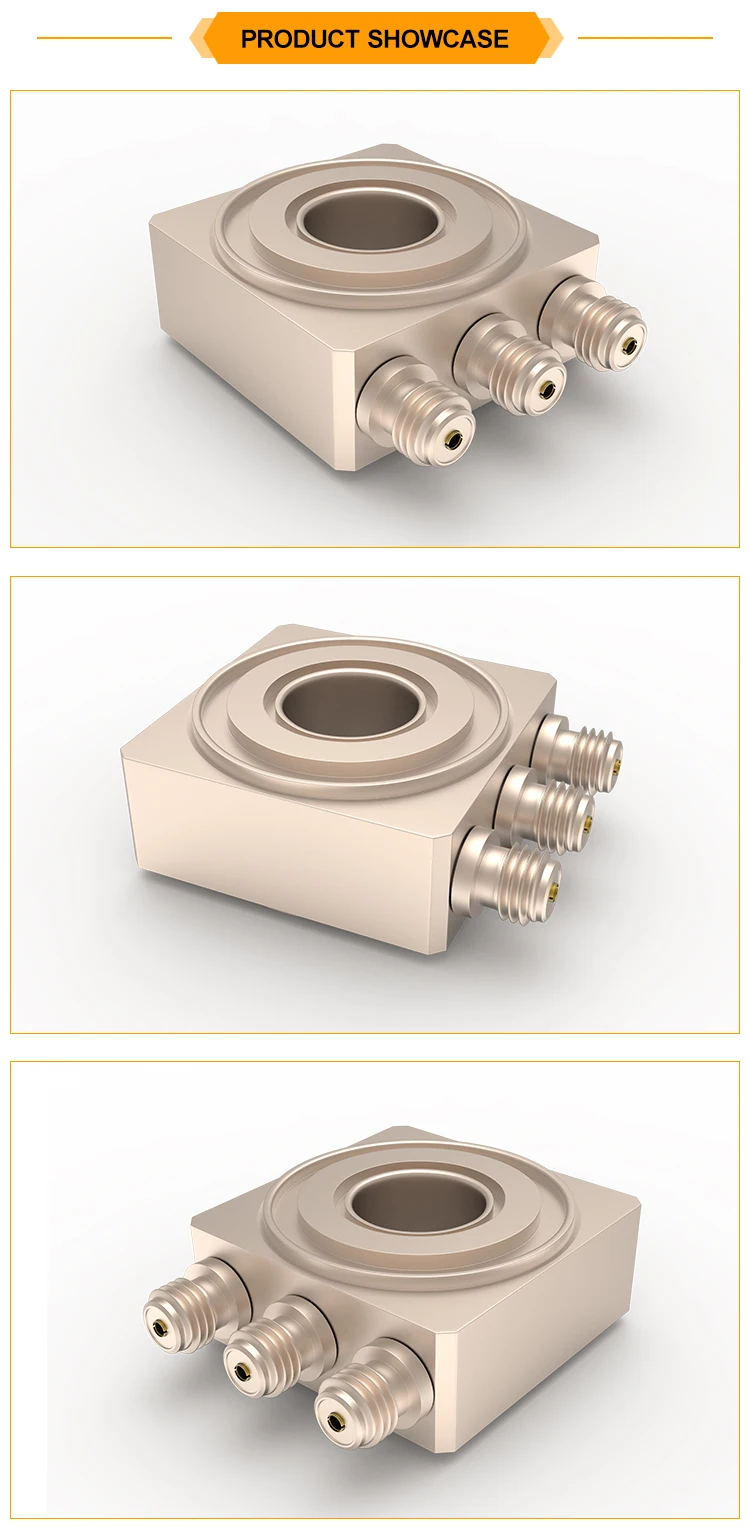

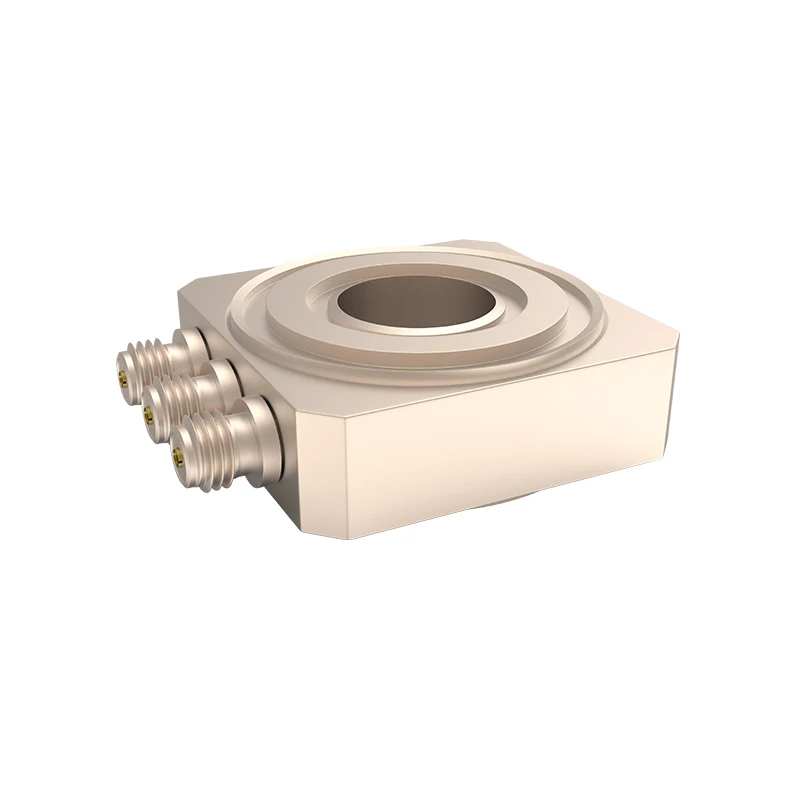

Product Name: JSDCL3005LT Three-Axis Force Vibration Sensor
Product Type: Force Sensors & Load Cells
Description:
The JSDCL3005LT is a high-precision three-axis force vibration sensor, specifically designed to detect and measure force and vibration across three axes (X, Y, and Z). This sensor is ideal for applications requiring accurate multidimensional force and vibration analysis in dynamic environments. It integrates advanced technology to ensure precise data collection, making it suitable for a wide range of industrial and research applications.
Key Features:
Three-Axis Measurement: Measures force and vibration across three directions (X, Y, Z) for complete multidirectional force analysis
Vibration Detection: Specially designed to capture vibrational forces in industrial machinery and equipment
High Precision: Ensures accurate measurements, even in high-dynamic environments
Durable Construction: Built to withstand harsh conditions, providing long-lasting performance
Versatile Applications: Ideal for a wide range of force and vibration sensing applications in mechanical testing, structural analysis, and industrial monitoring
Applications:
Vibration testing in machinery and equipment
Structural health monitoring and stress analysis
Force measurement in dynamic systems and components
Research and development in force and vibration sensor technologies

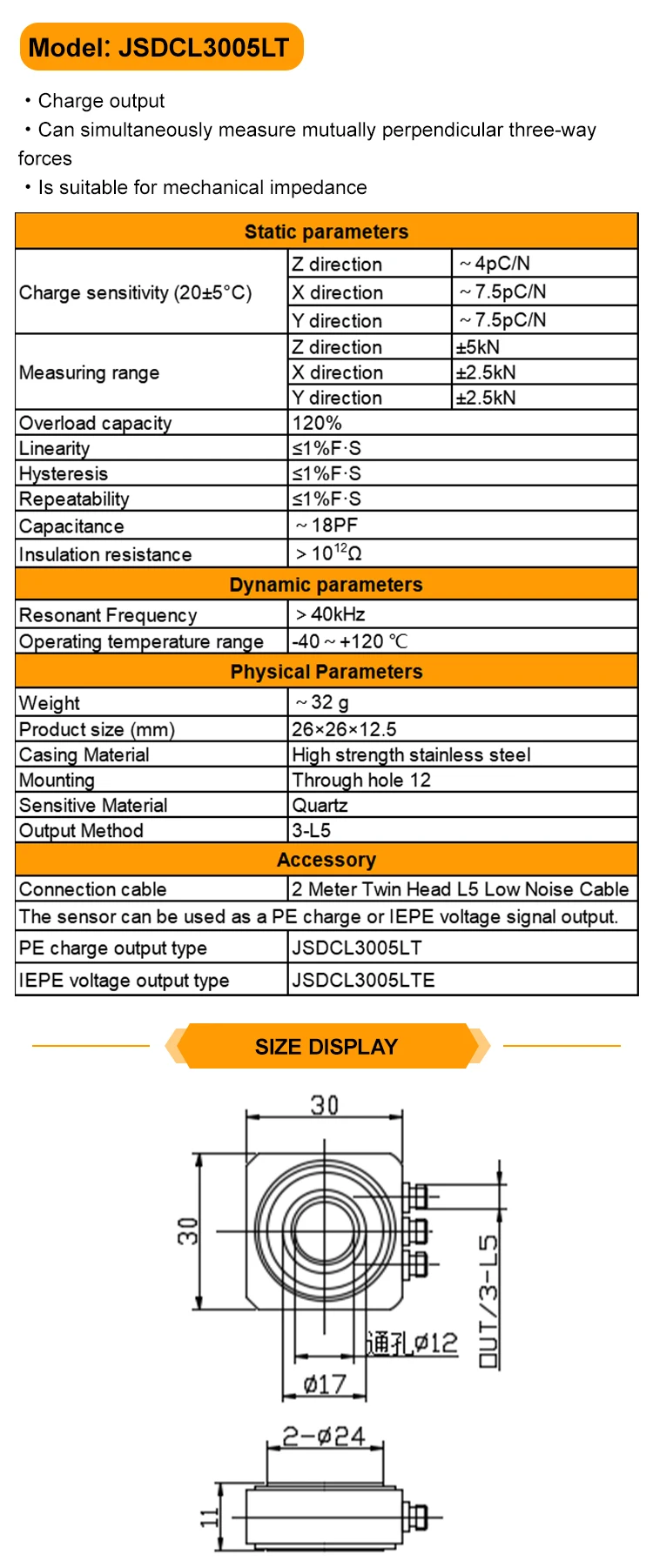

Static parameters |
||||
Charge sensitivity (20±5°C) |
Z direction |
～4pC/N |
||
X direction |
～7.5pC/N |
|||
Y direction |
～7.5pC/N |
|||
Measuring range |
Z direction |
±5kN |
||
X direction |
±2.5kN |
|||
Y direction |
±2.5kN |
|||
Overload capacity |
120 ％ |
|||
Linearity |
≤1%F·S |
|||
Hysteresis |
≤1%F·S |
|||
Repeatability |
≤1%F·S |
|||
Capacitance |
～18PF |
|||
Insulation resistance |
＞1012Ω |
|||
Dynamic parameters |
||||
Resonant Frequency |
＞40kHz |
|||
Operating temperature range |
-40～+120 ℃ |
|||
Physical Parameters |
||||
Weight |
～32 g |
|||
Product size (mm) |
26×26×12.5 |
|||
Casing Material |
High strength stainless steel |
|||
Mounting |
Through hole 12 |
|||
Sensitive Material |
Quartz |
|||
Output Method |
3-L5 |
|||
Accessory |
||||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|||
The sensor can be used as a PE charge or IEPE voltage signal output. |
||||
PE charge output type |
JSDCL3005LT |
|||
IEPE voltage output type |
JSDCL3005LTE |
|||
