JSDCL3005L High Precision Triaxial Force Sensor Piezoelectric Vibrational Load Cell for Tridirectional Measurement
- Overview
- Related Products

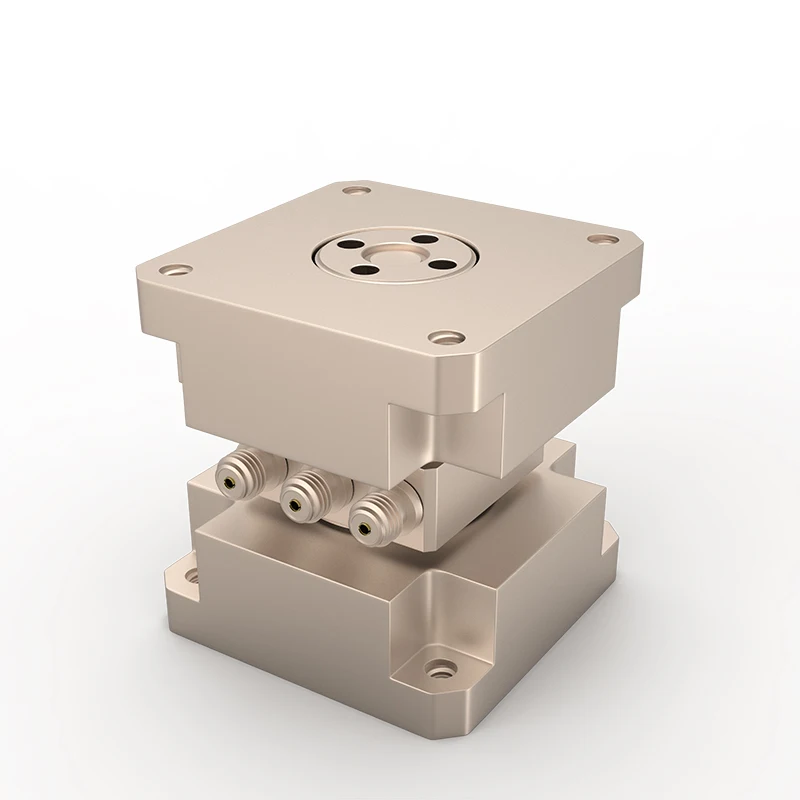

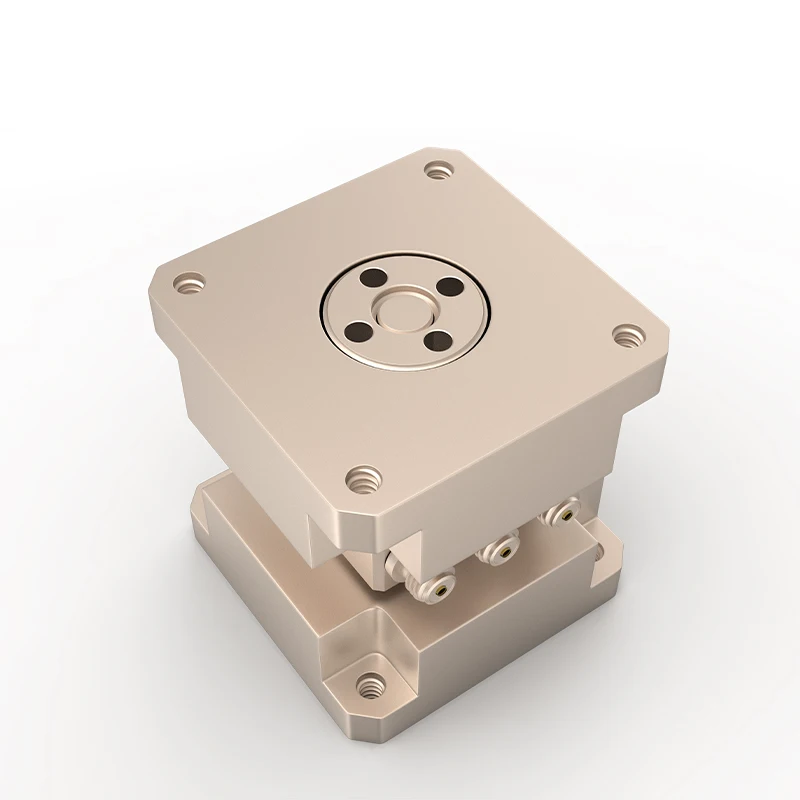

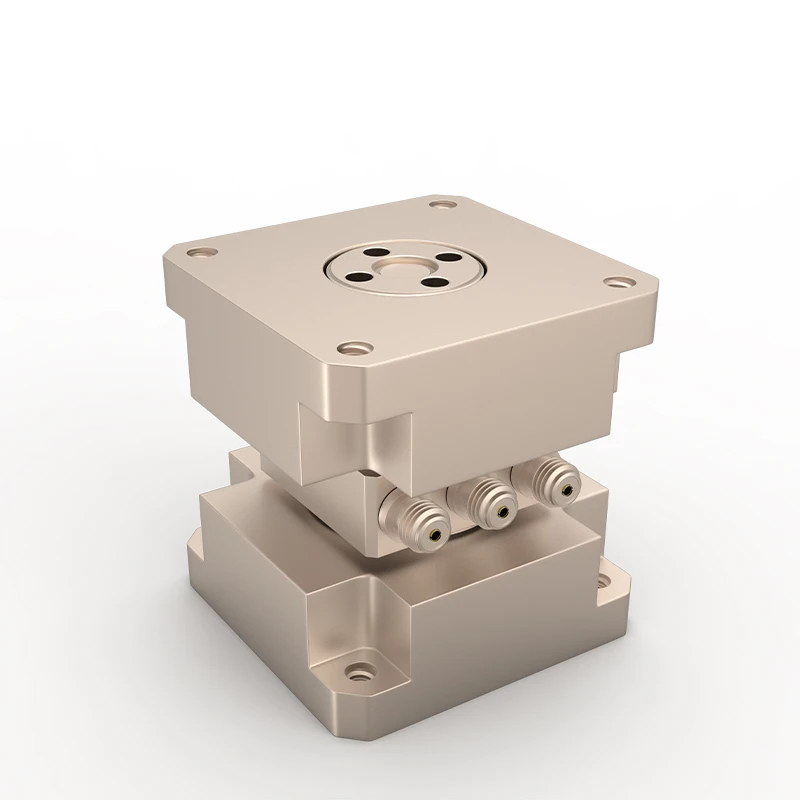

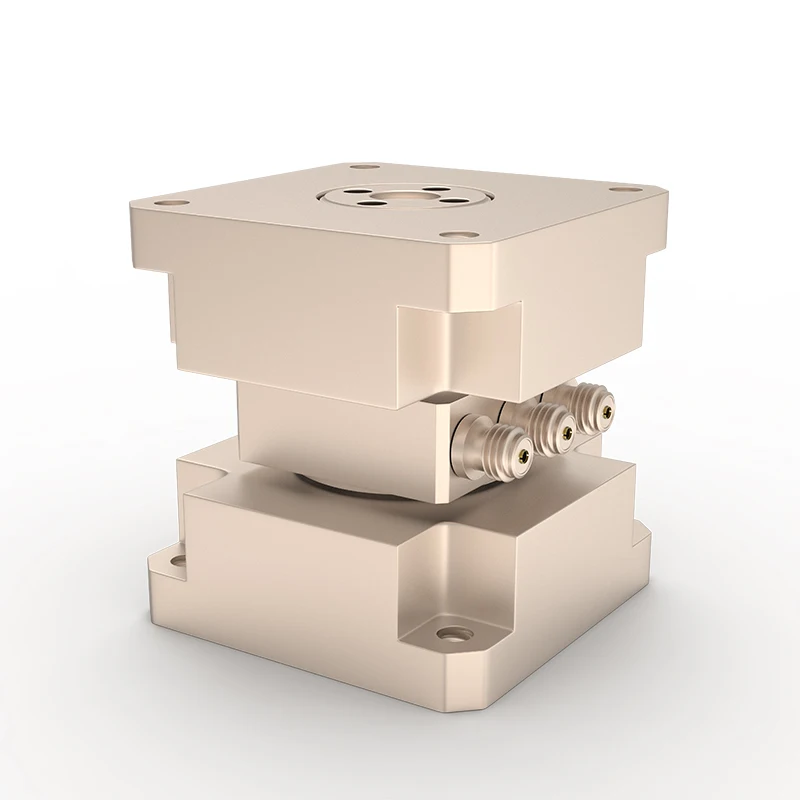

Product Name: JSDCL3005L High Precision Triaxial Force Sensor
Alternate Name: Piezoelectric Vibrational Load Cell for Tridirectional Measurement
Product Type: Triaxial Force Sensors & Load Cells
Description:
The JSDCL3005L is a high-precision piezoelectric triaxial force sensor designed for measuring forces in three directions simultaneously. This advanced load cell provides accurate vibrational force measurements in dynamic environments, making it ideal for tridirectional force detection in mechanical, structural, and industrial applications.
Key Features:
Triaxial Measurement: Measures force in three axes (X, Y, and Z) for comprehensive force detection
Piezoelectric Technology: Ensures high sensitivity and fast response times for dynamic force measurements
Vibration Detection: Specifically designed for environments where vibrational forces need to be measured with high accuracy
High Precision: Delivers reliable data for multidimensional force analysis
Durable Construction: Built to perform reliably in harsh conditions, making it suitable for industrial and laboratory use
Applications:
Structural health monitoring and stress analysis
Vibration testing in mechanical and industrial systems
Multidirectional force measurement in materials testing
Advanced research in triaxial force sensors and load cells
Static parameters |
||||
Charge sensitivity (20±5°C) |
Z direction |
～4pC/N |
||
X direction |
～7.5pC/N |
|||
Y direction |
～7.5pC/N |
|||
Measuring range |
Z direction |
±5kN |
||
X direction |
±2.5kN |
|||
Y direction |
±2.5kN |
|||
Overload capacity |
120 ％ |
|||
Linearity |
≤1%F·S |
|||
Hysteresis |
≤1%F·S |
|||
Repeatability |
≤1%F·S |
|||
Capacitance |
～18PF |
|||
Insulation resistance |
＞1013Ω |
|||
Dynamic parameters |
||||
Resonant Frequency |
＞30kHz |
|||
Operating temperature range |
-40～+120 ℃ |
|||
Physical Parameters |
||||
Weight |
～390 g |
|||
Product size (mm) |
42×42×44 |
|||
Casing Material |
High strength stainless steel |
|||
Mounting |
8-M5(32*32) |
|||
Sensitive Material |
Quartz |
|||
Output Method |
3-L5 |
|||
Accessory |
||||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|||
The sensor can be used as a PE charge or IEPE voltage signal output. |
||||
PE charge output type |
JSDCL3005L |
|||
IEPE voltage output type |
JSDCL3005LE |
|||
