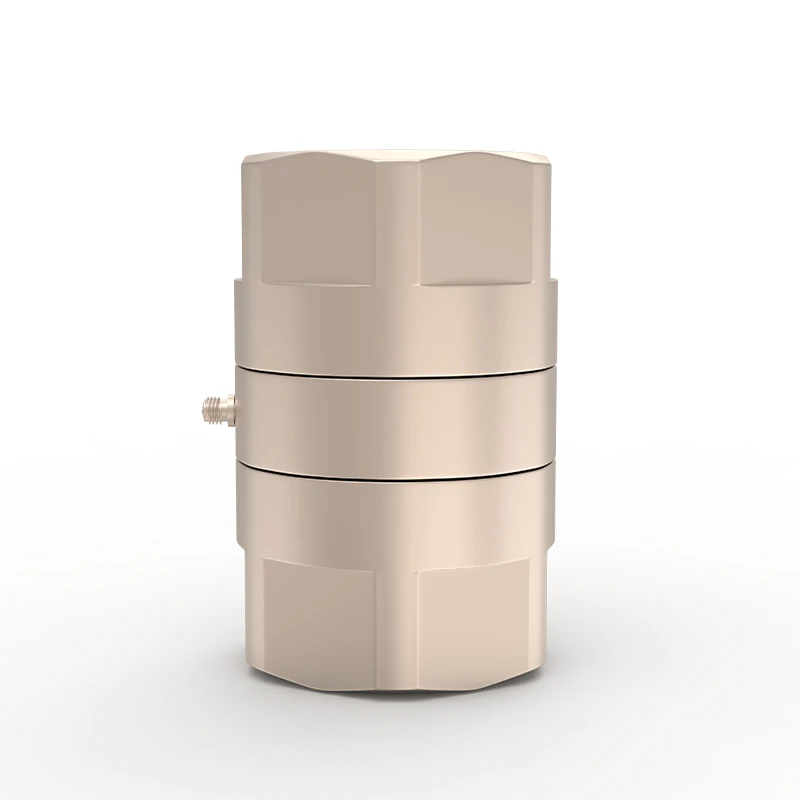

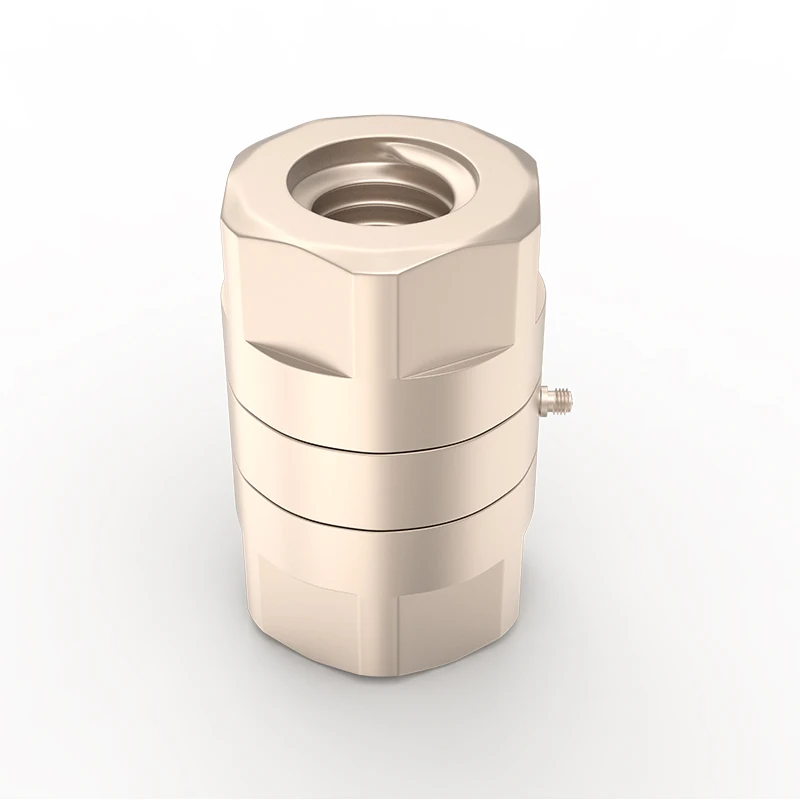

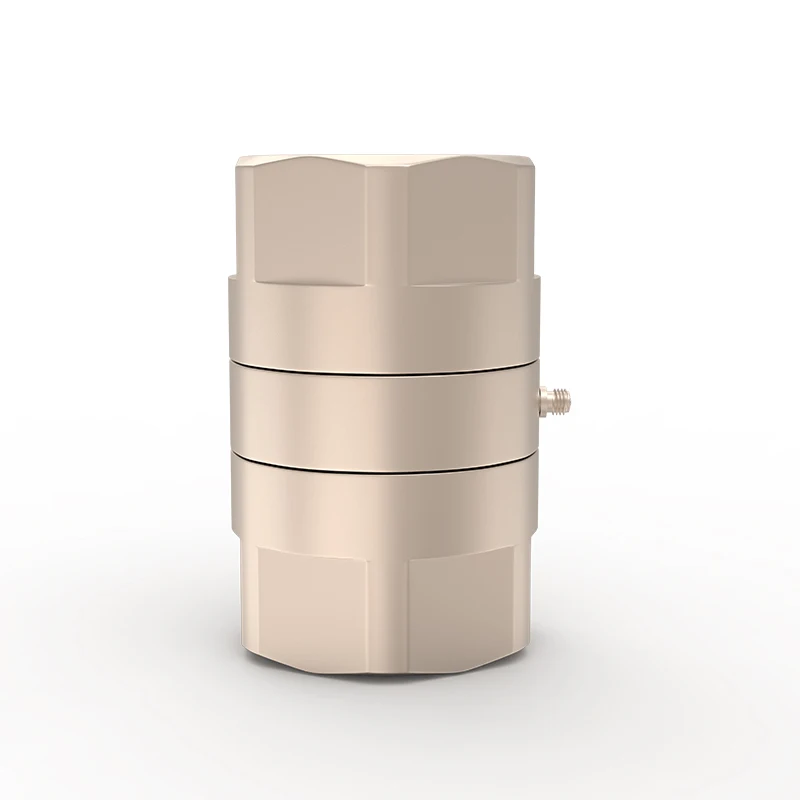

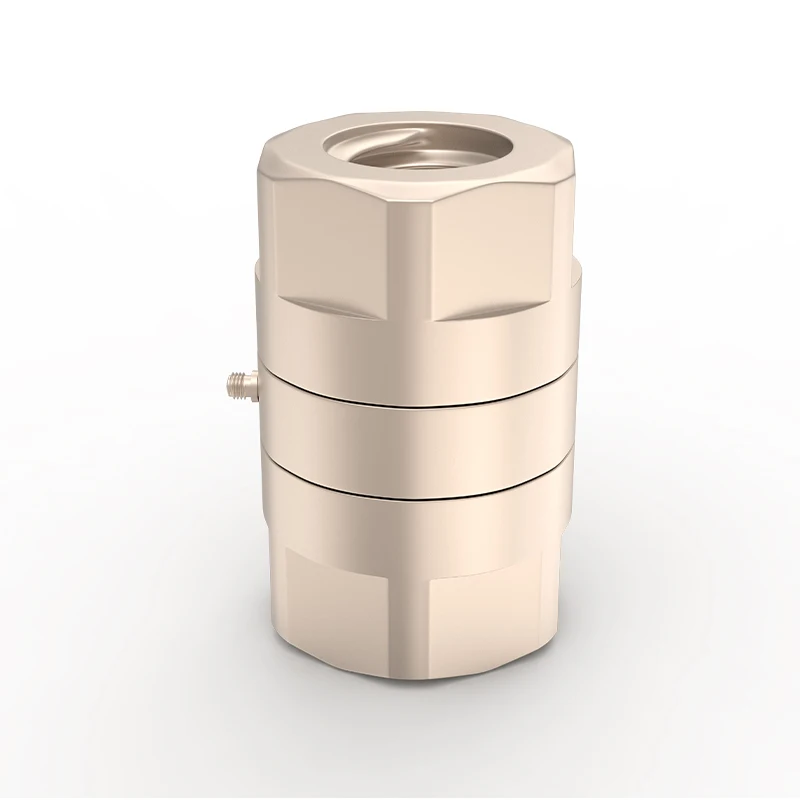

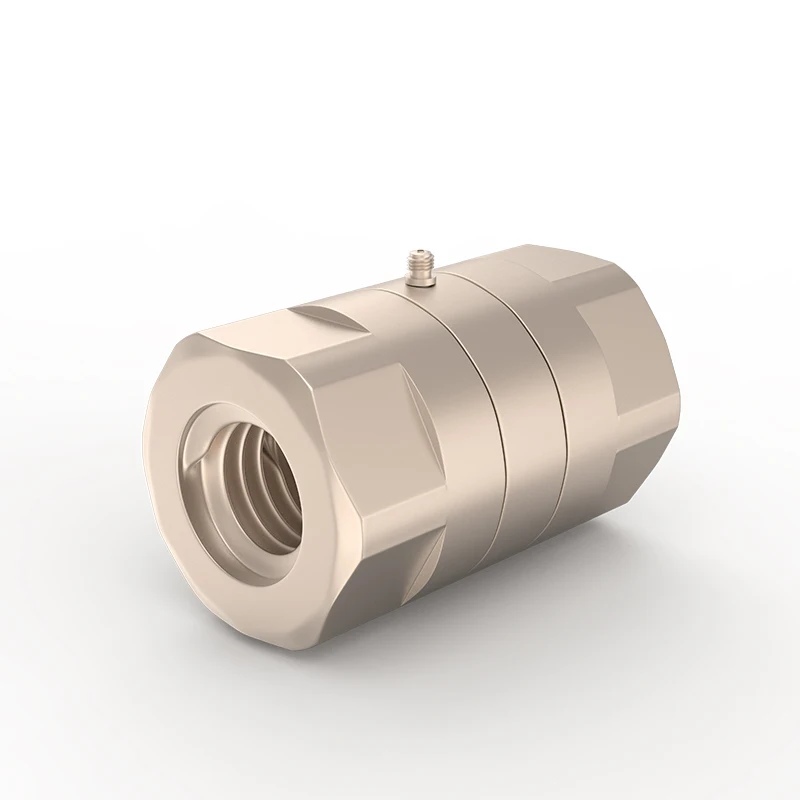

Product Name: JSDCL260LY Dynamic Quasi-Static Force Sensor
Alternate Name: Precision Vibrator Pressure Measurements
Product Type: Pressure Sensors & Load Cells
Description:
The JSDCL260LY is a high-precision force sensor designed to measure both dynamic and quasi-static forces, making it ideal for applications requiring accurate pressure measurement in vibrating environments. This versatile sensor provides reliable performance in pressure monitoring systems, ensuring precise readings in both rapid and steady force scenarios.
Key Features:
Dynamic & Quasi-Static Measurement: Capable of measuring both fast and steady force or pressure changes
Precision Vibrator Pressure Measurements: Specially designed to capture pressure changes in systems subject to vibration
High Accuracy: Delivers precise data for a wide range of industrial and research applications
Versatile Use in Harsh Environments: Reliable in environments where vibration and dynamic pressure variations are present
Compact & Durable: Designed to withstand industrial conditions while offering long-term performance
Applications:
Pressure measurement in vibrating systems and machinery
Dynamic testing and force measurement in fluid and gas systems
Structural health monitoring and vibration analysis
Research and development for force and pressure sensor technologies
Static parameters |
||
Charge sensitivity (20±5℃) |
～1.6pC/N |
|
Tensile Sensitivity Error |
≤2% |
|
Measuring range |
±60kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～58PF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞20kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
～1150g |
|
Housing material |
High strength stainless steel |
|
Mounting |
2-M24 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL260LY |
|
IEPE voltage output type |
JSDCL260LYE |
|
