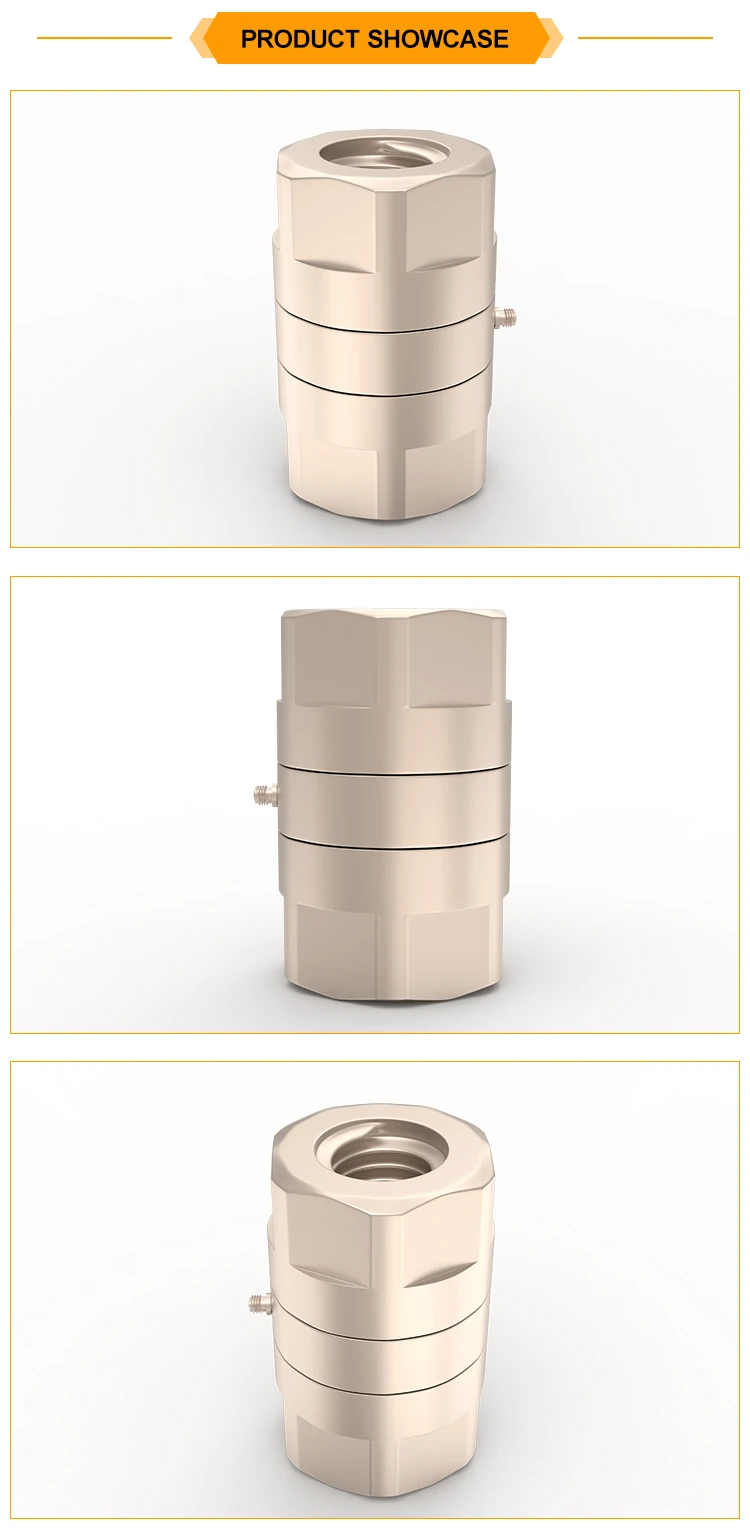

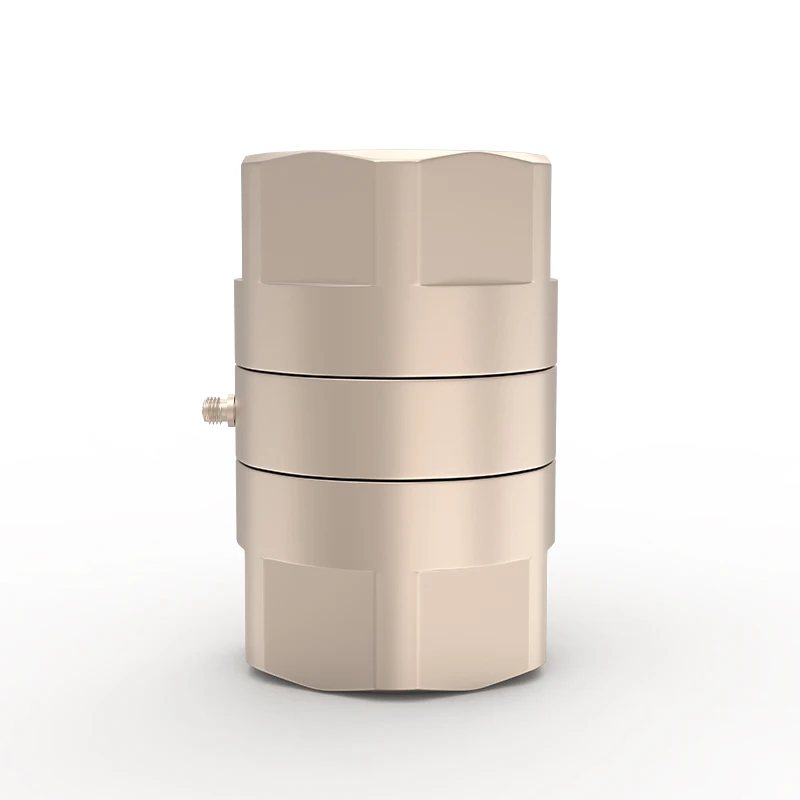

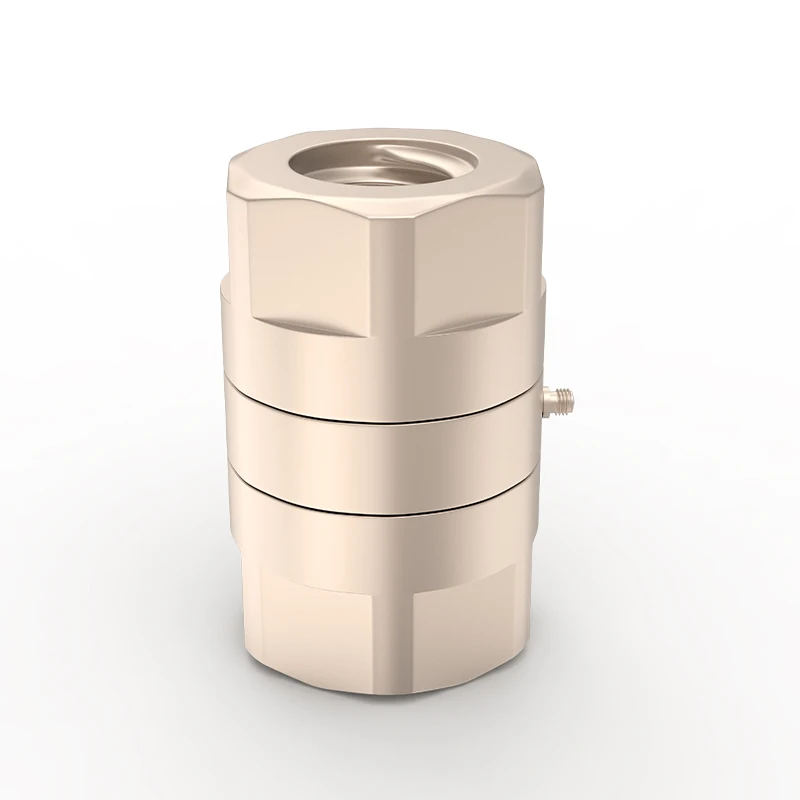

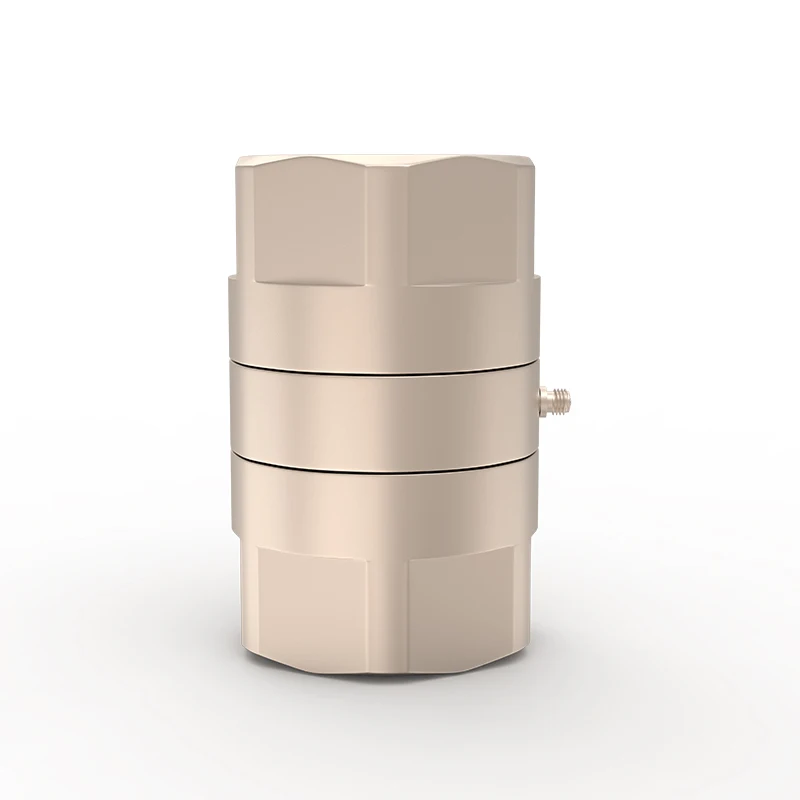

Product Name: JSDCL260LY Dynamic Quasi-Static Force Sensor
Alternate Name: Precision Pressure Measurements for Vibrator
Product Type: Pressure Sensors
Description:
The JSDCL260LY is a highly accurate dynamic and quasi-static force sensor designed for precise pressure measurements in vibratory environments. This sensor excels in applications where both rapid and steady force or pressure changes need to be detected, making it ideal for dynamic testing, vibration analysis, and industrial pressure monitoring.
Key Features:
High Precision: Offers accurate force and pressure measurements for both dynamic and quasi-static applications
Dynamic & Quasi-Static Measurement: Capable of handling fast transient forces as well as steady, constant pressures
Vibration Measurement: Specifically designed for use in environments with vibration or dynamic forces, providing reliable readings
Compact and Durable: Built for long-lasting performance in harsh industrial conditions
Versatile: Suitable for a variety of pressure measurement applications across industries
Applications:
Precision pressure monitoring in dynamic systems
Vibration testing in industrial and mechanical systems
Force measurement in fluid systems and machinery
Research and development for advanced pressure sensors

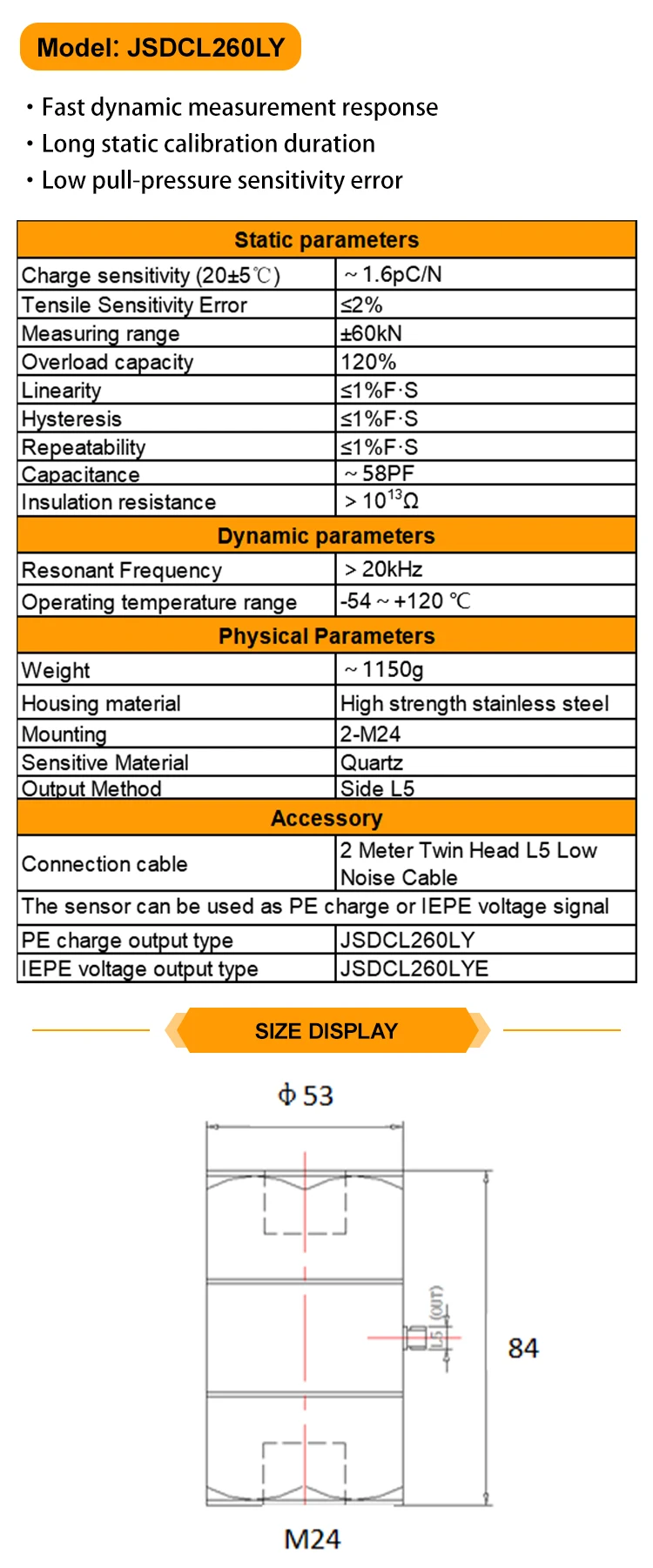

Static parameters |
||
Charge sensitivity (20±5℃) |
～1.6pC/N |
|
Tensile Sensitivity Error |
≤2% |
|
Measuring range |
±60kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～58PF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞20kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
～1150g |
|
Housing material |
High strength stainless steel |
|
Mounting |
2-M24 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL260LY |
|
IEPE voltage output type |
JSDCL260LYE |
|
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
