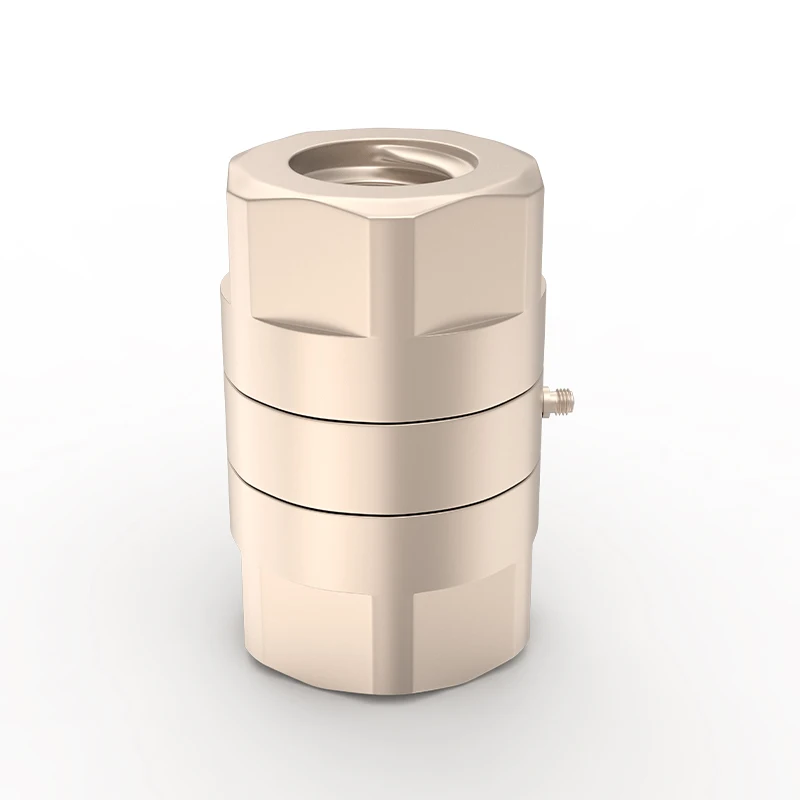

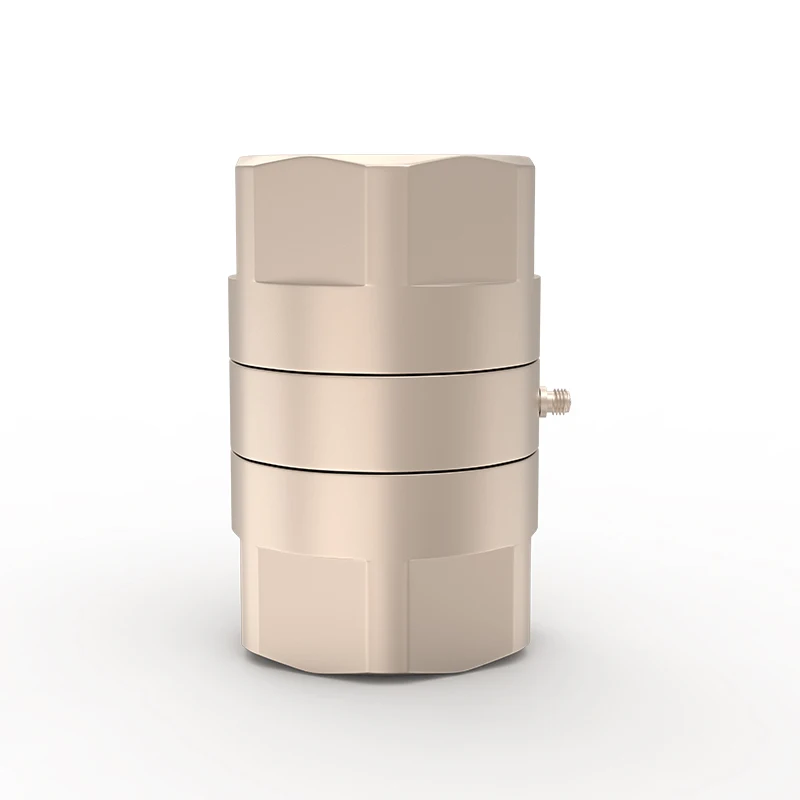

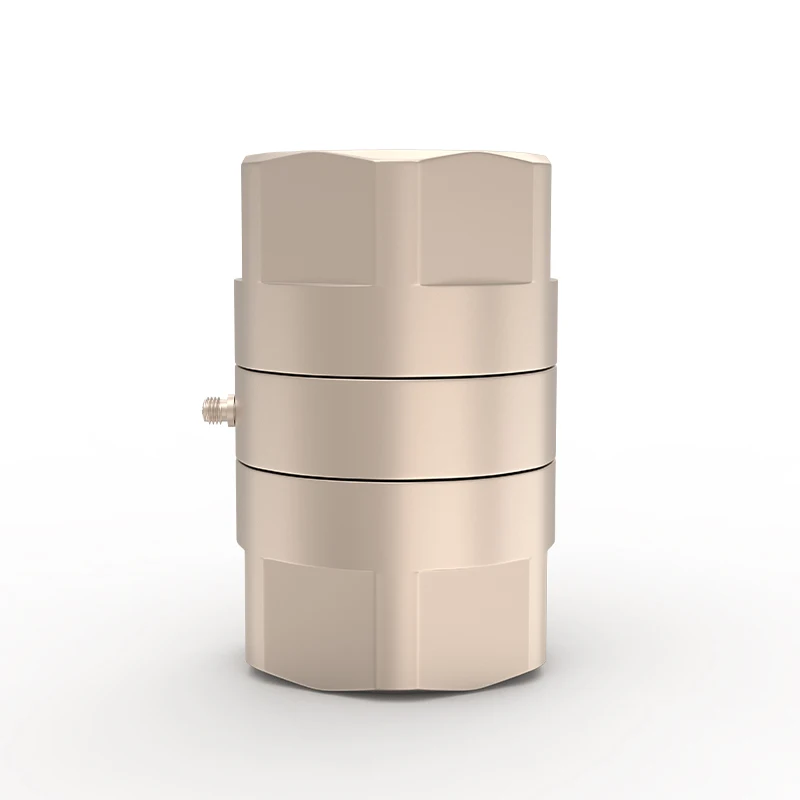

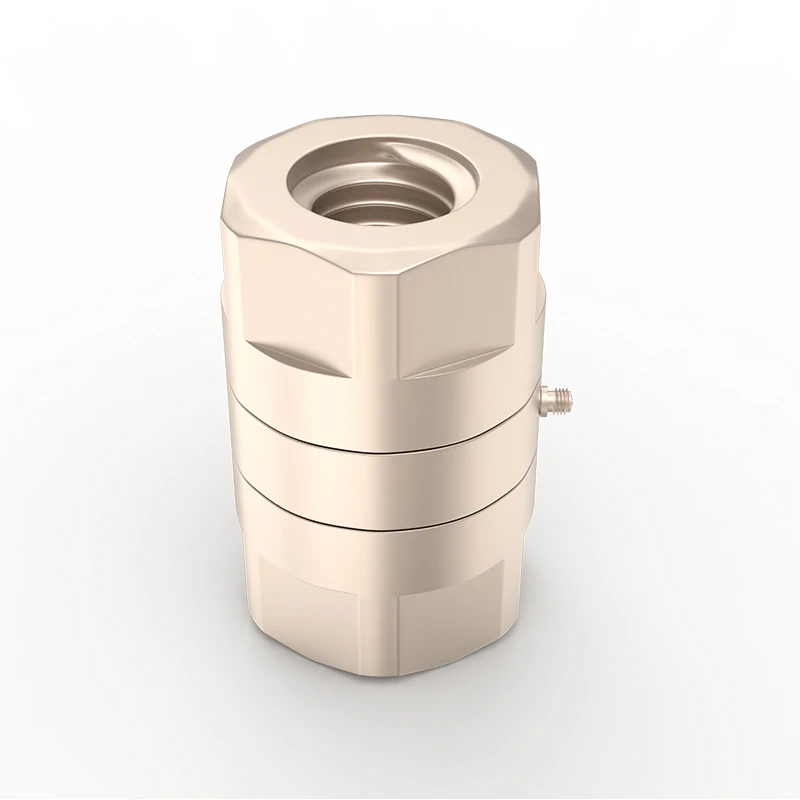

Product Name: JSDCL260LY Dynamic Quasi-Static Force Sensor
Alternate Name: Precision Pressure Measurements for Vibrator
Product Type: Pressure Sensors
Description:
The JSDCL260LY is a high-performance force sensor engineered for both dynamic and quasi-static force measurements. Specially designed for precision pressure measurements in vibrating environments, it ensures accurate detection of force and pressure changes. This sensor excels in applications where rapid and steady force fluctuations need to be monitored, making it ideal for dynamic testing, vibration analysis, and industrial pressure measurements.
Key Features:
Dynamic & Quasi-Static Measurement: Measures both fast and steady force or pressure changes with high precision
Precision Pressure Measurement: Designed for accurate pressure detection in vibrating systems and environments
High Sensitivity & Accuracy: Provides reliable data for pressure monitoring in demanding applications
Durable Construction: Built to perform in harsh industrial and mechanical testing conditions
Versatile Applications: Suitable for use across a wide range of pressure sensing and force measurement scenarios
Applications:
Vibration testing and dynamic pressure monitoring in machinery
Force and pressure measurements in fluid systems and industrial equipment
Structural and mechanical testing in research and development
Pressure monitoring in hydraulic and pneumatic systems
Static parameters |
||
Charge sensitivity (20±5℃) |
～1.6pC/N |
|
Tensile Sensitivity Error |
≤2% |
|
Measuring range |
±60kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～58PF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞20kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
～1150g |
|
Housing material |
High strength stainless steel |
|
Mounting |
2-M24 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL260LY |
|
IEPE voltage output type |
JSDCL260LYE |
|
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
