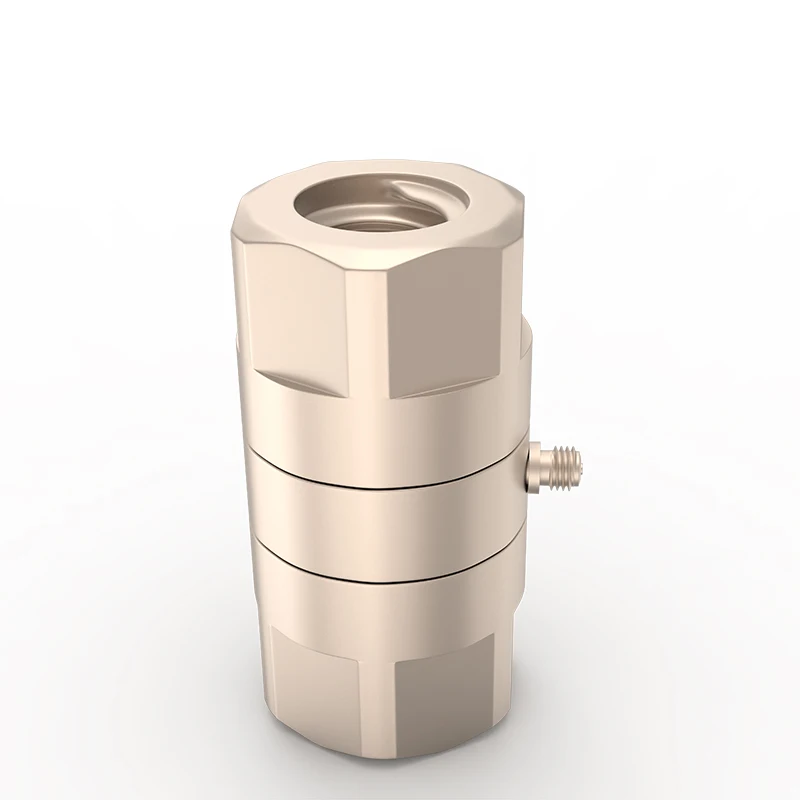

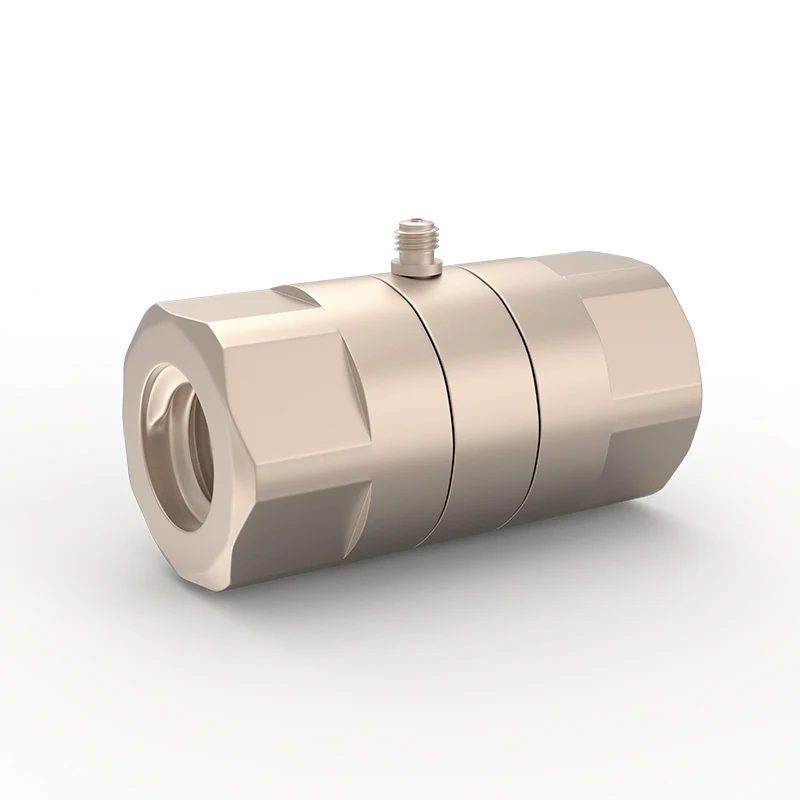

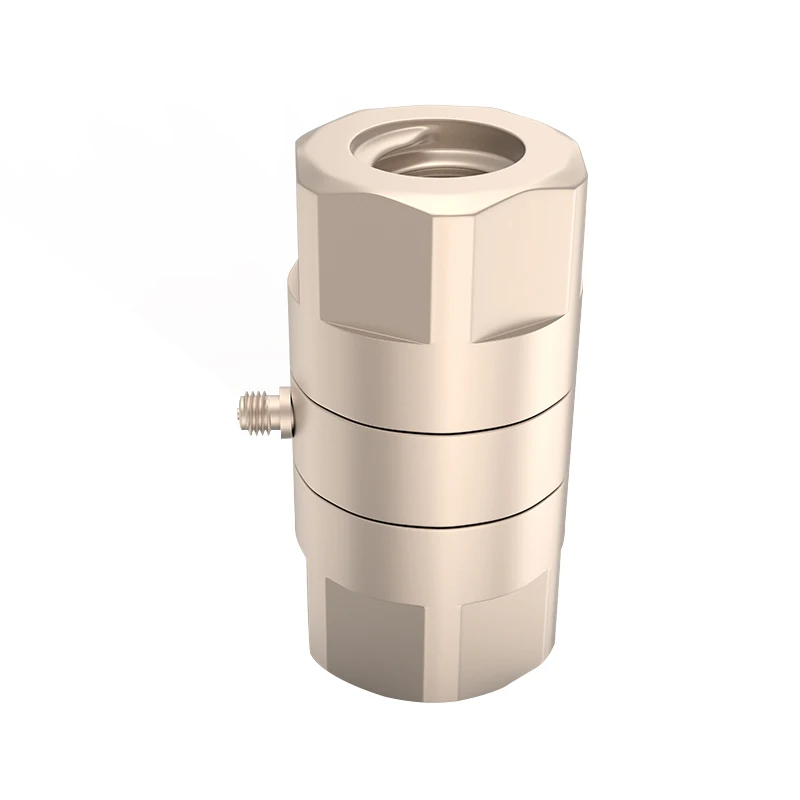

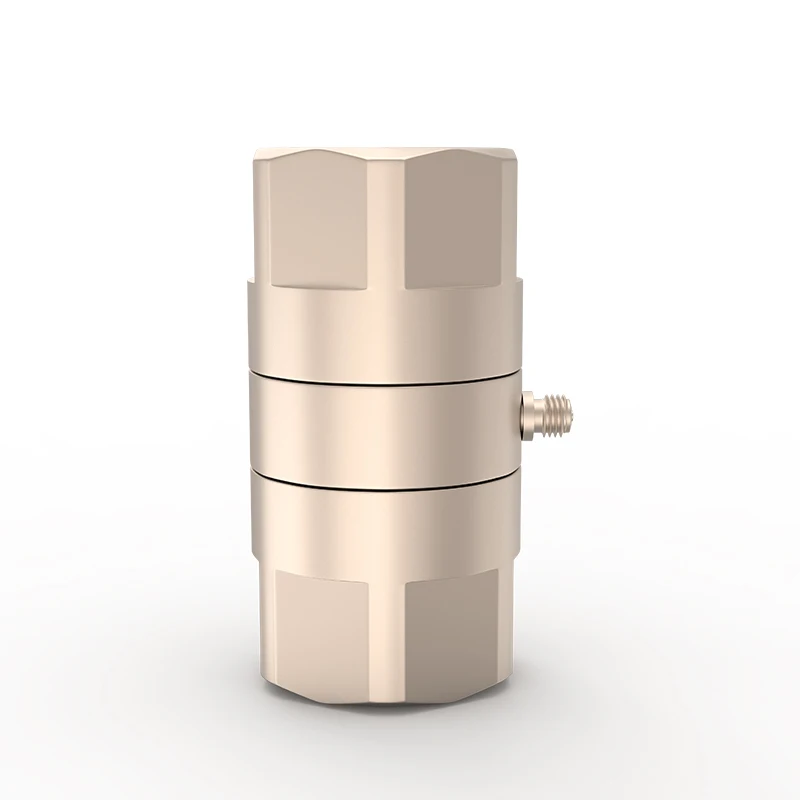

Product Name: JSDCL230LY High Accuracy Dynamic Quasi-Static Force Sensor
Alternate Name: Precision Pressure Measurements for Vibrator
Product Type: Force Sensors & Load Cells
Description:
The JSDCL230LY is a high-accuracy force sensor designed for both dynamic and quasi-static force measurements. It is especially effective for precision pressure measurements in vibratory environments. This sensor offers excellent performance for applications that require accurate force and pressure detection, particularly in vibration testing and pressure monitoring across various industrial and research settings.
Key Features:
High Accuracy: Delivers precise measurements for both dynamic and quasi-static forces
Dynamic & Quasi-Static Measurement: Ideal for both fast-changing and steady force or pressure applications
Precision Pressure Measurements: Accurate detection of pressure changes in systems experiencing vibration or dynamic forces
Vibration Testing Capability: Perfect for force measurement in vibrating environments, ensuring reliable data
Durability: Built to withstand demanding industrial and testing conditions
Applications:
Precision pressure measurement in hydraulic, pneumatic, and fluid systems
Vibration testing in machinery, vehicles, and structural components
Monitoring of dynamic forces in industrial equipment
Research and development in force measurement technologies and systems
Static parameters |
||
Charge sensitivity (20±5℃) |
～1.6pC/N |
|
Tensile Sensitivity Error |
≤2% |
|
Measuring range |
±30kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～28PF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞30kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
～190g |
|
Housing material |
High strength stainless steel |
|
Mounting |
2-M16 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL230LY |
|
IEPE voltage output type |
JSDCL230LYE |
|
