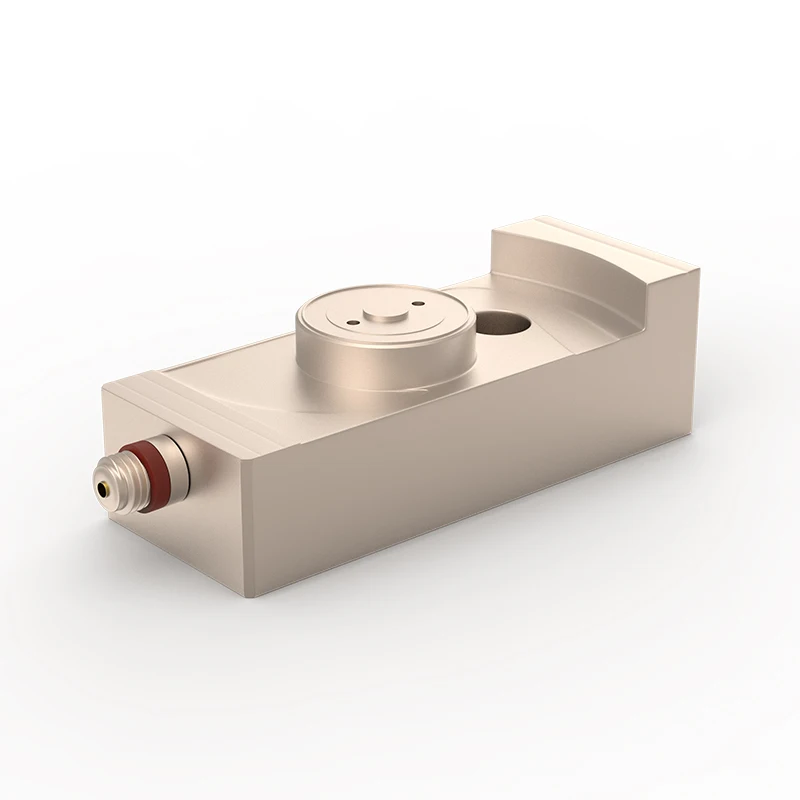

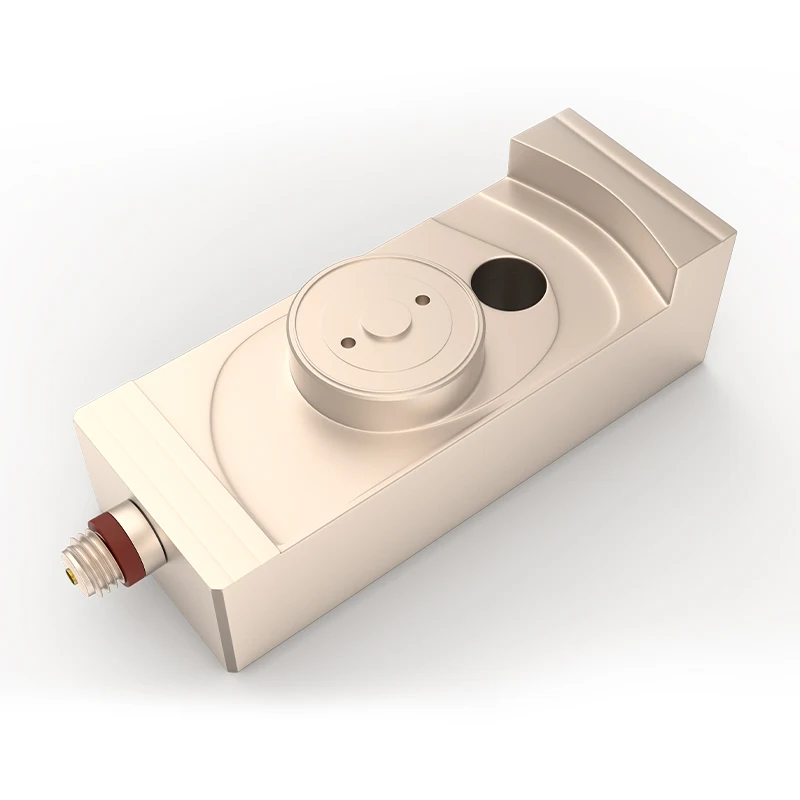

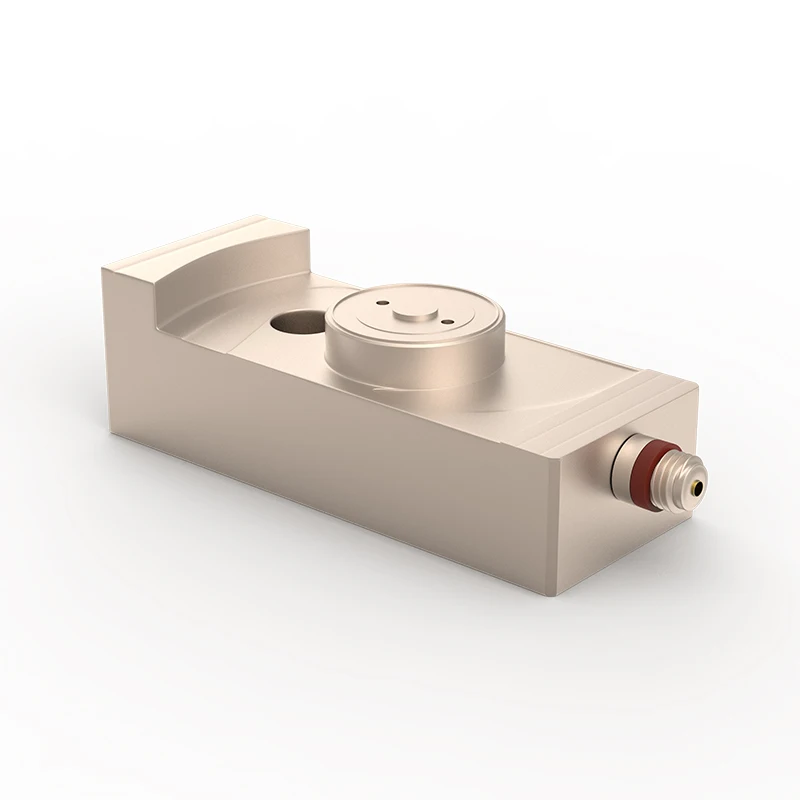

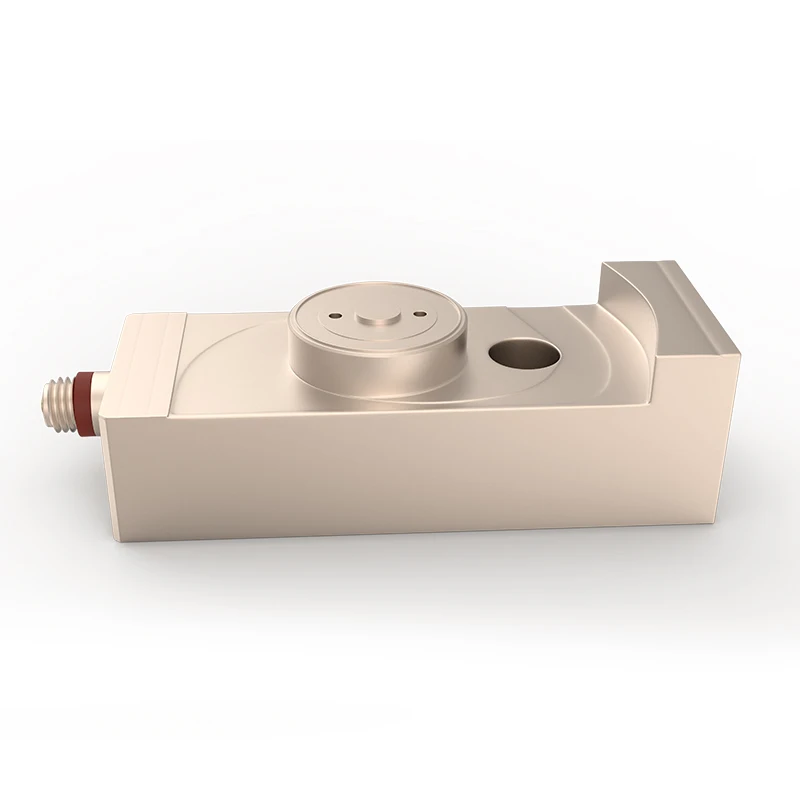

Product Name: JSDCL2100LYE Dynamic Quasi-Static Force Sensor
Alternate Name: Precision Vibrator Load Cells & Pressure Sensors for Measurements
Product Type: Pressure Sensors & Load Cells
Description:
The JSDCL2100LYE is a high-precision dynamic and quasi-static force sensor designed for accurate force and pressure measurements. This sensor is especially ideal for use in environments with vibrations, as it combines the capabilities of load cells and pressure sensors. It provides reliable performance in monitoring pressure changes and dynamic forces in fluid, gas, and mechanical systems.
Key Features:
Dynamic & Quasi-Static Measurement: Accurately measures both rapid and steady force or pressure changes
Precision Load Cell Technology: Ensures accurate force measurement across a wide range of applications
Vibration-Resistant Design: Perfect for environments where continuous or transient vibrations occur
Dual Functionality: Combines the features of load cells and pressure sensors for versatile measurements
Compact & Robust Construction: Built to withstand harsh conditions, ensuring long-term durability and reliability
Applications:
Pressure monitoring in hydraulic, pneumatic, and fluid systems
Vibration and impact testing in machinery and mechanical systems
Load measurement and force analysis in industrial equipment
Research and development in sensor technologies for dynamic force and pressure detection
Static parameters |
||
Voltage sensitivity (20±5°C) |
～50mV/um |
|
Measuring range |
100um |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Output impedance |
≤100Ω |
|
Operating voltage (constant current source) |
+18~30VDC |
|
Operating current (constant current source) |
+2~10mA |
|
Dynamic parameters |
||
Resonant frequency |
＞10kHz |
|
Operating temperature range |
-20～+100 ℃ |
|
Physical Parameters |
||
Weight |
～75g |
|
Housing material |
Stainless steel |
|
Mounting |
M6 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side End L5 |
|
Accessory |
||
Connection cable |
2 meter BNC/L5 cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL2100LYE |
|
IEPE voltage output type |
JSDCL2100LYEE |
|
