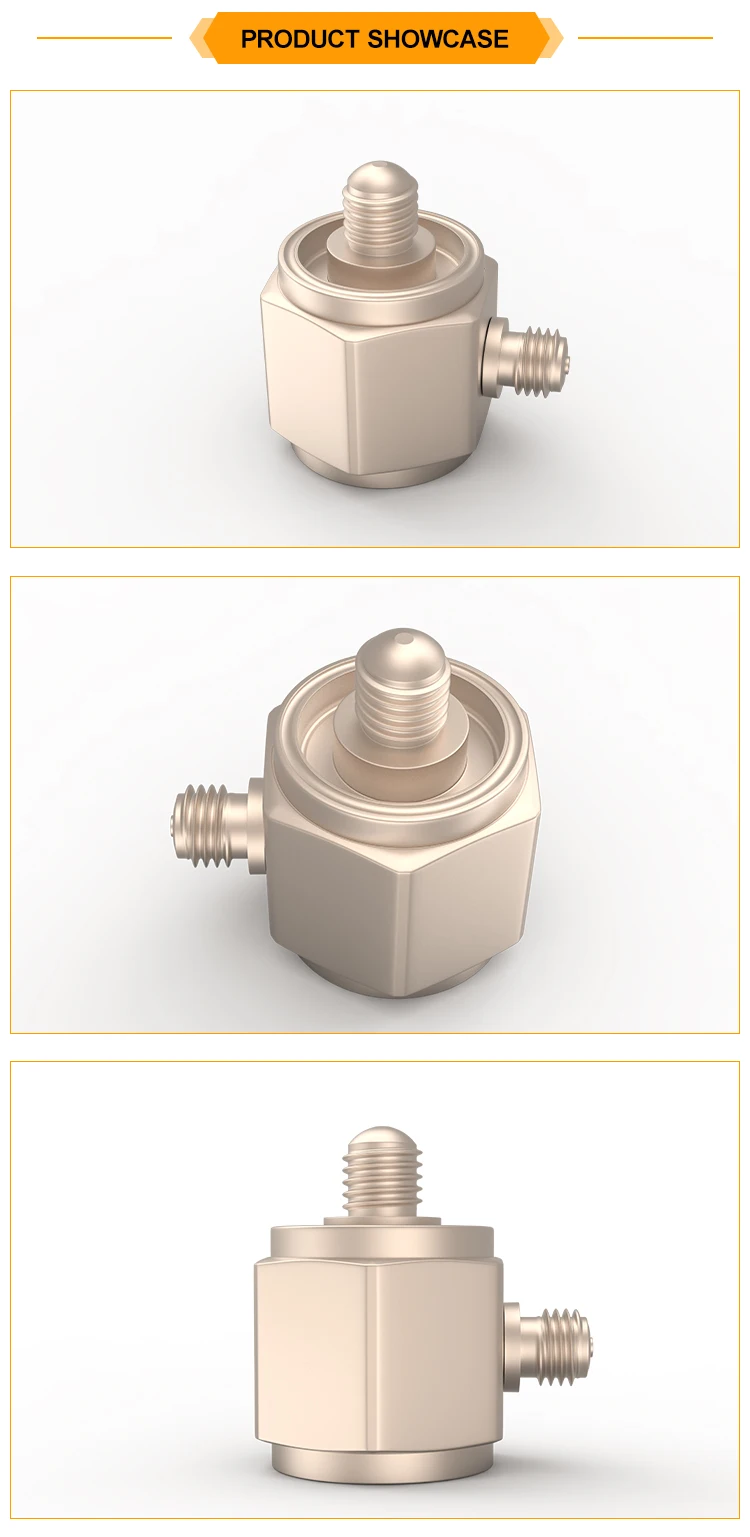

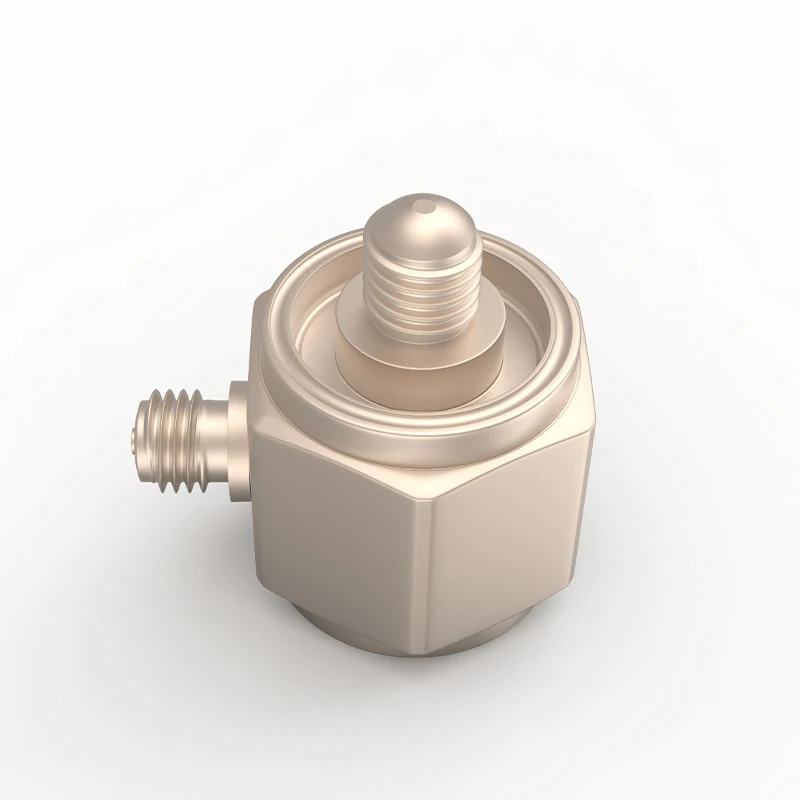

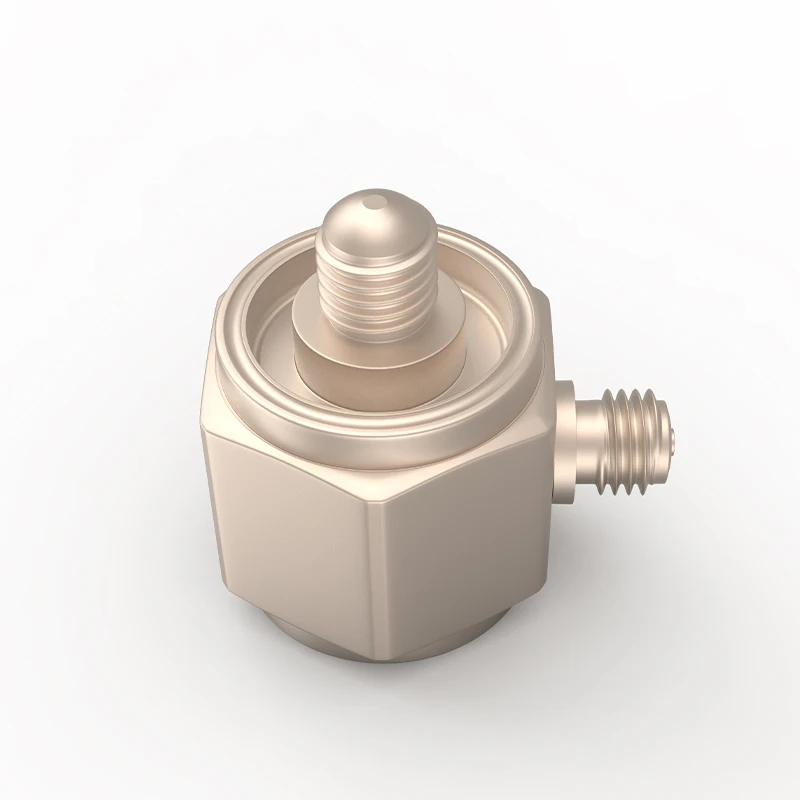

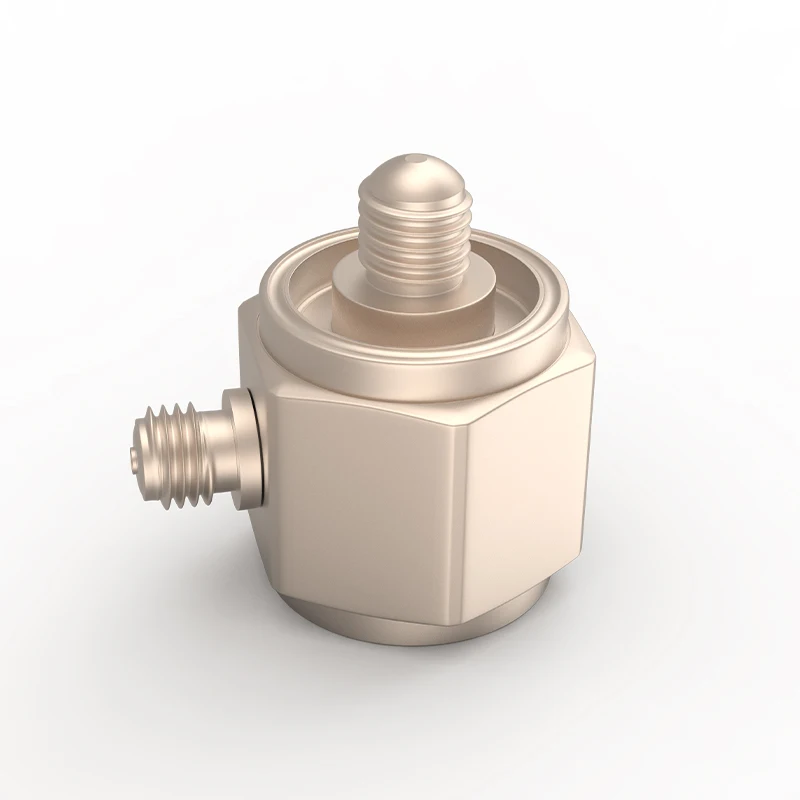

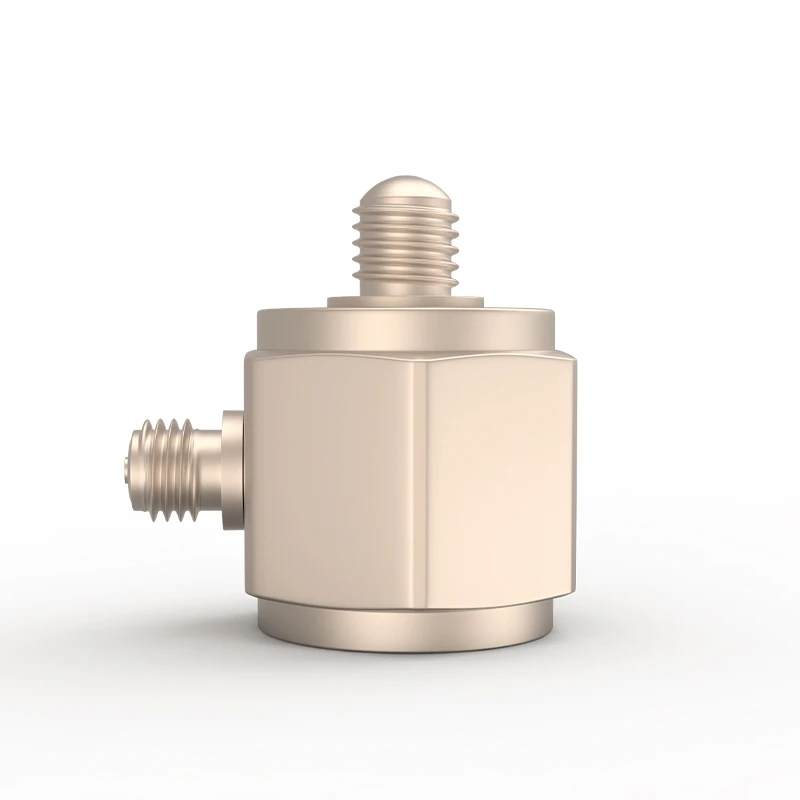

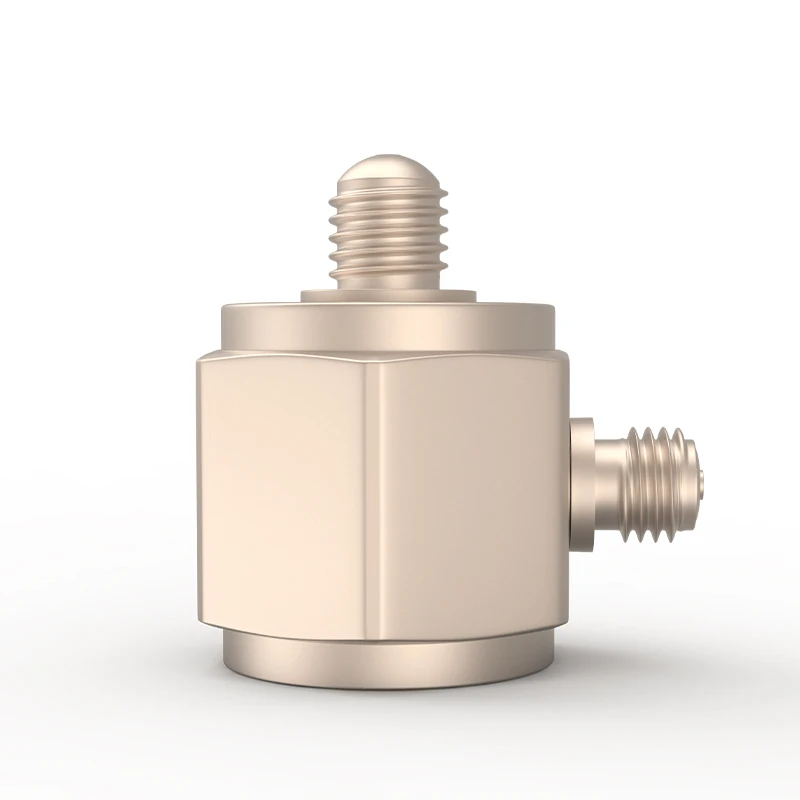

Product Name: JSDCL201LYT High Accuracy Dynamic Quasi-Static Force Sensor
Alternate Name: Vibrator Product for Pressure Measurements
Product Type: Force Sensors & Load Cells
Description:
The JSDCL201LYT is a high-accuracy force sensor designed to measure dynamic and quasi-static forces with exceptional precision. It is particularly suited for pressure measurements in both high-speed and static applications. With its advanced design and sensitivity, this sensor excels in environments requiring high-performance force detection, such as vibration testing and pressure analysis in industrial settings.
Key Features:
High Accuracy: Provides precise measurements for both dynamic and quasi-static forces
Wide Measurement Range: Suitable for various force and pressure measurement applications
Dynamic and Static Testing: Effective in environments where both rapid and steady forces need to be detected
Vibrator Product Integration: Ideal for testing vibration forces and pressure variations in equipment
Durability: Built for reliability in challenging industrial and testing environments
Applications:
Pressure measurements in fluid or gas systems
Vibration testing and analysis in machinery and equipment
Structural health monitoring
Mechanical testing in industrial research and development

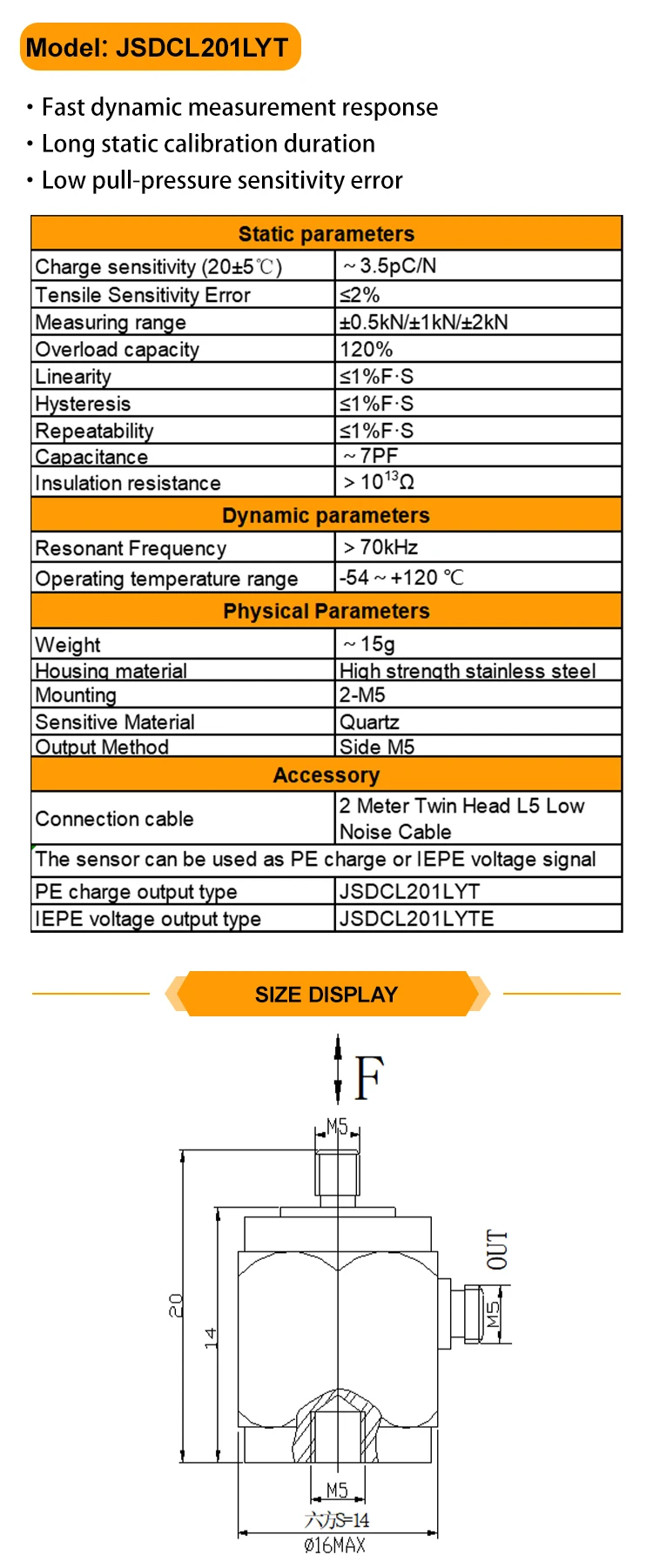

Static parameters |
||
Charge sensitivity (20±5℃) |
～3.5pC/N |
|
Tensile Sensitivity Error |
≤2% |
|
Measuring range |
±0.5kN/±1kN/±2kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～7PF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞70kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
～15g |
|
Housing material |
High strength stainless steel |
|
Mounting |
2-M5 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side M5 |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL201LYT |
|
IEPE voltage output type |
JSDCL201LYTE |
|
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
