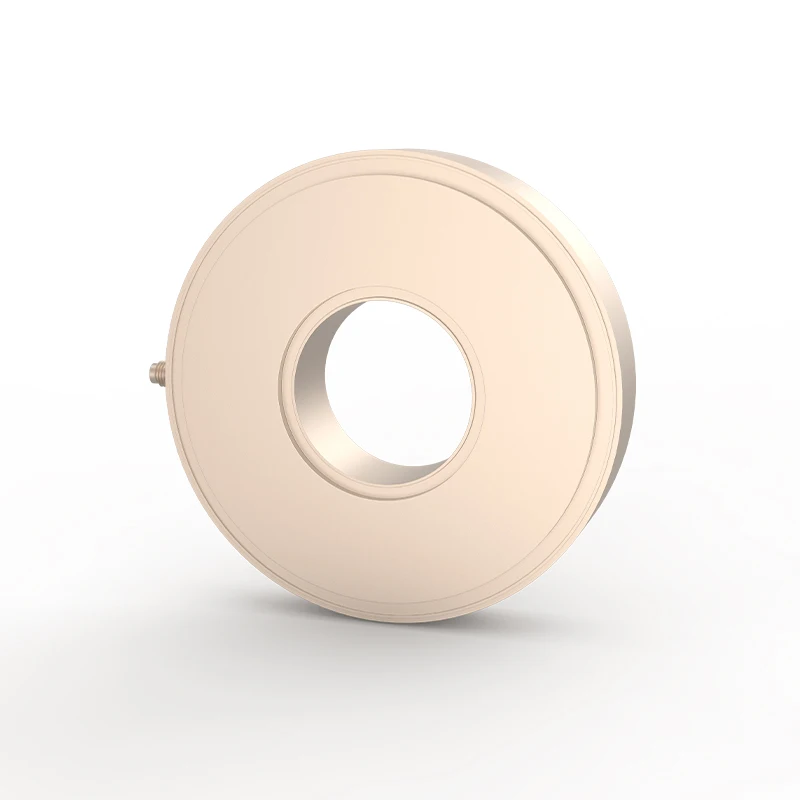

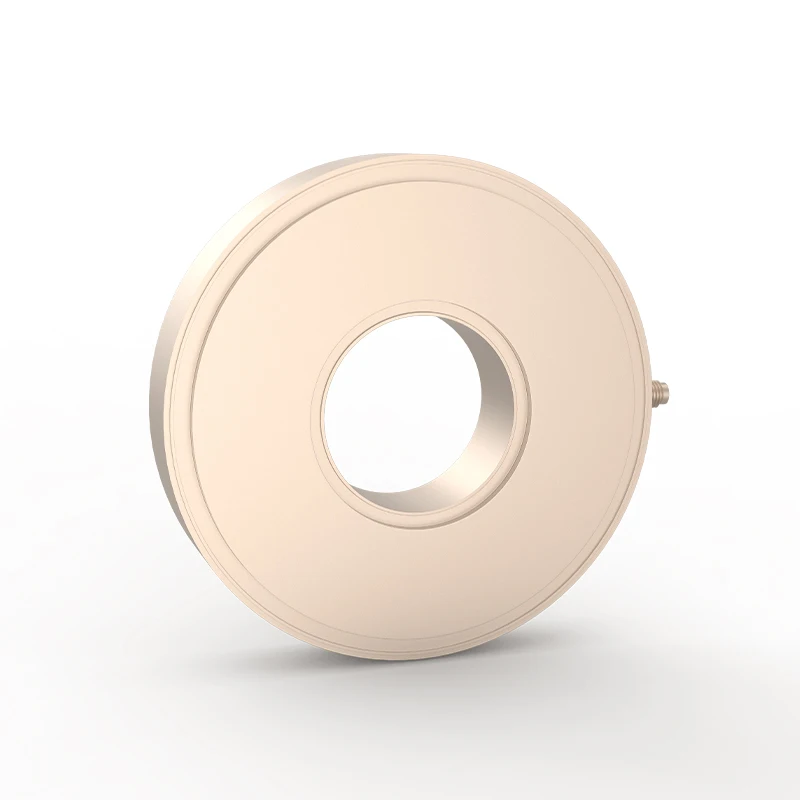

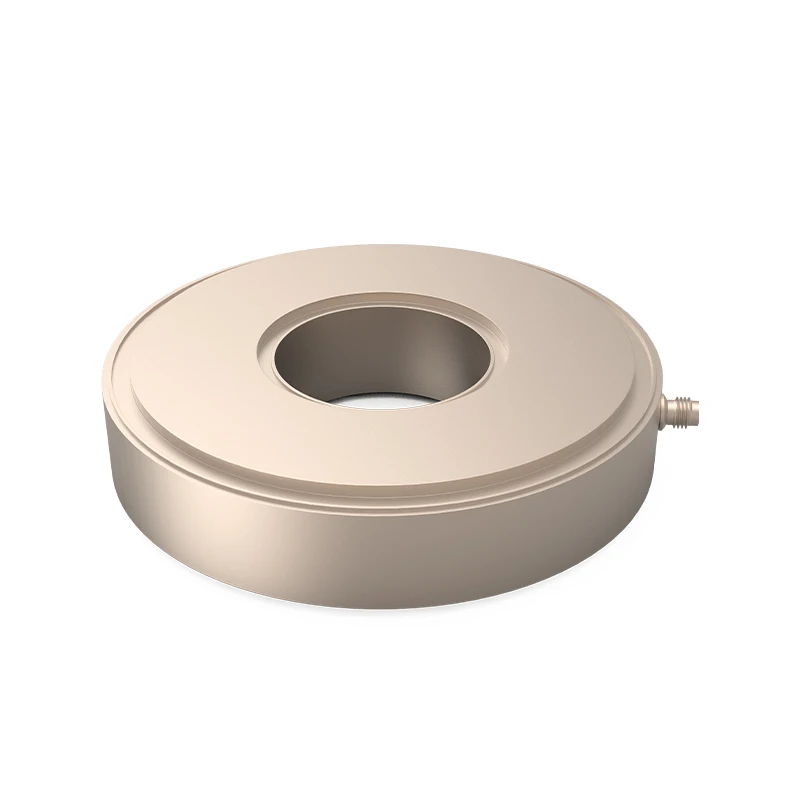

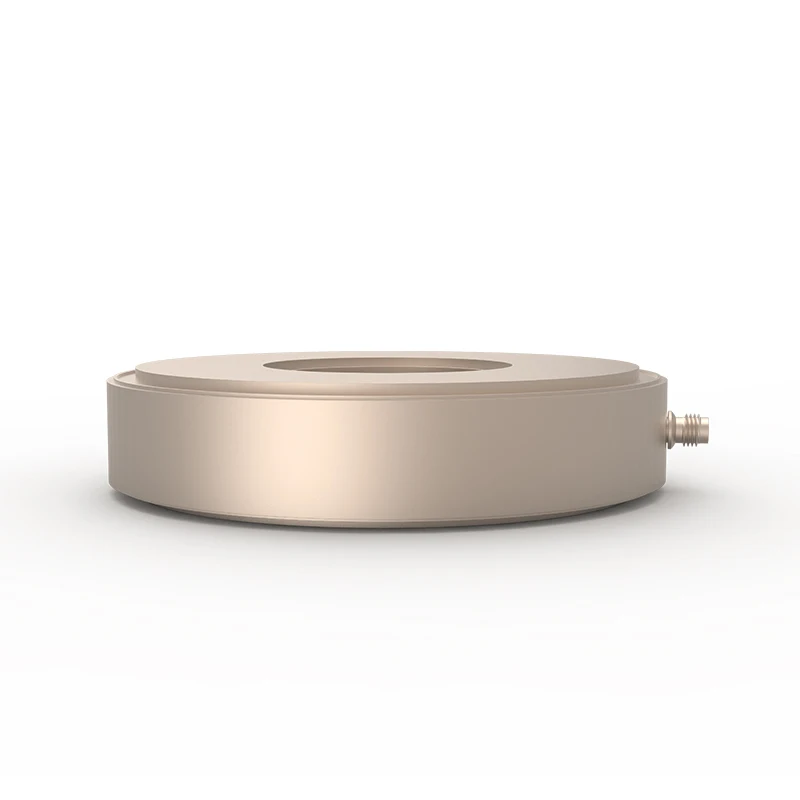

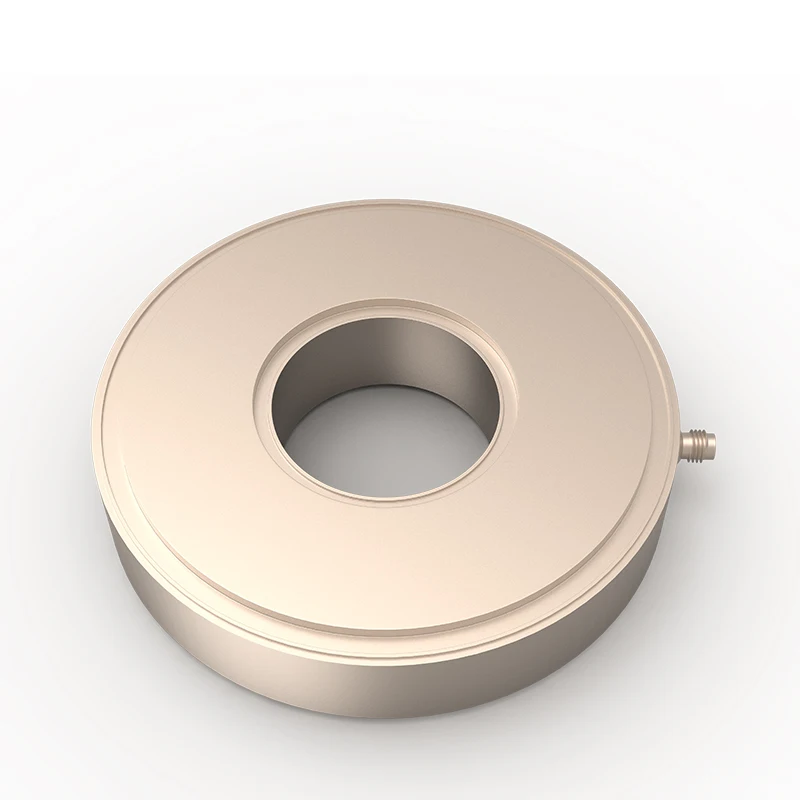

Product Name: JSDCL2000L Single Direction PE Signal Piezoelectric Pressure Sensor
Alternate Name: Fast Response Circular One-Way Force Sensor
Product Type: Piezoelectric Pressure Sensor / Force Sensor / Load Cells
Signal Type: PE Voltage Signal
Measurement Direction: Single Direction (Uniaxial)
Description:
The JSDCL2000L is a high-performance piezoelectric sensor designed for fast-response, single-direction measurement of force and pressure. Its circular design and PE voltage signal output make it highly suitable for dynamic applications where precision and rapid response are essential, such as in force and pressure monitoring within fluid systems and mechanical testing.
Key Features:
Single-Direction Measurement: Ideal for precise force or pressure detection in one axis
PE Voltage Signal Output: Works seamlessly with charge amplifiers for accurate signal processing
Fast Response Time: Designed to capture rapid changes in pressure or force
Circular, Compact Design: Easy to integrate into space-constrained systems
High Sensitivity: Capable of detecting subtle changes in pressure and force
Applications:
Water, fluid, and gas pressure monitoring in dynamic systems
Force measurement in impact and vibration testing
Structural health and mechanical testing
Research and development in materials and mechanical systems
Static parameters |
||
Charge sensitivity (20±5°C) |
～0.4pC/N |
|
Measuring range |
0~2000kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～200pF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞8kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
~3000g |
|
Housing material |
High strength stainless steel |
|
Mounting |
Through hole φ66 (O.D. 170) |
|
Sensitive Material |
Quartz |
|
Output Method |
Side-end TNC socket |
|
Accessory |
||
Connection cable |
2 meter TNC/L5 low noise cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL2000L |
|
IEPE voltage output type |
JSDCL2000LE |
|
