JSDCL060L Fast Response Circular One-Way Measurement PE Voltage Signal Pressure Sensor Piezoelectric Force Sensor Load Cells
- Overview
- Related Products

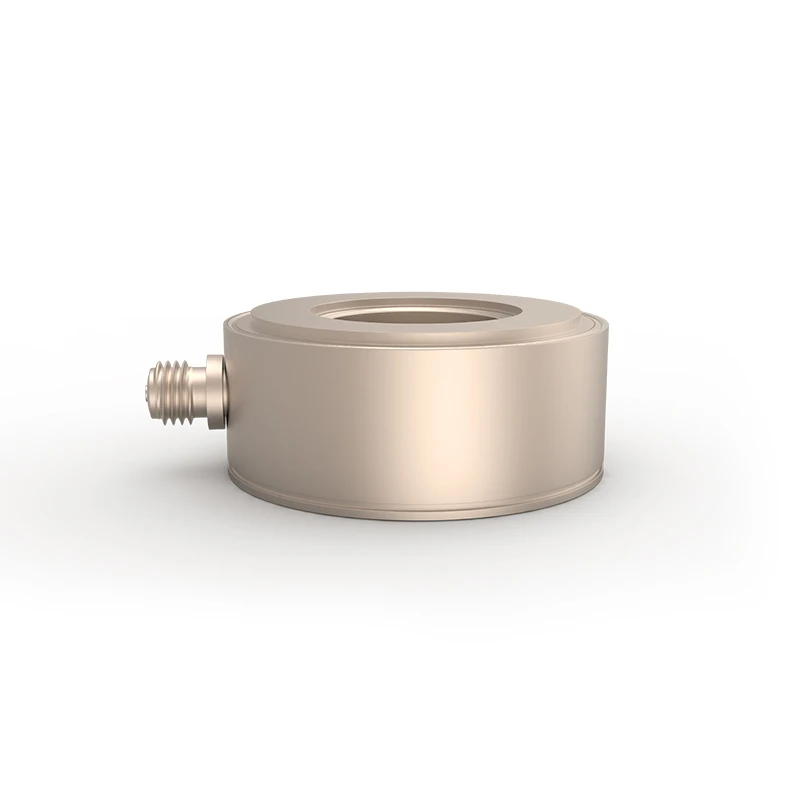

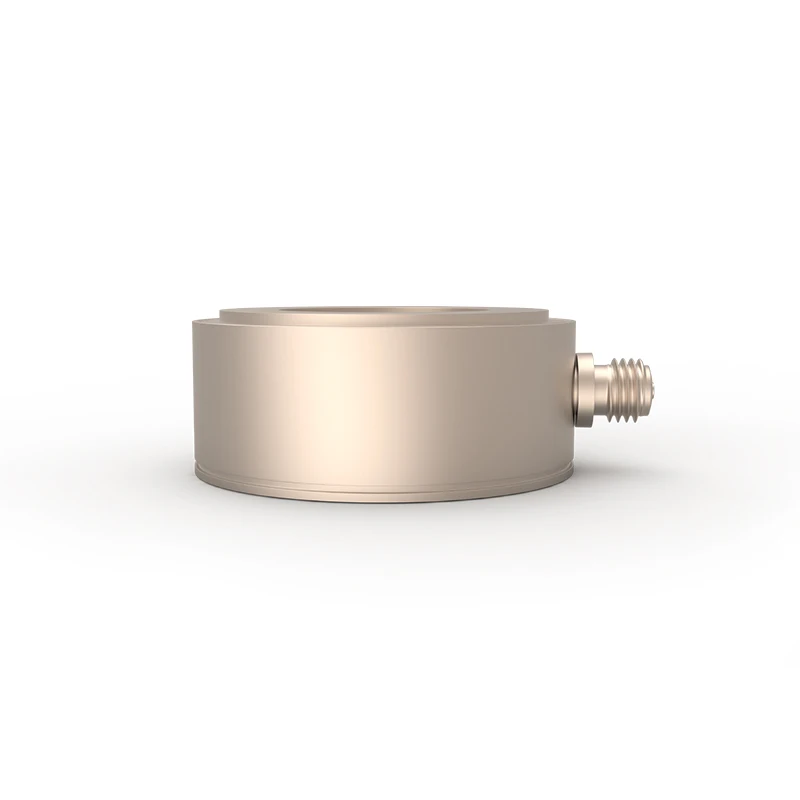

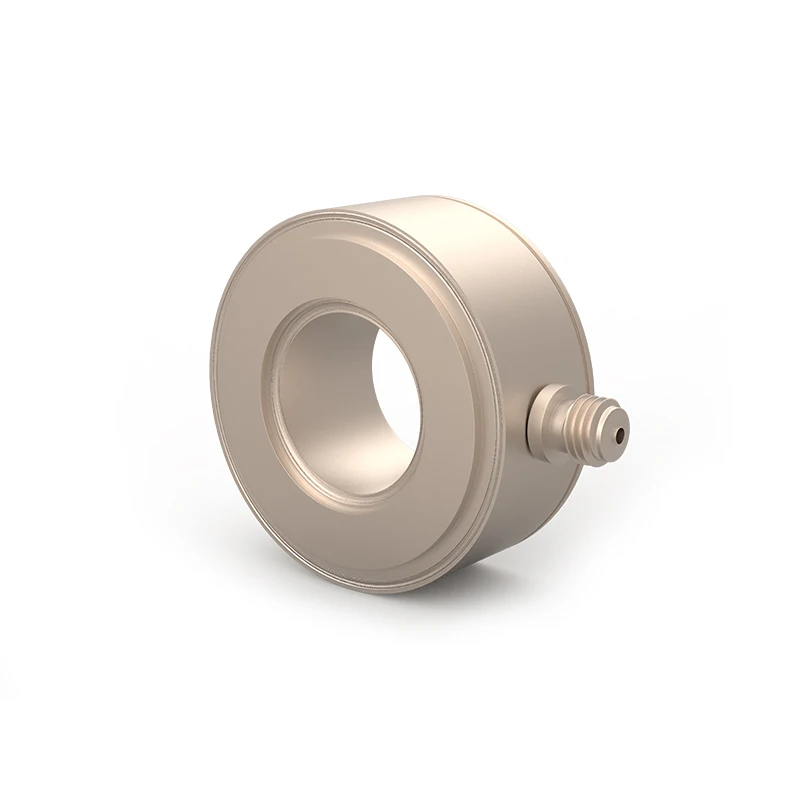

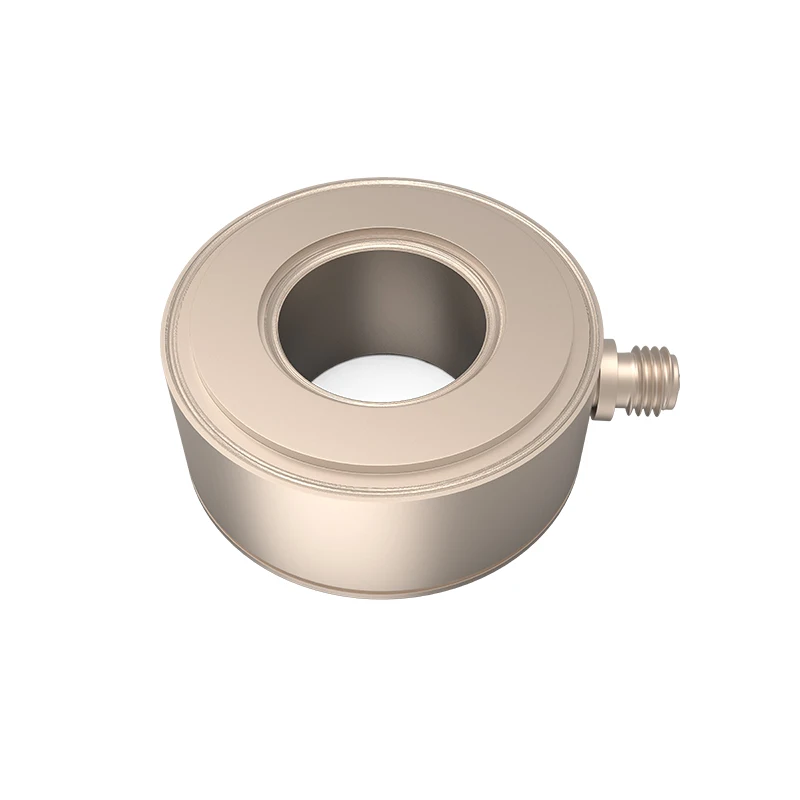

Product Name: JSDCL060L Fast Response Circular One-Way Measurement PE Voltage Signal Pressure Sensor
Product Type: Piezoelectric Force Sensors & Load Cells
Description:
The JSDCL060L is a high-precision piezoelectric pressure sensor designed for fast response circular one-way measurements. Utilizing piezoelectric (PE) voltage signal technology, this sensor offers exceptional sensitivity and accuracy for dynamic pressure detection in various industrial applications. Its one-way measurement design ensures precise force and pressure measurement in unidirectional systems, making it an ideal choice for fast and reliable pressure sensing.
Key Features:
Fast Response: Provides quick and accurate detection of pressure changes, ideal for dynamic and real-time applications
One-Way Circular Measurement: Specially designed for unidirectional pressure measurement in circular configurations
Piezoelectric Technology: High sensitivity and accurate measurement through PE voltage signals, perfect for industrial force sensing applications
High Precision: Delivers reliable and consistent pressure readings even in fluctuating environments
Durable Construction: Built to endure harsh industrial conditions, ensuring long-lasting reliability
Applications:
Pressure measurement in fluid, hydraulic, and pneumatic systems
Force and pressure sensing in industrial machinery and equipment
Research and development in advanced piezoelectric pressure sensing technologies
Load cell applications requiring accurate and rapid response pressure measurements
Static parameters |
||
Charge sensitivity (20±5°C) |
～2pC/N/~4pC |
|
Measuring range |
0~60kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～28pF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞50kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
32 g |
|
Housing material |
High strength stainless steel |
|
Mounting |
Through hole φ13 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 socket |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL060L |
|
IEPE voltage output type |
JSDCL060LE |
|
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
