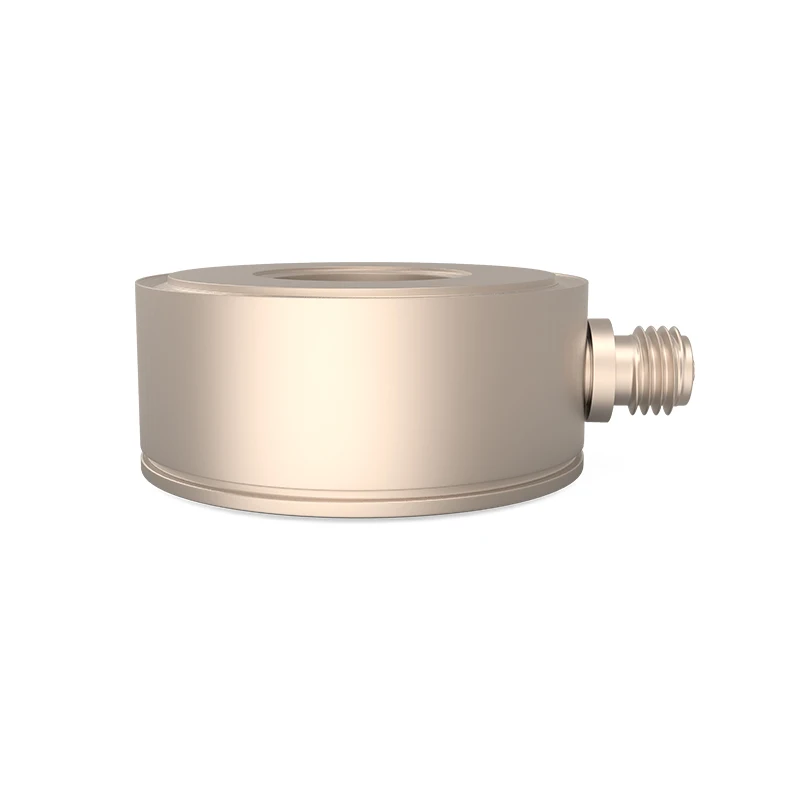

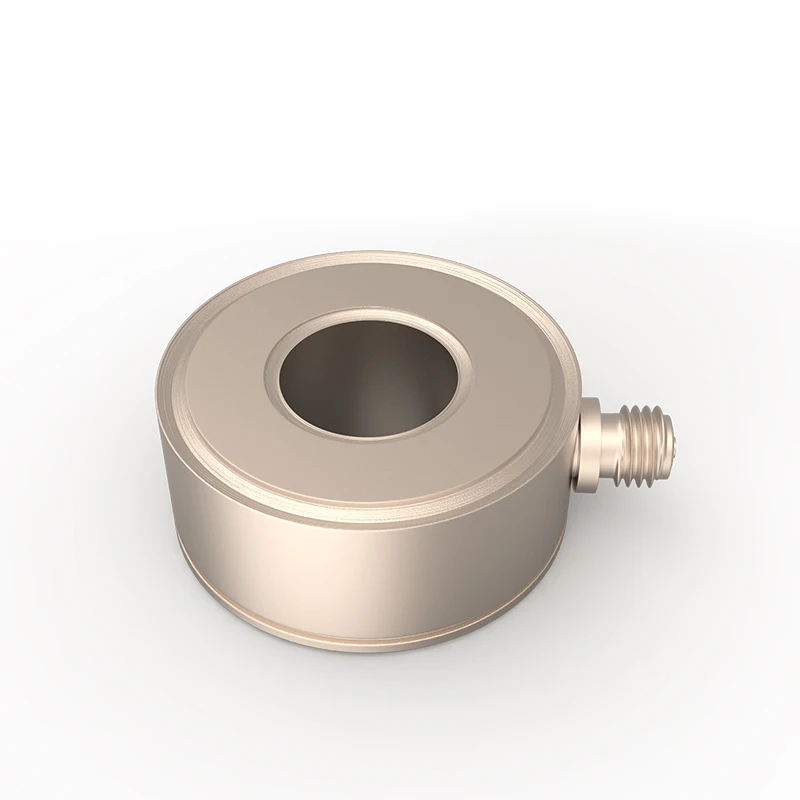

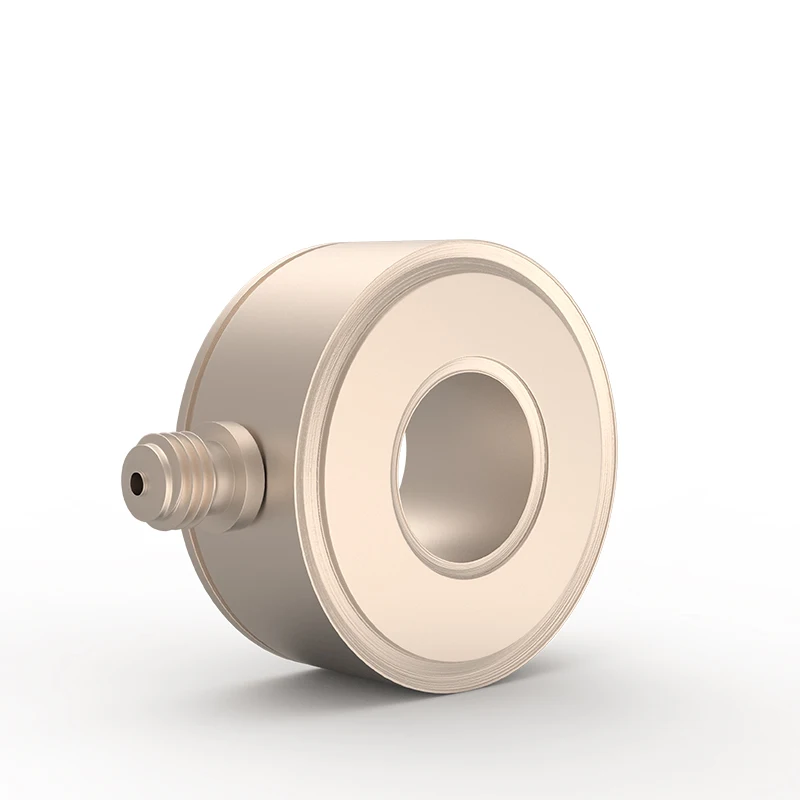

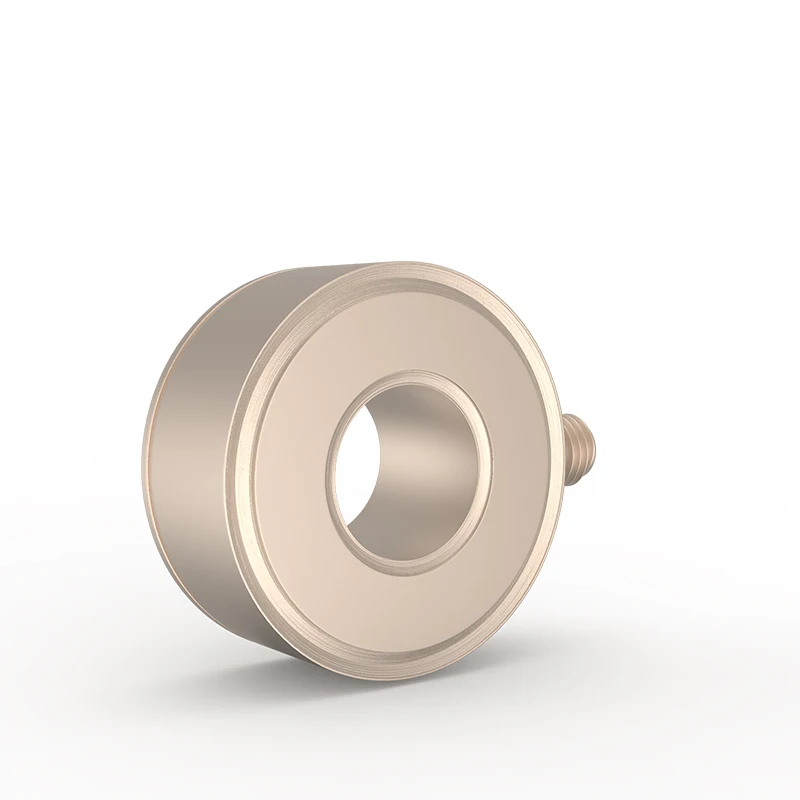

🔧 JSDCL030LA Fast-Response Piezoelectric Force Sensor
Circular Design | One-Way Dynamic Measurement | Charge (PE) & ICP®/IEPE Output | Pressure Sensor
The JSDCL030LA is a precision-engineered piezoelectric force sensor designed for fast response and one-way dynamic pressure or force measurement. With support for both Charge (PE) and ICP®/IEPE voltage output, this sensor provides flexibility in signal integration and high performance in real-time monitoring applications. Its compact circular design allows for easy installation in space-limited setups.
🔍 Key Features:
Fast response time for capturing rapid force changes
Dual signal output: PE (Charge) and ICP®/IEPE (Voltage)
Optimized for one-way dynamic pressure/force measurements
High sensitivity and wide dynamic range
Durable construction suitable for industrial environments
Easy to integrate with existing DAQ systems
📌 Typical Applications:
Dynamic pressure and impact testing
Industrial force monitoring systems
Vibration and mechanical shock analysis
Robotic feedback systems
Material testing and quality control

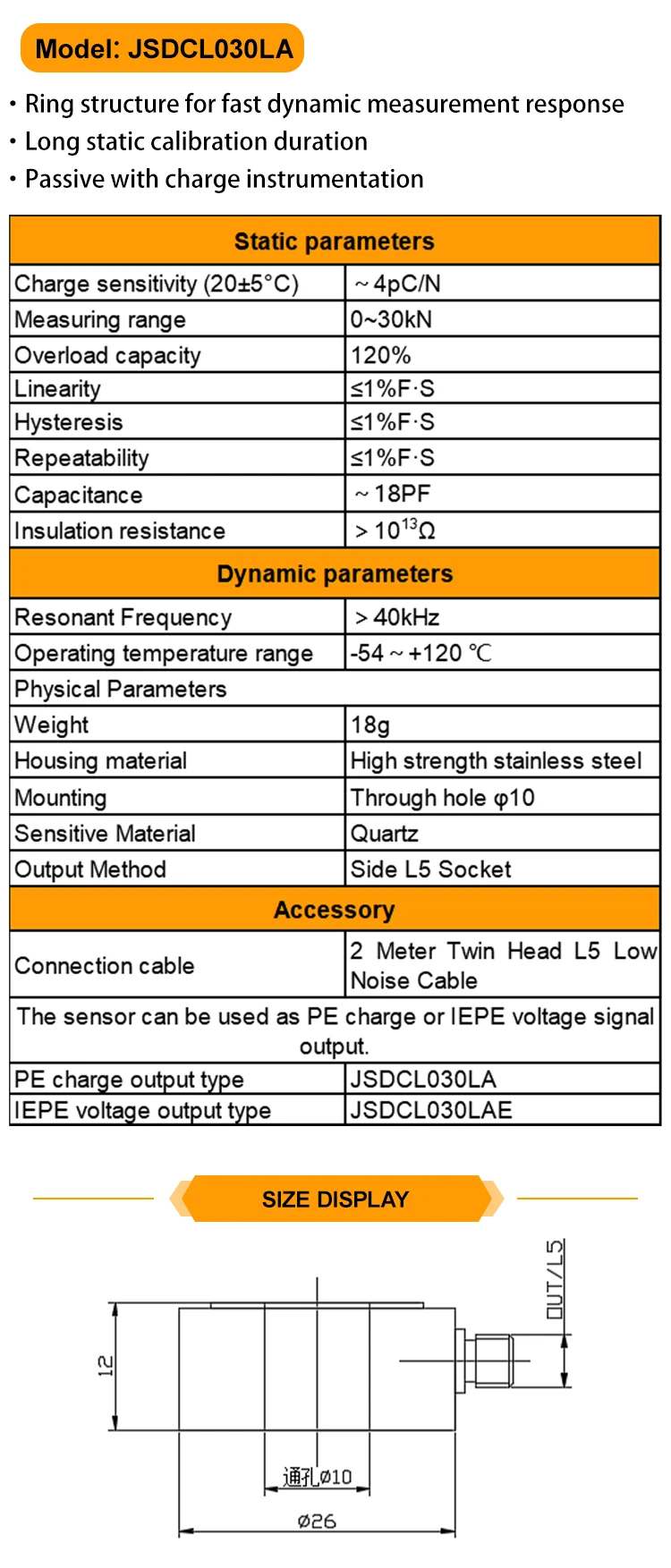

Static parameters |
||
Charge sensitivity (20±5°C) |
～4pC/N |
|
Measuring range |
0~30kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～18pF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞40kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
18 g |
|
Housing material |
High strength stainless steel |
|
Mounting |
Through hole φ10 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 socket |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL030LA |
|
IEPE voltage output type |
JSDCL030LAE |
|
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
