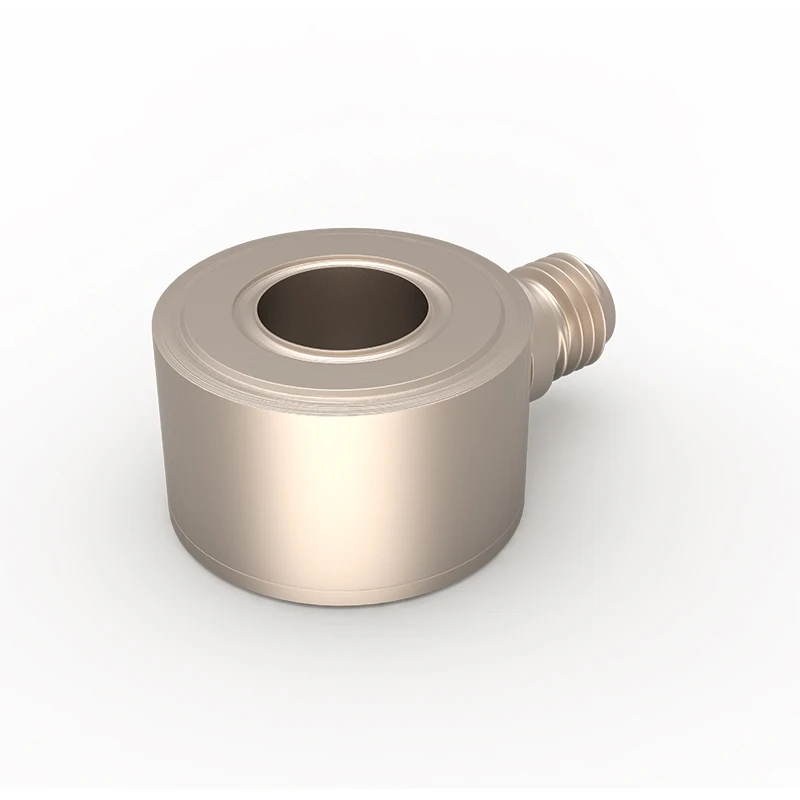

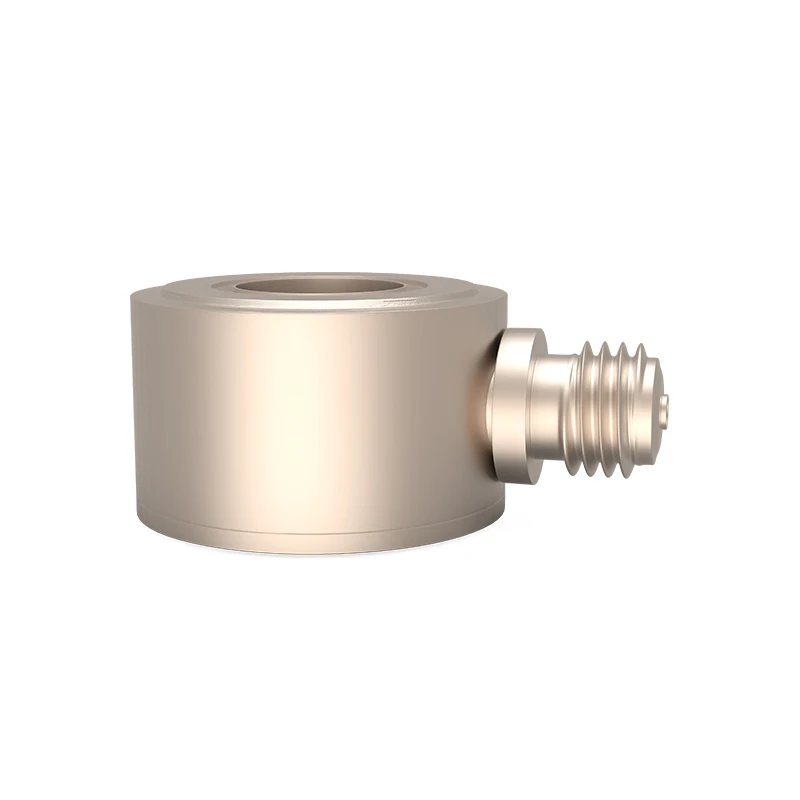

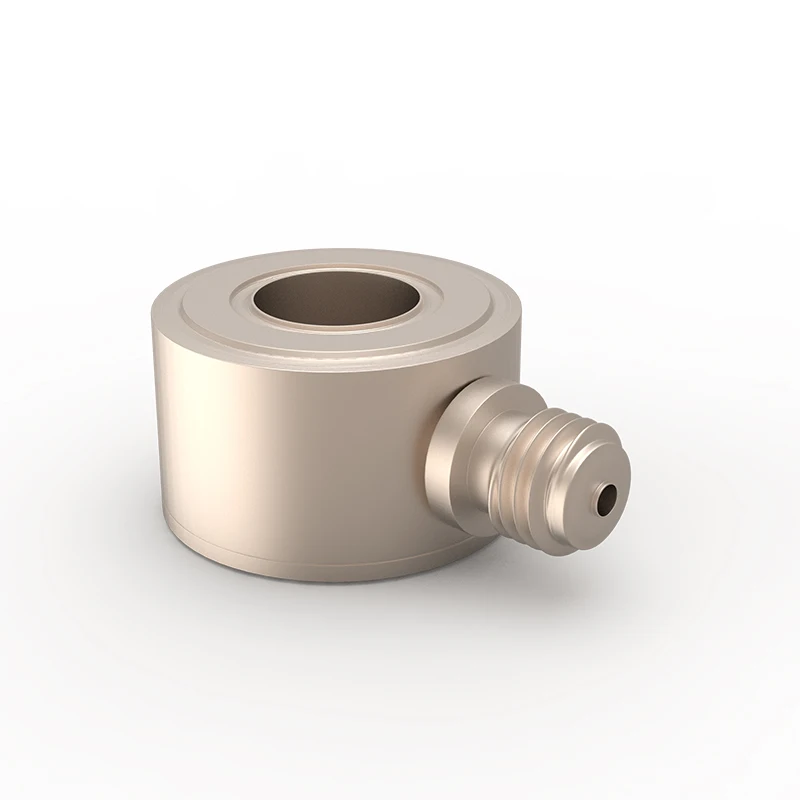

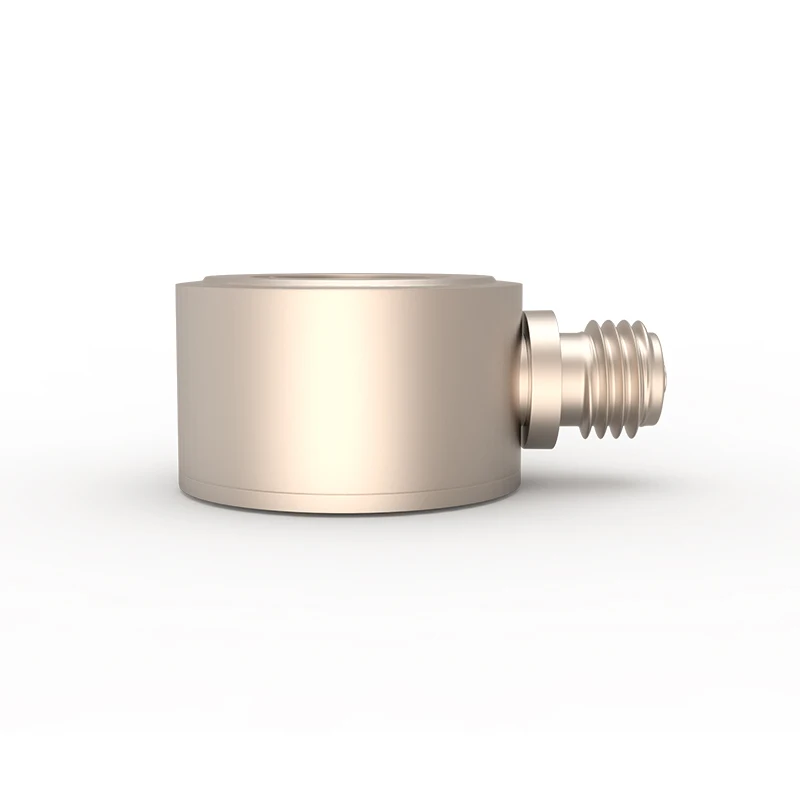

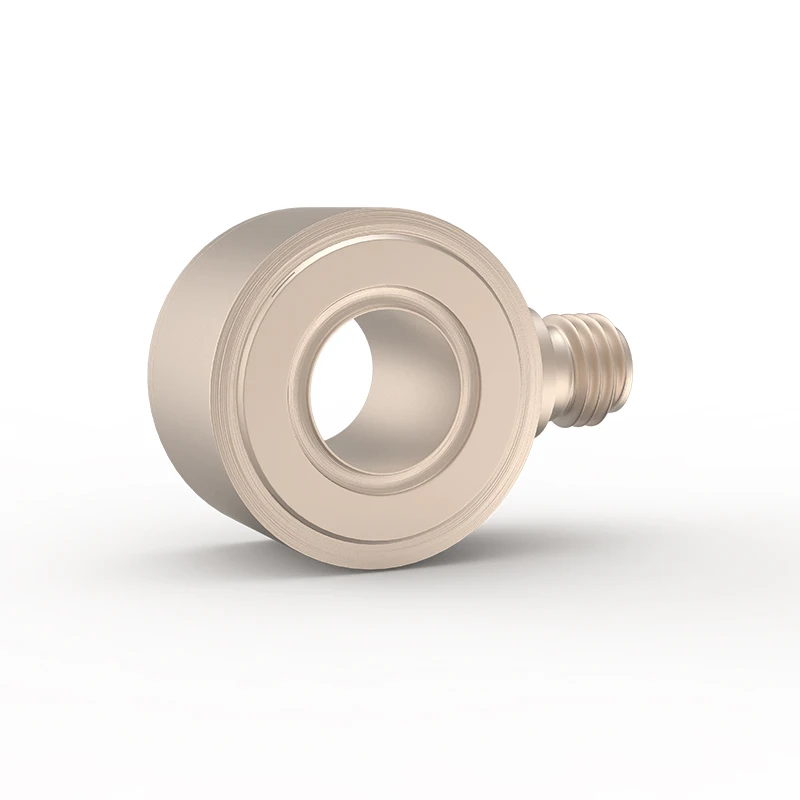

🔵 JSDCL015L Piezoelectric Force Sensor
Circular Design | One-Way Force Measurement | Charge (PE) / ICP® / IEPE Signal Output
The JSDCL015L is a compact, high-performance piezoelectric force sensor designed for precise one-way dynamic pressure and force measurements. Its circular form factor makes it easy to install in tight spaces, while its support for both PE (charge output) and ICP®/IEPE (voltage output) signals ensures seamless integration into a wide range of data acquisition systems.
🔧 Key Features:
Piezoelectric sensing technology for high sensitivity and fast response
One-way dynamic force measurement, ideal for impact or pressure monitoring
Output signal options: Charge (PE) or Voltage (ICP® / IEPE)
Compact circular design for flexible installation
Excellent linearity and wide dynamic range
Durable construction suitable for industrial environments
📌 Applications:
Pressure and impact testing
Machinery and structural health monitoring
Dynamic force detection in automation systems
Laboratory material testing
Robotics and mechatronic force feedback
Static parameters |
||
Charge sensitivity (20±5°C) |
～4pC/N |
|
Measuring range |
0~15kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～10pF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞70kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
5.8 g |
|
Housing material |
High strength stainless steel |
|
Mounting |
Through hole φ6 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 socket |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL015L |
|
IEPE voltage output type |
JSDCL015LE |
|
