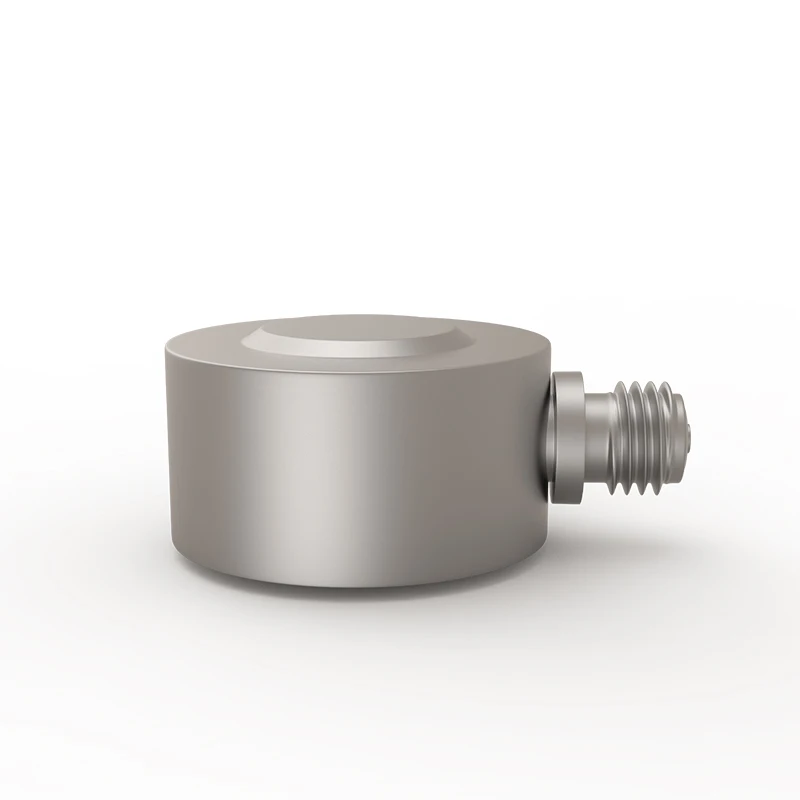

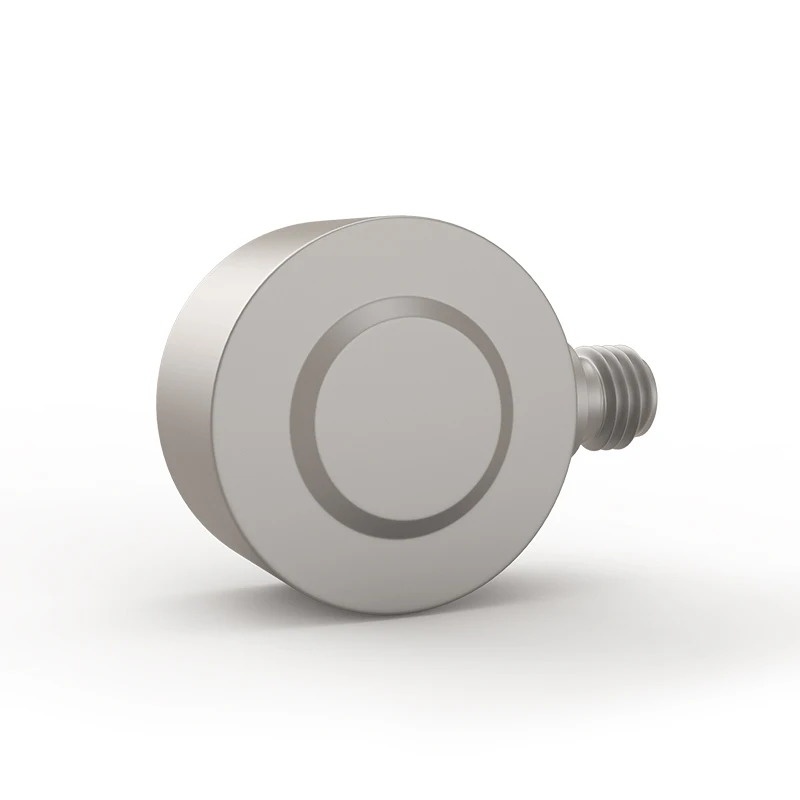

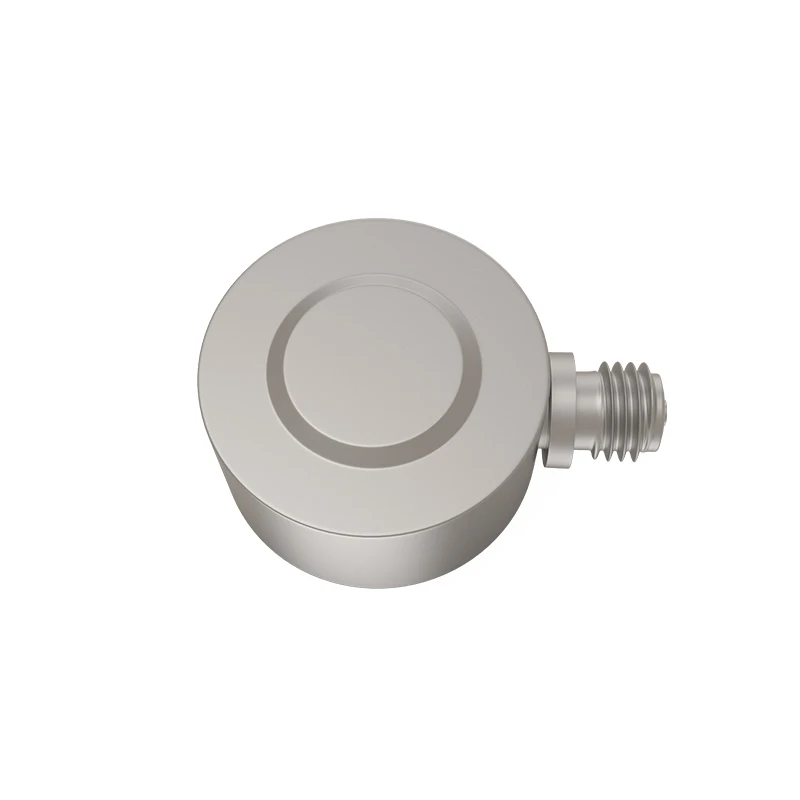

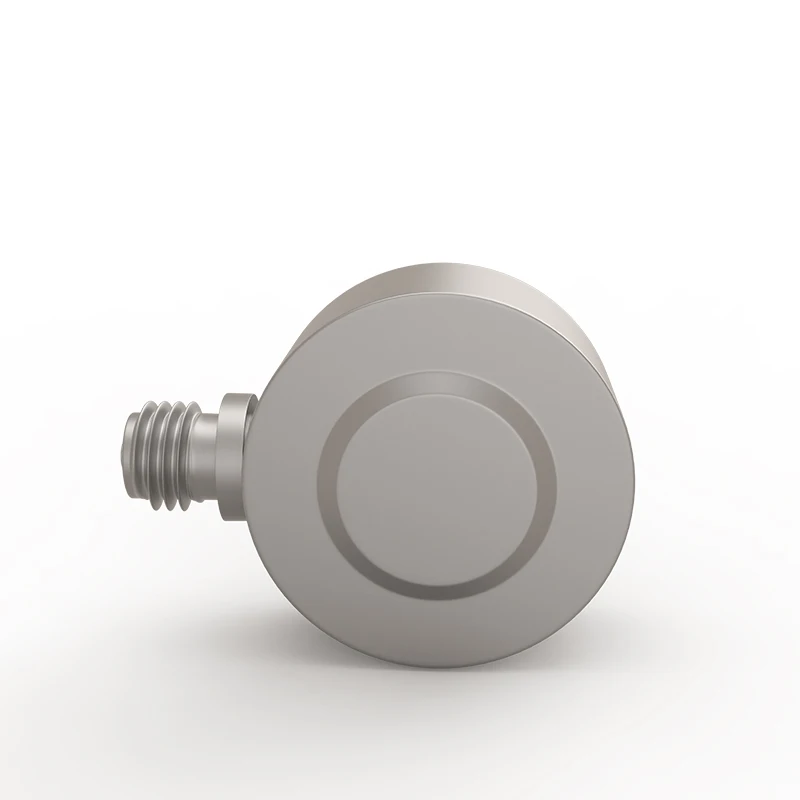

⚙ JSDCL005LA Fast-Response Piezoelectric Pressure Sensor
Circular Design | One-Way Force Measurement | Charge (PE) Voltage Output | High-Speed Response
The JSDCL005LA is a high-sensitivity piezoelectric force and pressure sensor featuring a fast response time and circular compact design, ideal for one-way dynamic load and impact measurements. Designed for precision and durability, it outputs a Charge (PE) signal, making it highly compatible with professional data acquisition systems in industrial and research environments.
🔧 Key Features:
Ultra-fast dynamic response for capturing transient forces
Charge output (PE) for high-precision measurements
Compact circular structure for easy integration
Optimized for one-way force/pressure measurements
High stiffness and excellent frequency response
Stable and reliable in complex testing environments
📌 Applications:
High-speed impact and pressure testing
Vibration and shock force analysis
Precision industrial automation
Dynamic measurement in robotic systems
Quality control and materials research
Static parameters |
||
Charge sensitivity (20±5°C) |
～4pC/N |
|
Measuring range |
0~5kN |
|
Overload capacity |
120 ％ |
|
Linearity |
≤1%F·S |
|
Hysteresis |
≤1%F·S |
|
Repeatability |
≤1%F·S |
|
Capacitance |
～6PF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
＞70kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
12g |
|
Housing material |
High strength stainless steel |
|
Mounting |
Glue or Fixture |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 Socket |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL005LA |
|
IEPE voltage output type |
JSDCL005LAE |
|
