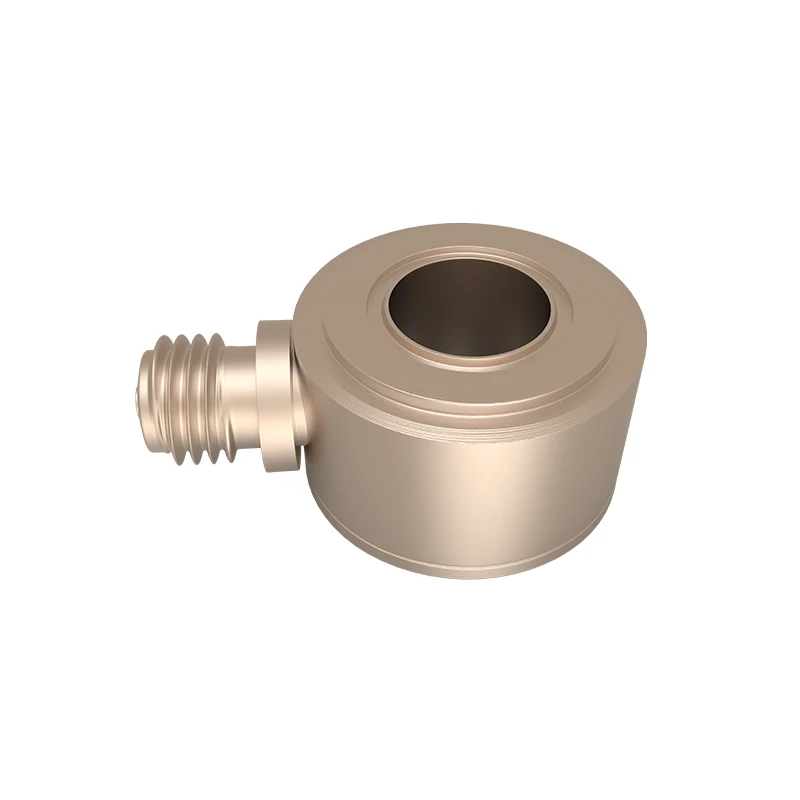

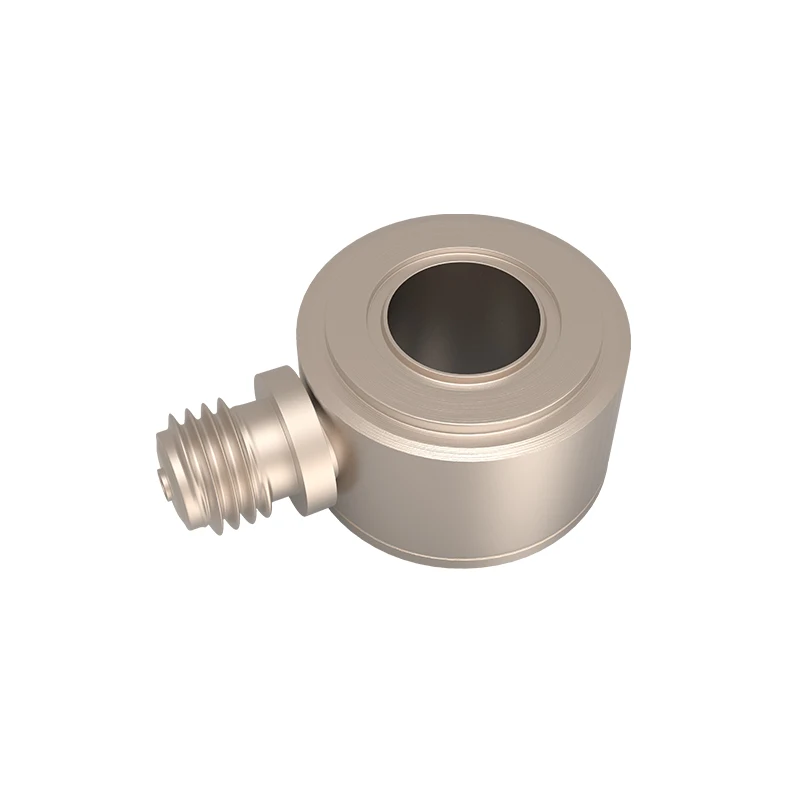

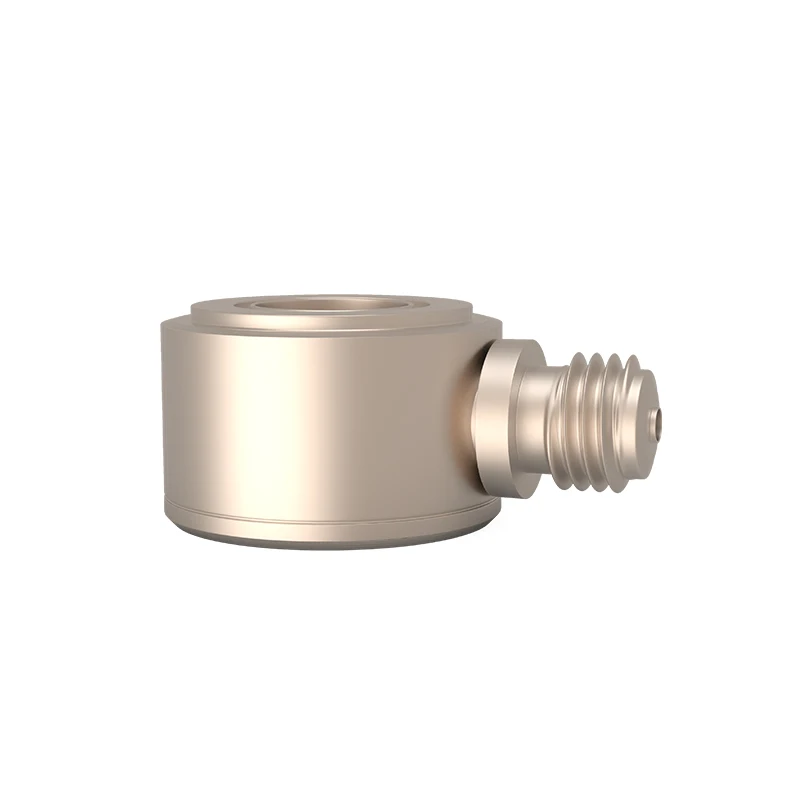

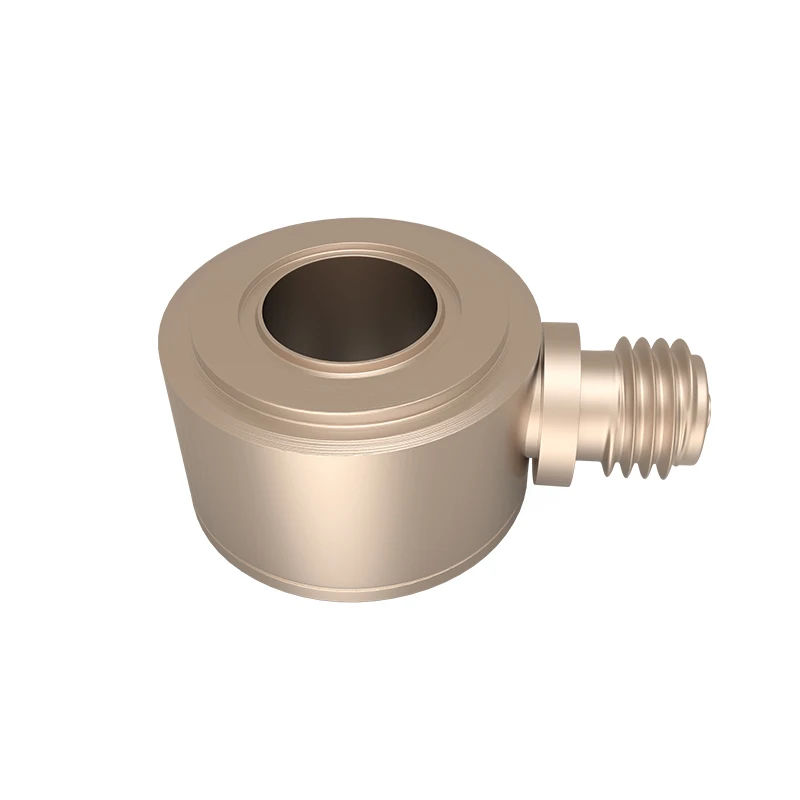

🌀 JSDCL005L Micro Load Cell
Fast One-Way Force Measurement | Piezoelectric Sensor | PE Voltage / ICP® Signal | Circular Design
The JSDCL005L is a high-sensitivity micro piezoelectric force sensor designed for fast, one-way dynamic force measurements. With its compact circular structure, this sensor delivers rapid response and precise force detection in space-constrained environments. Supporting PE (charge output) and ICP® (voltage output) signal types, it integrates easily into various electronic data acquisition systems.
🔧 Key Features:
Compact, circular design – ideal for limited installation spaces
Piezoelectric sensing for high sensitivity and rapid response
One-way dynamic force measurement
Dual output formats: PE (Charge) or ICP® (Voltage)
High natural frequency, excellent linearity
Suitable for micro-force and dynamic testing applications
📌 Applications:
Impact and dynamic load testing
Micro-mechanical and material experiments
Robotics and precision equipment
Industrial quality control systems
High-speed automated testing setups
Static parameters |
||
Charge sensitivity (20±5°C) |
~4pC/N |
|
Measuring range |
0~5kN |
|
Overload capacity |
120％ |
|
Linearity |
≤1%F-S |
|
Hysteresis |
≤1%F-S |
|
Repeatability |
≤1%F-S |
|
Capacitance |
～6.8pF |
|
Insulation resistance |
＞1013Ω |
|
Dynamic parameters |
||
Resonant Frequency |
>75kHz |
|
Operating temperature range |
-54～+120 ℃ |
|
Physical Parameters |
||
Weight |
4 g |
|
Housing material |
High strength stainless steel |
|
Mounting |
Through hole φ4 |
|
Sensitive Material |
Quartz |
|
Output Method |
Side L5 socket |
|
Accessory |
||
Connection cable |
2 Meter Twin Head L5 Low Noise Cable |
|
The sensor can be used as PE charge or IEPE voltage signal output. |
||
PE charge output type |
JSDCL005L |
|
IEPE voltage output type |
JSDCL005LE |
|
