JSD-SCR50200A Online Infrared Temperature Sensor Response Speed Less than 50ms 500~2000℃ Temperature Instrument
- Overview
- Related Products

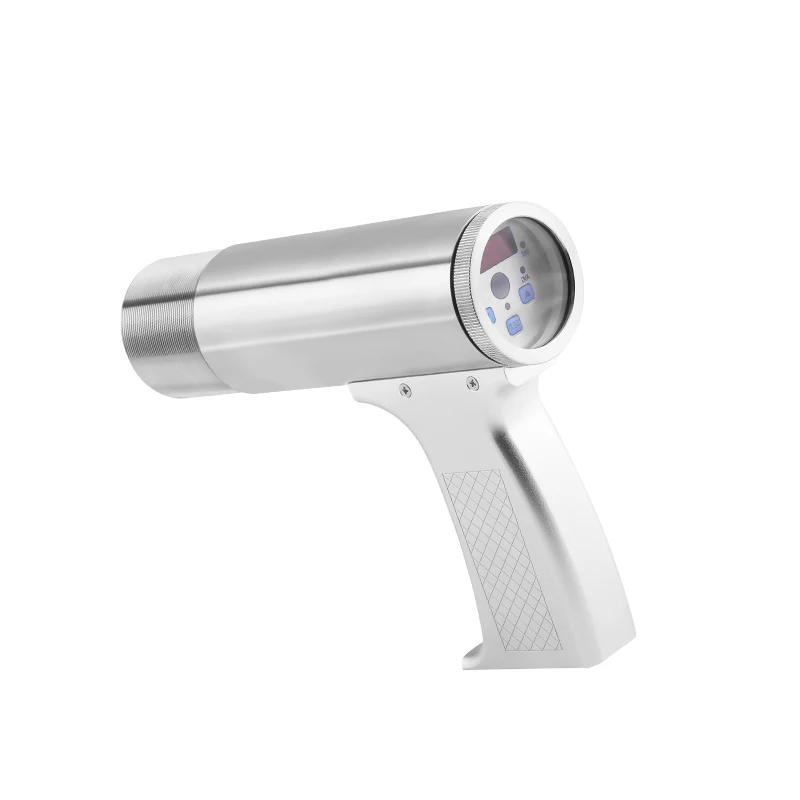

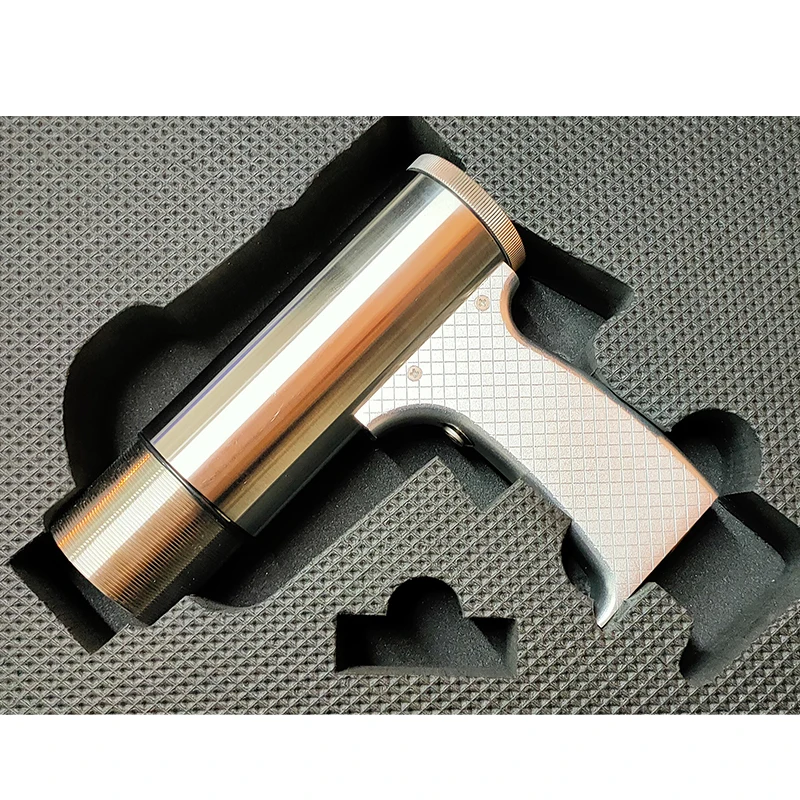

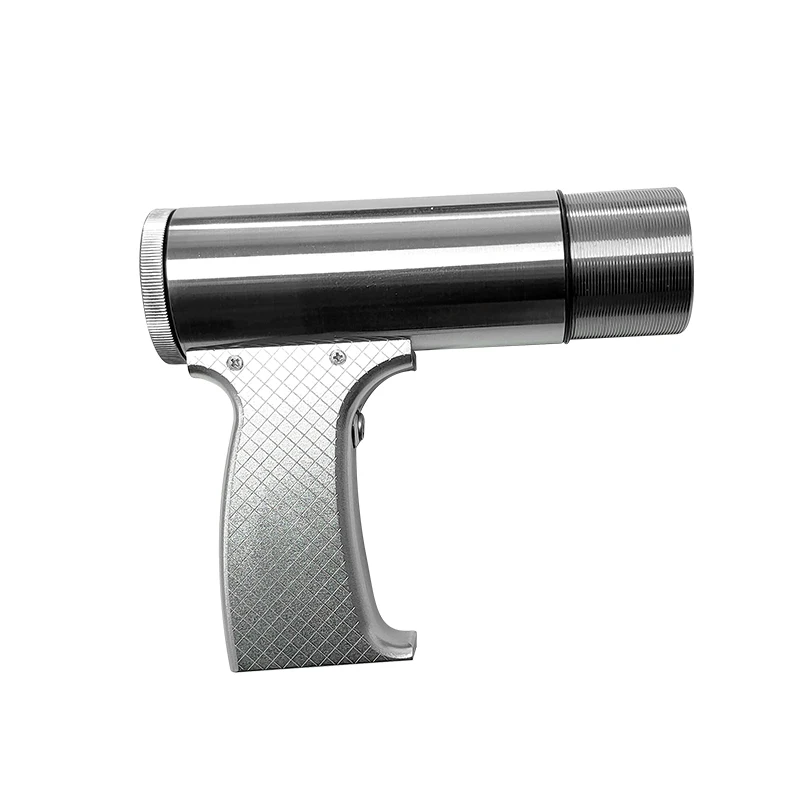

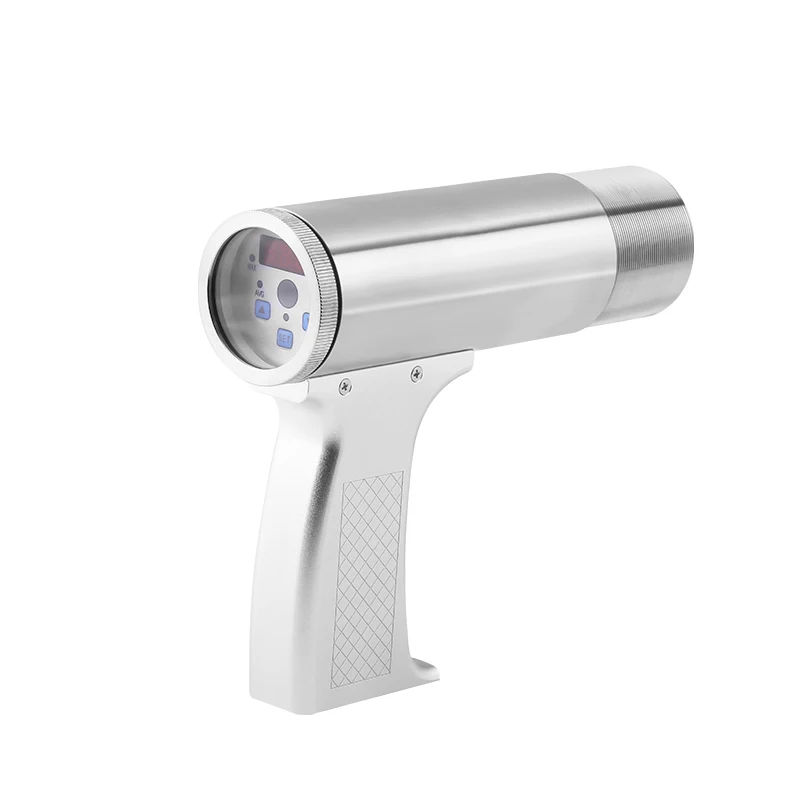

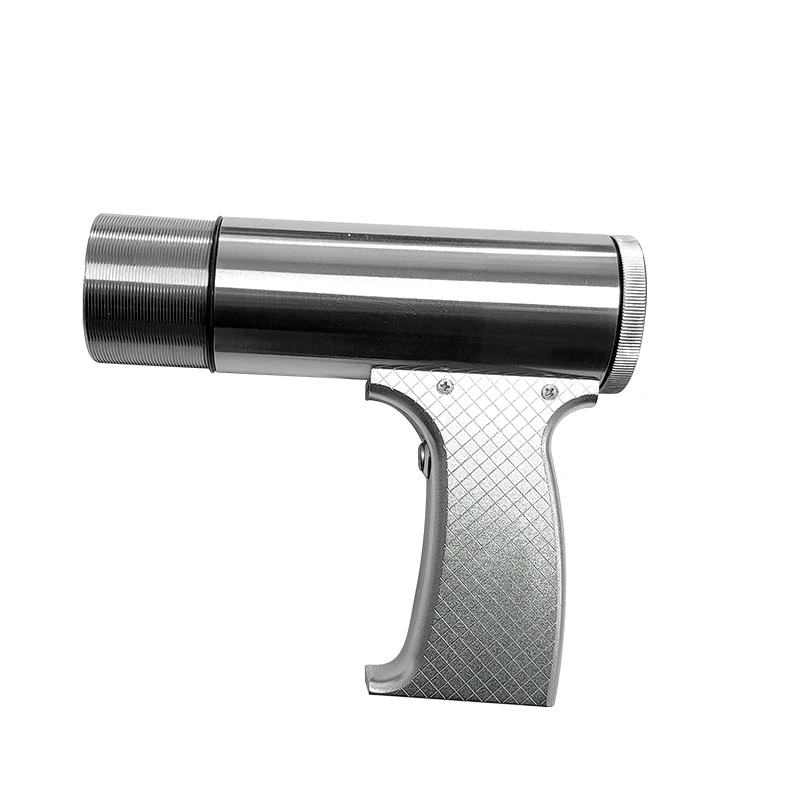

Product Name: JSD-SCR50200A Online Infrared Temperature Sensor
Temperature Range: 500~2000℃
Response Speed: Less than 50ms
Product Type: Industrial Infrared Temperature Sensor / Temperature Instrument
Description:
The JSD-SCR50200A is a high-performance online infrared temperature sensor designed for ultra-fast, non-contact temperature measurement in high-temperature industrial environments. With an impressive temperature range of 500~2000℃ and a rapid response time of less than 50ms, this sensor is ideal for critical processes requiring real-time temperature data, such as metal forging, glass production, and cement manufacturing.
Key Features:
Non-Contact Infrared Measurement: Ensures accurate temperature readings without direct surface contact
Wide Temperature Range (500~2000℃): Suitable for extreme heat applications in metal, glass, and other high-temperature industries
Ultra-Fast Response (Less than 50ms): Provides near-instantaneous temperature feedback for rapid process control
Continuous Online Monitoring: Designed for 24/7 temperature monitoring and integration into automated systems
High Accuracy and Stability: Offers reliable, precise measurements even in the harshest conditions
Durable and Reliable Design: Built to withstand demanding industrial environments for long-term operation
Typical Applications:
Steel and metal manufacturing
Glass production and ceramics
Cement kilns and industrial furnaces
High-temperature process monitoring in energy and utilities
Continuous temperature measurement for automated control systems
model |
JSD-SCR30140A |
JSD-SCR50200A |
JSD-SCR20120A/JSD-SCR15120A |
JSD-SCR30180A/JSD-SCR20180A |
JSD-SCR50250A |
JSD-SCR100300A |
JSD-SCR50320A |
||||||||
temperature range |
300℃~1400℃ |
500℃~2000℃ |
200℃~1200℃/150℃~1200℃ |
300℃~1800℃/200℃~1800℃ |
500℃~2500℃ |
1000℃~3000℃ |
500℃~3200℃ |
||||||||
Measurement accuracy |
±(0.5% of measured value±2℃) |
||||||||||||||
Repeat accuracy |
0.3% of measured value |
||||||||||||||
distance coefficient |
400：1 |
||||||||||||||
Aiming method |
coaxial laser aiming |
Visual aiming |
|||||||||||||
Emissivity |
0.10~1.00 adjustable, step size 0.01 |
||||||||||||||
Response speed |
≤ 50 ms, the fastest is 20ms |
||||||||||||||
Resolution |
Display temperature resolution 1℃ |
||||||||||||||
time interval |
1~30 seconds in steps of 1 second |
||||||||||||||
Temperature measurement method |
Three temperature measurement methods: instantaneous value (TEM), maximum value (MAX), and average value (AVG) |
||||||||||||||
Working band |
1.7um-2.6um |
||||||||||||||
Electrical parameters |
9V DC ±10% |
||||||||||||||
working temperature |
-10℃~60℃ |
||||||||||||||
Environmental parameters |
Working temperature 0℃～60℃, storage temperature -20℃～60℃ |
||||||||||||||
Protection level |
IP65 protection level |
||||||||||||||
size |
Diameter 50mm, length 152mm |
||||||||||||||
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
