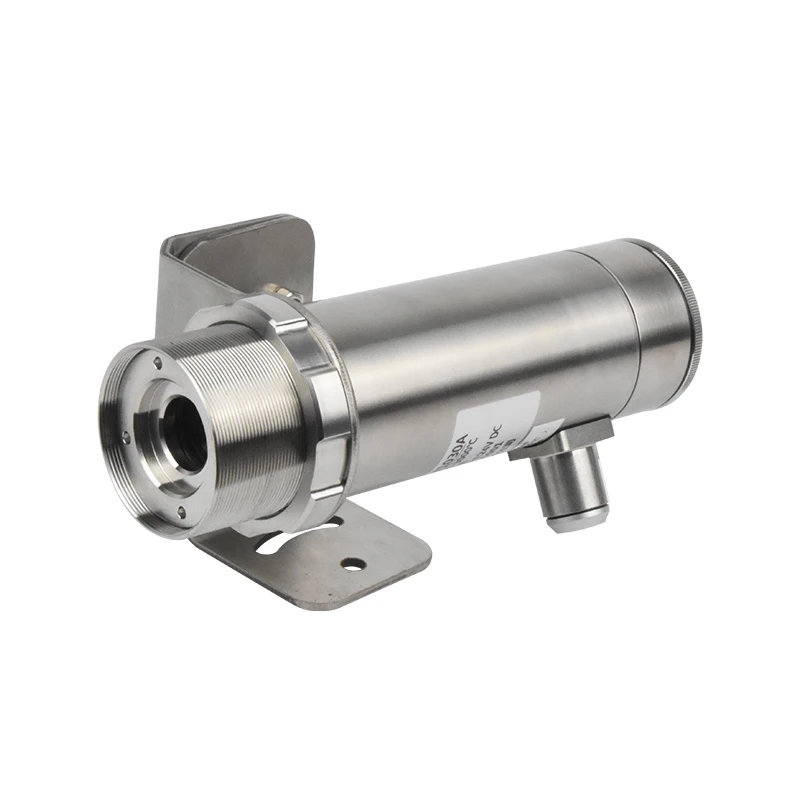

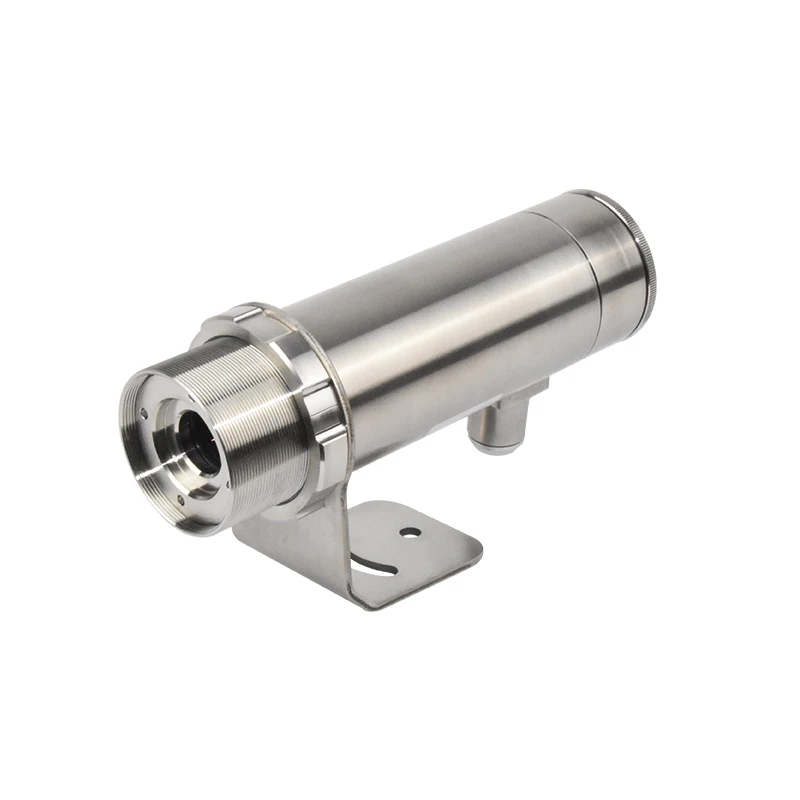

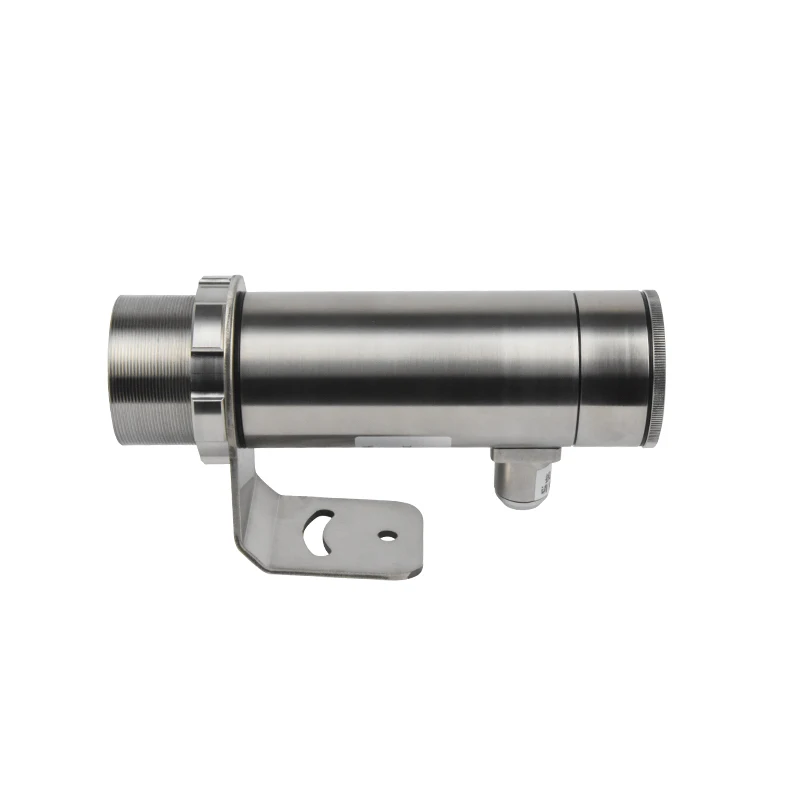

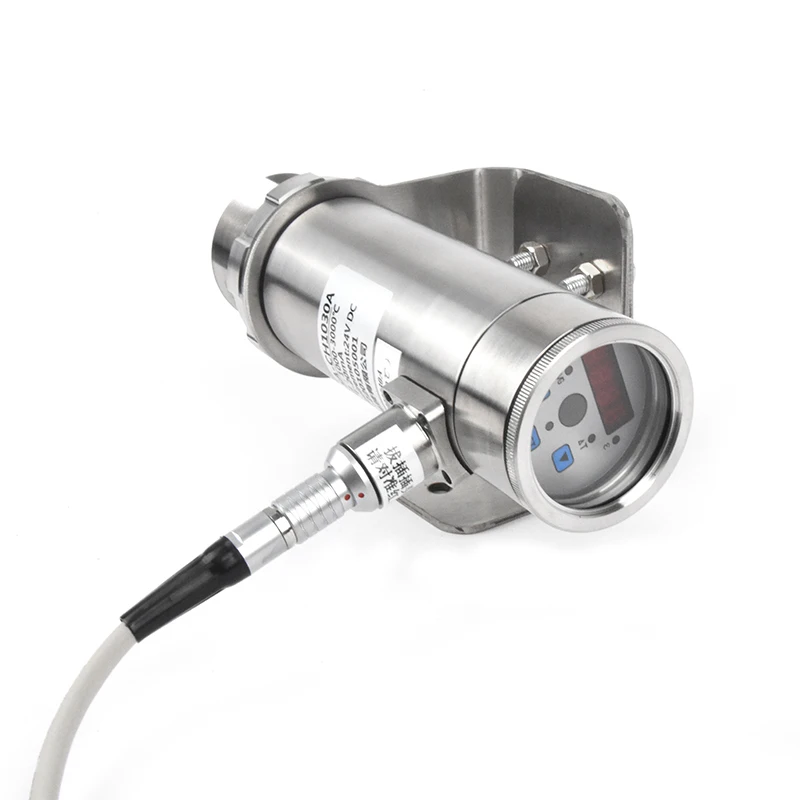

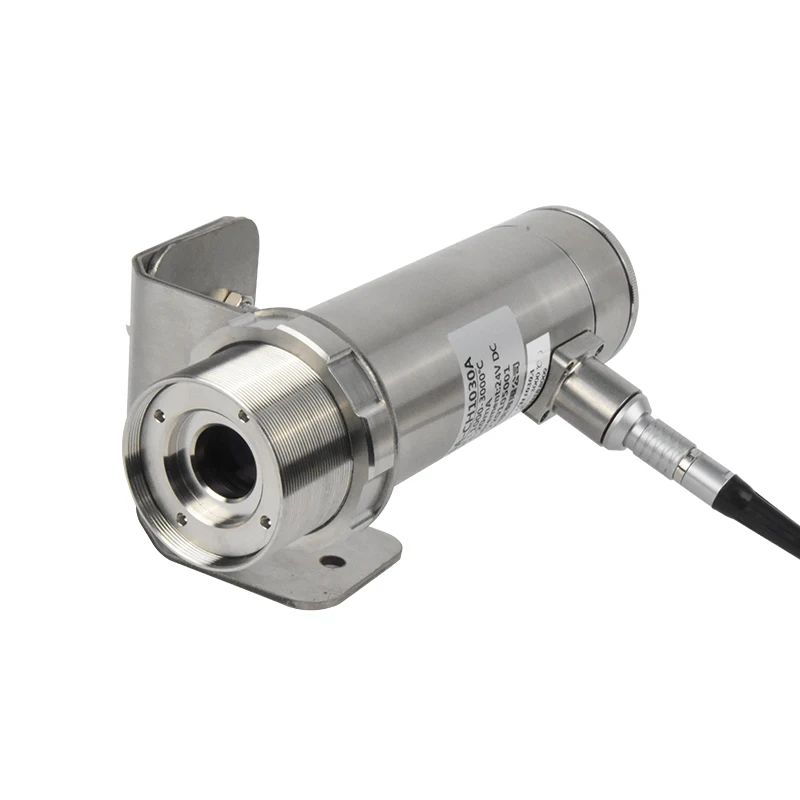

JSD-CH0532 Non-Contact Infrared Thermometer Sensor
500℃ ~ 3200℃ Range | Online Temperature Measurement | Plastic Material | OEM/ODM Customization Support
The JSD-CH0532 is an advanced non-contact infrared thermometer sensor designed for high-precision temperature measurement in extreme temperature ranges from 500℃ to 3200℃. This sensor is engineered for online temperature monitoring in demanding industrial environments, making it ideal for metal processing, furnace monitoring, glass production, and energy systems.
Built with durable plastic material, the JSD-CH0532 offers reliable and accurate readings, even in harsh conditions. It supports seamless integration into online systems, providing continuous, real-time temperature monitoring for enhanced operational efficiency.
This sensor is available with OEM/ODM customization, allowing you to tailor the product to meet specific industry needs, including branding and unique technical requirements.
🔥 Key Features:
Temperature range: 500℃ ~ 3200℃
Non-contact infrared measurement for safe, fast, and accurate readings
Plastic housing for durability and reliability in industrial environments
Online temperature measurement for continuous, real-time data
Ideal for high-temperature industries such as metal smelting, glass manufacturing, and energy systems
OEM/ODM customization available to meet specific needs and branding requirements
The JSD-CH0532 offers dependable, high-precision temperature sensing, making it the perfect solution for industrial applications that require accurate and continuous temperature monitoring.
Accuracy |
±1% of reading |
Repeatability |
±0.5% of reading |
Response Time |
≤20 ms |
Resolution |
1℃ |
Emissivity |
0.10～1.00 adjustable step size 0.01 |
Distance Coefficient |
400:1 |
Time Interval |
1～10S Step 1S |
Output |
4～20 mA |
Ambient Temperature |
-10℃～60℃ |
Storage Temperature |
-40℃～85℃ |
Protection Grade |
IP65 |
Size |
Length 167mm Dia. Ф50mm |
Weight |
0.6Kg; With cooler and air purge device 1.6Kg |
Power |
24V DC ±10%，100Ma |
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
